RY Series Air Cooled Hot Oil Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

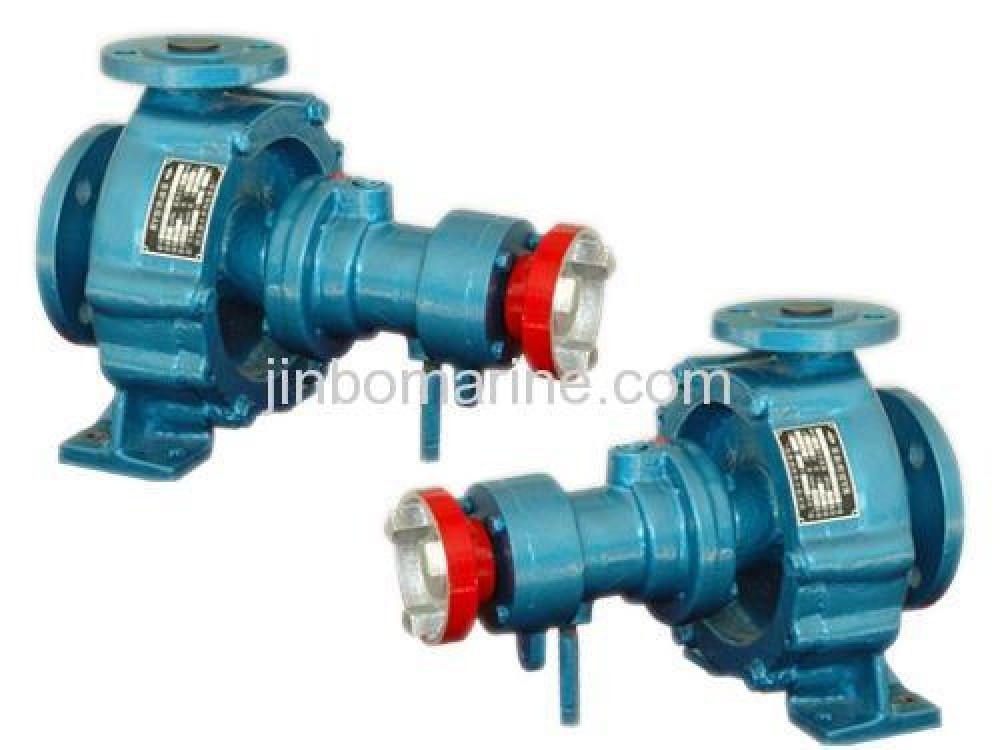

China RY Series Air Cooled Hot Oil Pump:

Type RY air-cooled hot oil pump is the energy conservation production designed and manufactured on the standard GB5662.

With scientific construction and fine capacity, it is used in transporting high temperature liquid without solid particles. And the degree of corrosion resisting and working temperature is depended on the material of the main parts which connected with the medium.

Main Specification

Type Capacity Head Speed Power(kw) Efficiency Motor
m3/h m r/min Shaft Power Equiped Power η%
15-15-100 3 10 2800 0.45 0.75 20 801
15-15-100A 2 10 2800 0.36 0.55 18 AO2-7122
15-15-100B 1 10 2800 0.2 0.37 15 AO2-7112
20-20-100 1 10 2800 0.09 0.37 26 AO2-7112
20-20-125 1.5 22 2800 0.22 0.75 30 801
40-25-160 10 28 2900 1.72 2.2 45 90L
25-25-160 3 27 2900 0.53 1.5 30 90S
32-32-160 6 28 2900 0.85 1.5 50 90S
50-32-160 12.5 30 2900 1.9 3 57 100L
50-32-200 18 40 2900 3.92 5.5 50 132Sl
50-32-200A 16 32 2900 3.35 4 42 112M
50-32-250 12.5 80 2900 6.2 11 44 160Ml
65-50-160 20 32 2900 3.17 5.5 55 132S1
65-40-200 30 48 2900 6.3 7.5 62 132S2
65-40-200A 25 35 2900 4 5.5 59 132S1
65-40-250 25 80 2900 10.3 15 53 160M2
65-40-250A 20 51 2900 5.67 7.5 49 132S2
65-40-315 25 125 2900 18.9 30 45 200L1
65-40-315A 22.5 100 2900 15.3 22 40 180M
80-50-200 50 50 2900 9.7 15 70 160M2
80-50-200A 45 40 2900 7.8 11 63 160M1
80-50-200B 40 32 2900 6.37 7.5 55 132S2
80-50-250 50 80 2900 17.1 22 58 180M
80-50-250A 43 60 2900 12.8 15 55 160M2
80-50-315 50 125 2900 30.4 45 56 225M
80-50-315A 45 100 2900 23.6 30 52 200L1
100-65-200 100 50 2900 18.4 22 74 180M
100-65-200A 94 44 2900 16 22 70 180M
100-65-200B 87 38 2900 13.8 15 65 160M2
100-65-200C 80 32 2900 11.8 15 59 160M2
100-65-250 100 80 2900 32.06 37 68 200L2
100-65-250A 95 72 2900 29 37 64 200L2
100-65-250B 90 65 2900 26.2 30 61 200L1
100-65-250C 85 50 2900 20.3 30 57 200L1
100-65-315 100 125 2900 50.06 75 68 280S
100-65-315A 95 113 2900 45.23 55 64.63 250M
100-65-315B 90 100 2900 40.5 55 60.5 250M
100-65-315C 82 84 2900 34.76 45 54 225M
125-100-200 200 50 2900 35.4 45 77 225M
125-100-200A 178 40 2900 26.6 37 73 200L2
125-100-250 200 70 2900 47 55 80 250M
125-100-250A 190 63 2900 41.6 55 78 250M
125-100-250B 180 57 2900 37.9 45 74 225M
125-100-250C 170 51 2900 32.15 45 72 225M
125-100-250D 150 70 2900 40 45 70 225M
150-150-200 350 50 2900 60 75 80 280S
150-150-200A 313 40 2900 45 55 76 250M
200-150-400 350 50 1450 61.8 75 78 280S
200-150-400A 330 45 1450 52.8 75 77 280S
250-200-400 500 50 1480 86.2 110 79 315S
250-200-500 500 80 1480 136 160 76.5 315M
250-200-500A 400 50 1480 75 90 73 280M
