Samson Wire Rope Blocks 3

Request a Quote Not what you need, please send your RFQs via Email.

Details

Drawing:

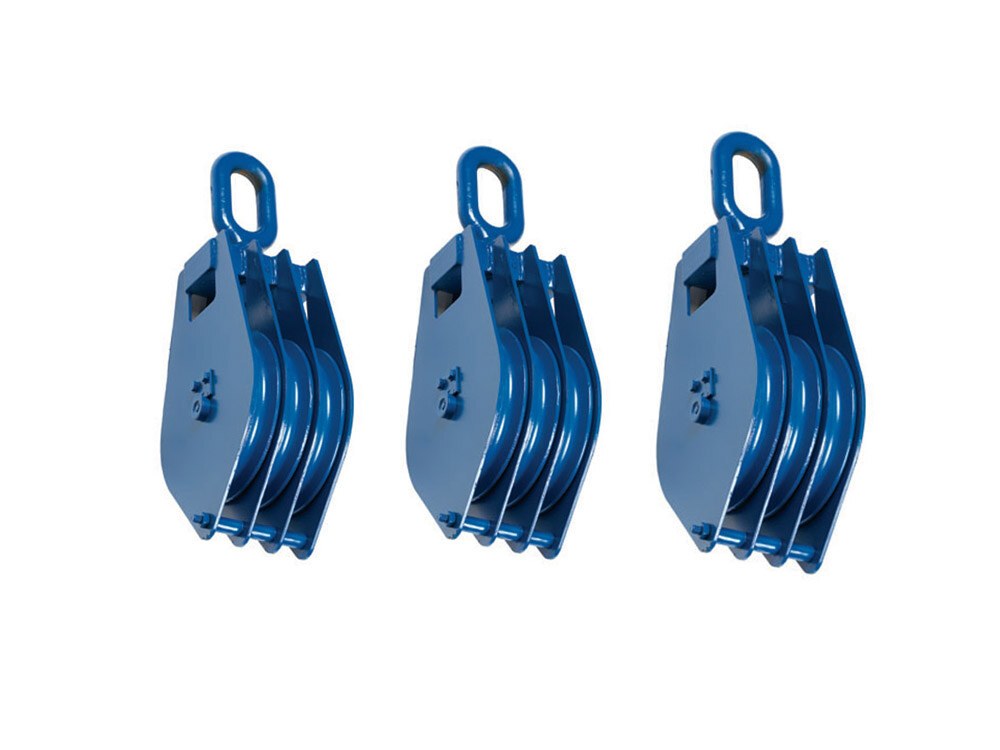

Picture:

Specification:

stock no. will(t) wire up to (mm) no.of sheave dimensions(mm) weight(kg)
D1 D2 F ΦG ΦJ K L M R TA TB TL
11.125.02.30 2 10 3 125 105 27 22 16 26 58 24 5.5 135 120 336 9
11.150.04.30 4 12 3 150 120 40 30 26 40 94 33 6.5 170 166 468 17
11.200.06.30 6 14 3 200 165 40 30 29 45 108 42 7.5 220 166 556 28
11.250.08.30 8 18 3 250 210 45 35 32 49 114 45 9.5 270 185 633 46
11.300.10.30 10 20 3 300 255 50 40 36 54 125 52 11 320 204 733 69
11.350.12.30 12 22 3 350 305 50 45 41 60 144 56 12 380 212 823 99
11.350.16.30 16 24 3 350 305 60 50 46 66 163 64 13 380 258 880 120
11.400.16.30 16 24 3 400 345 60 50 46 66 163 64 13 430 250 927 157
11.350.20.30 20 24 3 350 305 60 50 51 72 173 72 13 380 258 896 143
11.400.20.30 20 24 3 400 345 60 60 51 72 173 72 13 430 266 1006 184
11.350.25.30 25 24 3 350 305 60 50 60 80 195 76 13 380 26 955 170
11.400.25.30 25 24 3 400 345 60 60 60 80 195 76 13 430 266 1065 198
11.450.25.30 25 28 3 450 390 70 70 60 80 195 76 15 480 296 1120 220
11.400.30.30 30 28 3 400 345 60 60 60 90 220 80 15 430 266 1095 215
11.450.30.30 30 28 3 450 390 70 70 60 90 220 80 15 480 296 1140 255
11.400.40.30 40 28 3 400 345 60 60 - 96 96 90 15 430 278 945 250
11.450.40.30 40 28 3 450 390 70 70 - 96 96 90 15 480 308 1030 295
11.450.50.30 50 28 3 450 390 70 75 - 106 106 100 15 480 338 1055 335

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery:

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
