SBL65 Model Semi-Auto Filter
It can be without stand A,with four bolts C connecting to the outside,the inlet and the outlet are in the bottom of the machine,the inlet is in the front and the outlet is at the back.
The two holes in the handle position near the stand are both inlets,the other two holes are outlets.While the inlets and outlets are installed,they are chosen at will,the other inles and outlets shoule be sealed with flange.

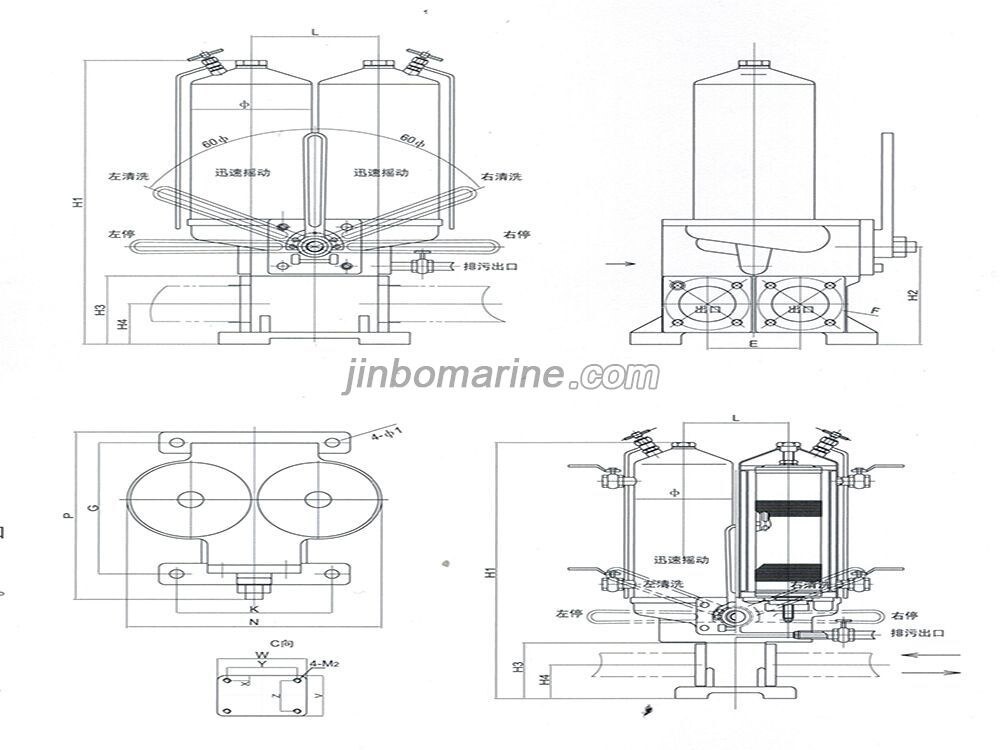

SBL65 Model Semi-Auto Filter Structure Diagram
SBL65 Model Semi-Auto Filter Technical Parameters
Model | Flow(reference³/h) | Caliber and jointing size(mm) | Overall size(mm) | Installing size(mm) | Weight(kg) | |||||||||||||||||||
DN | E | F | M1 | H1 | H2 | H3 | H4 | L | ᵩ | N | P | G | K | 4-ᵩ | X | W | V | Y | Z | 4-M2 | ||||
SBL50 | 10-25 | 50 | 120 | 110 | M12 | 595 | 209 | 142 | 86 | 165 | 155 | 330 | 320 | 258 | 136 | 4-ᵩ22 | 16 | 150 | 115 | 110 | 78 | 4-ᵩ12 | 67 | |
SBL65 | 25-30 | 65 | 670 | 71 | ||||||||||||||||||||
SBL80 | SBL80 I | 25-40 | 80 | 146 | 132 | M16 | 740 | 247 | 172 | 102 | 200 | 190 | 400 | 384 | 334 | 244 | 26 | 200 | 145 | 160 | 100 | 4-M16 | 131 | |
SBL80 II | 35-50 | 840 | 140 | |||||||||||||||||||||
SBL100A | 40-80 | 100 | 162 | 152 | M16 | 890 | 247 | 192 | 112 | 200 | 190 | 400 | 384 | 374 | 244 | 26 | 200 | 145 | 160 | 100 | 150 |
