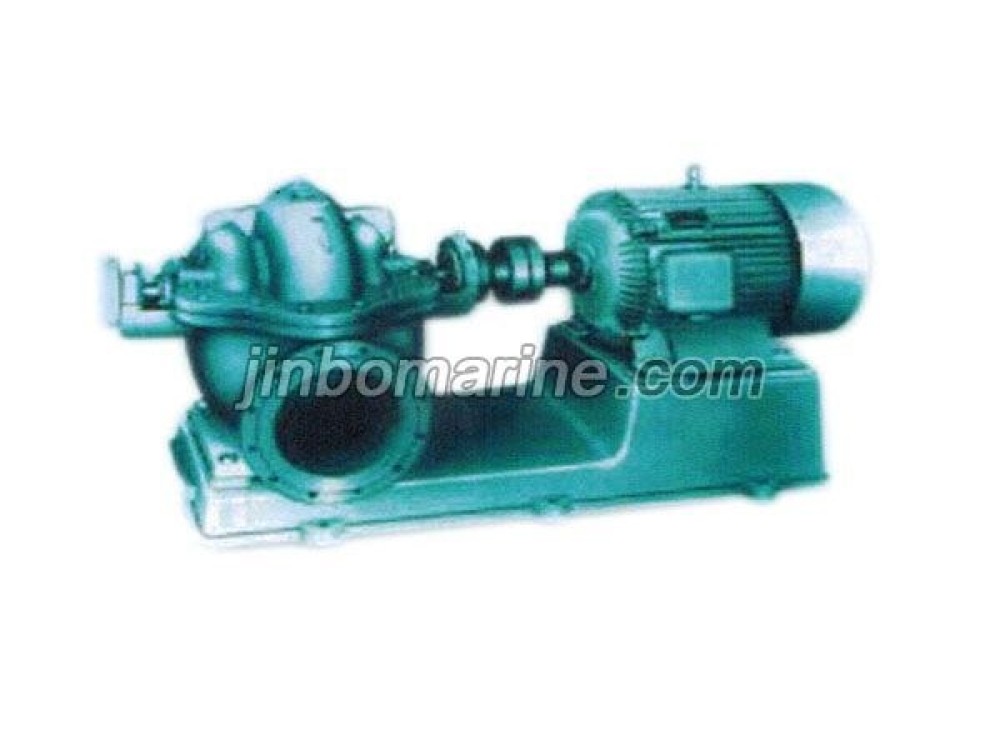

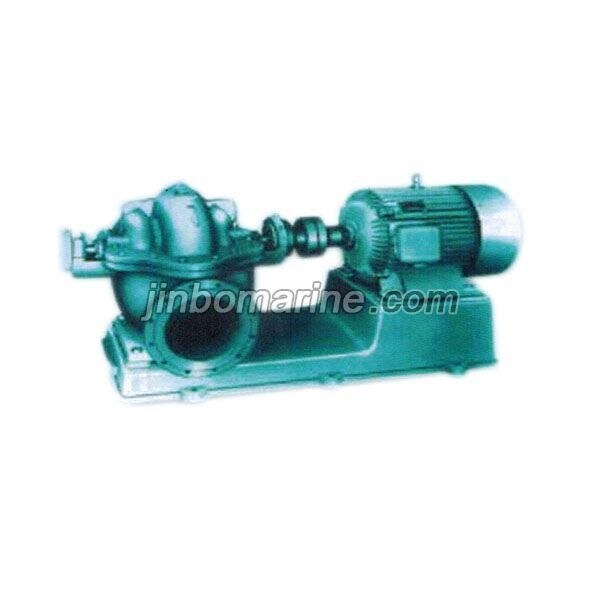

SC Series Marine Double-suction Single-stage Centrifugal Pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China SC Series Marine Double-suction Single-stage Centrifugal Pump:
Model SC pump is a double-suction,single-stage,horizontal-split centrifugal pump.It has the advantage of simple structure and reliable work. The inlet and outlet locate at the same horizontal line. So the pump can be easily inspected with removal of the pump cover when repaired. Two bearing assemblies adopted ball bearing lubricated by grease are supplied for the pump,in which the shaft seal is high function mechanical seal.
The flow rate of SC series pumps is 100-10000m³/h and the lift is 9-120m. They are used for delivering fresh water,sea water and other liquids similar to water in physical and chemical qualities. The temperature of the liquids should respectively. The shaft of pump is made of stainless steel and the vane weel is made of copper. It can also be made up electric pump set with motor. It is used to shipping ballast,fire fighting, cooling system,and it also can used to dry dock control,drainage and irrigation,etc. Thermal power plant can also use it is circulating pump.
Main Technical Data | ||||
Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
SC150-78 | 126/162/198 | 84/78/70 | 2900 | 55 |
SC150-78A | 112/144/180 | 67/62/55 | 2900 | 45 |
SC150-50 | 130/170/220 | 53/50/35 | 2900 | 37 |
SC150-50A | 120/144/180 | 43.8/40/30 | 2900 | 30 |
SC200-95 | 180/234/288 | 100/95/82.5 | 2900 | 110 |
SC200-95A | 160/215/265 | 85.1/75.6/70.2 | 2900 | 90 |
SC200-63 | 213/288/351 | 69/63/50 | 2900 | 75 |
SC200-63A | 180/270324 | 54.5/46/37.5 | 2900 | 55 |
SC200-42 | 216/288/342 | 48/36/31 | 2900 | 45 |
SC200-42A | 198/270/310 | 71/65/56 | 2900 | 37 |
SC250-65 | 360/486/612 | 61/54/50 | 2900 | 132 |
SC250-65A | 342/414/482 | 42.5/39/32.5 | 1450 | 110 |
SC250-39 | 360/486/576 | 27/24/19 | 1450 | 75 |
SC250-39A | 320/432/504 | 22.2/20.3/17.4 | 1450 | 55 |
SC250-24 | 590/792/972 | 17.5/14/11 | 1450 | 45 |
SC250-24A | 530/720/893 | 13.7/11/8.6 | 1450 | 37 |
SC250-14 | 504/684/835 | 98/90/82 | 1450 | 30 |
SC250-14A | 612/792/935 | 86/78/70 | 1450 | 22 |
SC300-90 | 504/720/900 | 72/67/57 | 1450 | 300 |
SC300-90A | 611/792/900 | 65/58/50 | 1450 | 260 |
SC300-90B | 522/685/792 | 55/49/42 | 1450 | 250 |
Alao have bigger pumps, pls contact us for more information. |
