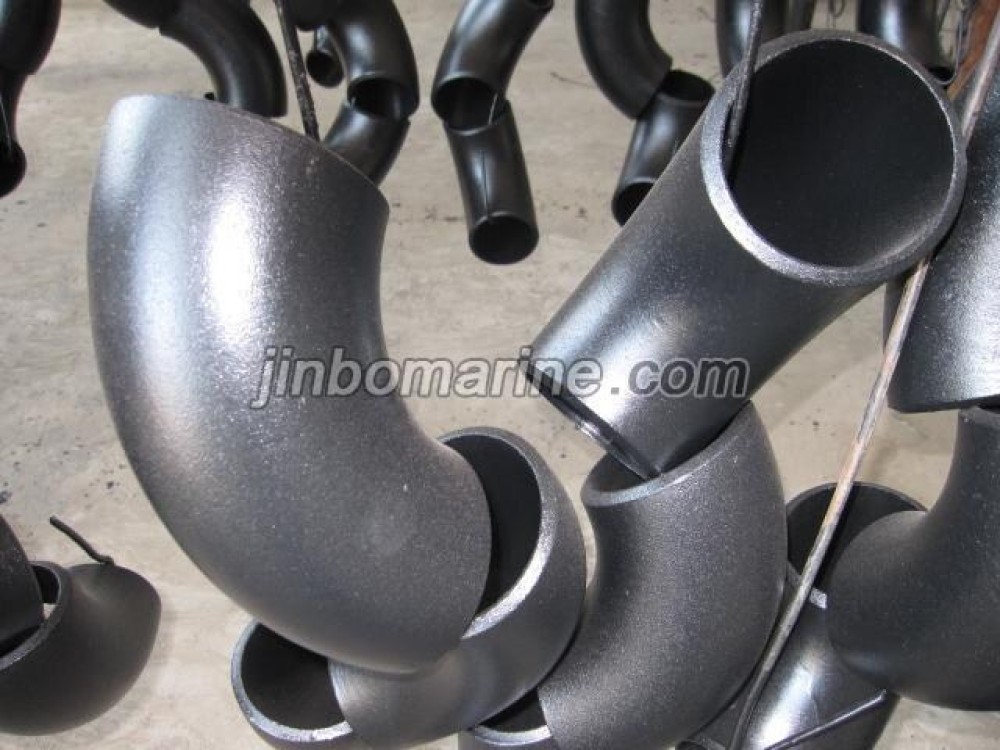

Schedule 80 Black Butt Welded Elbow
- Category:Elbow
- Material:Carbon steel:ASTM/ASME A234 WPB,WP5,WP9,WP11,Q235,20#,10#,Q345,ST37.0,ST35.8,ST37.2,ST35.4/8,ST42,ST45,ST52,ST52.4,STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49 etc
- Standards:ASME/ANSI B16.9,ASME/ANSI B16.28,JIS B2313/2311/2312,MSS SP-97,HGJ514,HGJ529,GB12459-2005,SY/T0510-1998 etc
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Pipe elbows are mainly used for connecting two pipes or tubes,allowing a change of direction.
Tee Fittings are used to either combine or
split fluid flow. They are also used to connect pipes of different diameters or
for changing the direction of pipe runs.
Reducer pipe fitting to reduce the diameter of the suction piping to fit the
pump intake, thus used to join two pipes of different sizes.
Caps are used to cover the outside end of a black pipe.Regular Cored Plugs have male threaded ends for closing the end of a pipe. The plug inserts into female pipes or fittings that contain male NPT threads.
Schedule 80 steel black butt-welded elbow,bend,tee,reducer,cap
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER | WALL THICKNESS | |||
| A | B | ASME | JIS | DIN | SCH80 |
| 15 | 1/2" | 21.3 | 21.7 | 21.3 | 3.73 |
| 20 | 3/4" | 26.7 | 27.2 | 26.9 | 3.91 |
| 25 | 1" | 33.4 | 34 | 33.7 | 4.55 |
| 32 | 1.1/4" | 42.2 | 42.7 | 42.4 | 4.85 |
| 40 | 1.1/2" | 48.3 | 48.6 | 48.3 | 5.08 |
| 50 | 2" | 60.3 | 60.5 | 60.3 | 5.54 |
| 65 | 2.1/2" | 73 | 76.3 | 76.1 | 7.01 |
| 80 | 3" | 88.9 | 89.1 | 88.9 | 7.62 |
| 90 | 3.1/2" | 101.6 | 101.6 | _ | 8.08 |
| 100 | 4" | 114.3 | 114.3 | 114.3 | 8.56 |
| 125 | 5" | 141.3 | 139.8 | 139.7 | 9.53 |
| 150 | 6" | 168.3 | 165.2 | 168.3 | 10.97 |
| 200 | 8" | 219.1 | 216.3 | 219.1 | 12.7 |
| 250 | 10" | 273 | 267.4 | 273 | 15.09 |
| 300 | 12" | 323.8 | 318.5 | 323.9 | 17.48 |
| 350 | 14" | 355.6 | 355.6 | 355.6 | 19.05 |
| 400 | 16" | 406.4 | 406.4 | 406.4 | 21.44 |
| 450 | 18" | 457.2 | 457.2 | 457 | 23.83 |
| 500 | 20" | 508 | 508 | 508 | 26.19 |
| 550 | 22" | 558.8 | 558.8 | _ | 28.58 |
| 600 | 24" | 609.6 | 609.6 | 610 | 30.96 |
| 650 | 26" | 660.4 | 660.4 | _ | _ |
| 700 | 28" | 711.2 | 711.2 | 711 | _ |
| 750 | 30" | 762 | 762 | _ | _ |
| 800 | 32" | 812.8 | 812.8 | 813 | _ |
| 850 | 34" | 863.6 | 863.6 | _ | _ |
| 900 | 36" | 914.4 | 914.4 | 914 | _ |
| 950 | 38" | 965.2 | 965.2 | _ | _ |
| 1000 | 40" | 1016 | 1016 | 1016 | _ |
| 1050 | 42" | 1066.8 | 1066.8 | _ | _ |
| 1100 | 44" | 1117.6 | 1117.6 | _ | _ |
| 1150 | 46" | 1168.4 | 1168.4 | _ | _ |
| 1200 | 48" | 1219.2 | 1219.2 | 1220 | _ |
