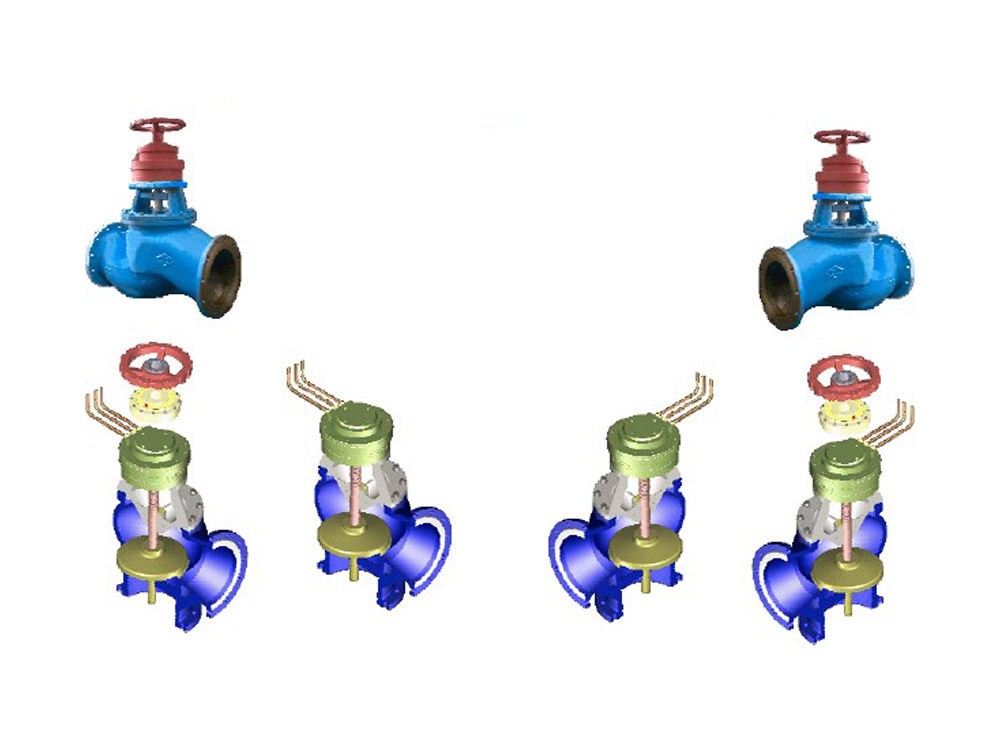

Screw-down Valve Control System
- Category:Marine Conservation
- Supply Ability:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

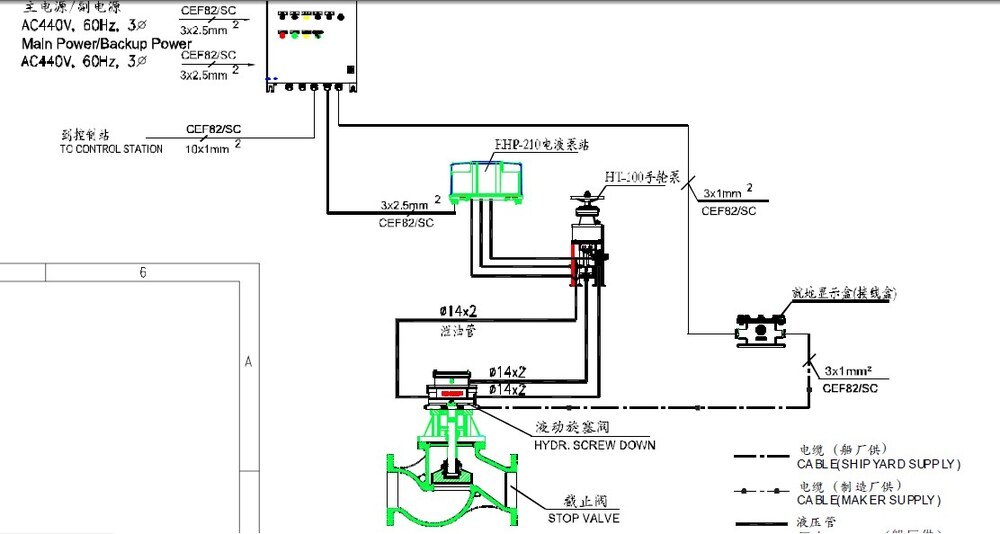

China Screw-down Valve Control System:
In accordance with SOLAS, the valve operation mechanism of Fore Peak Ballast Tanker inner side
Installed Screw-down valve is changed from previous piston type and/or rack & pinion liner type to screw down type. The multi-turn hydraulic actuator is our company s independent research and development of such functional production. The device can be working in the condition of salt spray, mist, mold, shock, vibration and other working environment.
Installed Screw-down valve is changed from previous piston type and/or rack & pinion liner type to screw down type. The multi-turn hydraulic actuator is our company s independent research and development of such functional production. The device can be working in the condition of salt spray, mist, mold, shock, vibration and other working environment.
Technical Specification
Valve body material: QT50-10
Piston material: 40Cr
Working pressure: 8~12MPa
Max pressure: 36MPa
Discharge: 0.598L/r
Pipe connection: Φ10, Φ12, Φ16
Valve position indication type: Open/close
Environmental temperature: -40℃~+120℃
