SD Type JIS B2801 Straight Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

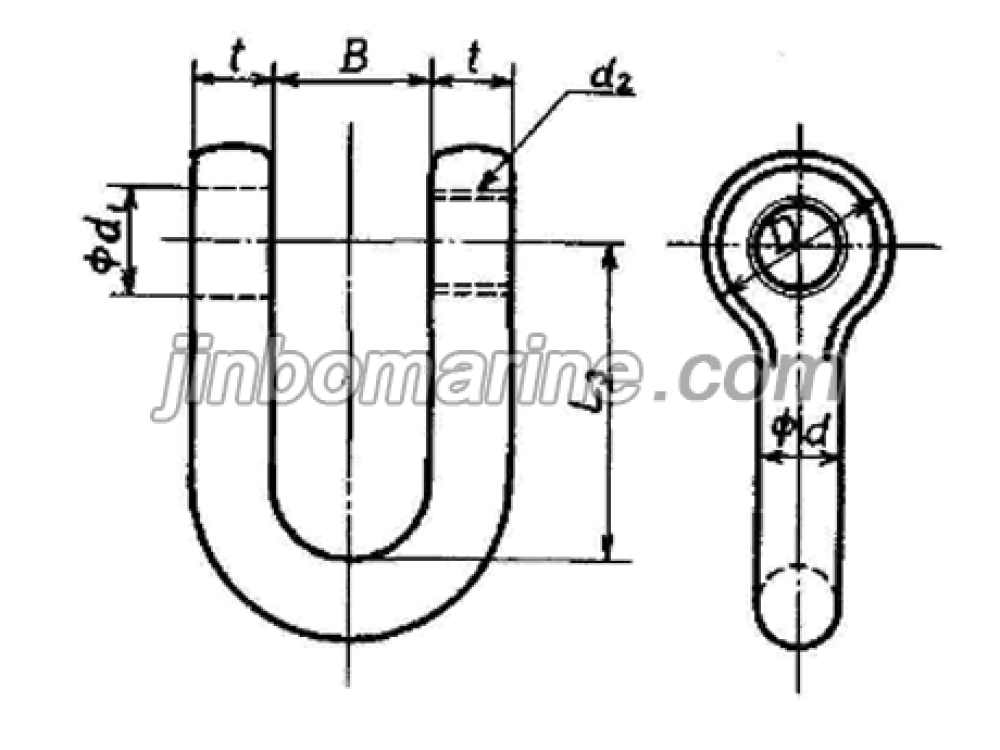

SD Type JIS B2801 Straight Shackle Specification

Nominal Size t d B D d1 L Weight(kgs)
10 10 10 20 23 13 40 0.57
12 12 12 24 28 16 48 0.66
14 14 14 28 32 18 56 1.75
16 16 16 32 36 21 67 1
20 20 20 40 44 25 80 1.58
22 22 22 44 50 28 88 1.74
24 24 24 48 56 30 96 1.89
26 26 26 52 62 33 104 2.37
28 28 28 56 65 35 112 3.1
30 30 30 60 70 37 120 34.19
34 34 34 68 80 43 135 6.3
38 38 38 76 85 46 152 8.44
40 40 40 80 92 49 160 9.65
42 42 42 84 100 53 168 11.26
48 48 48 96 110 60 192 16.69
52 52 52 104 120 64 208 20.15
58 58 58 116 132 70 232 25.27

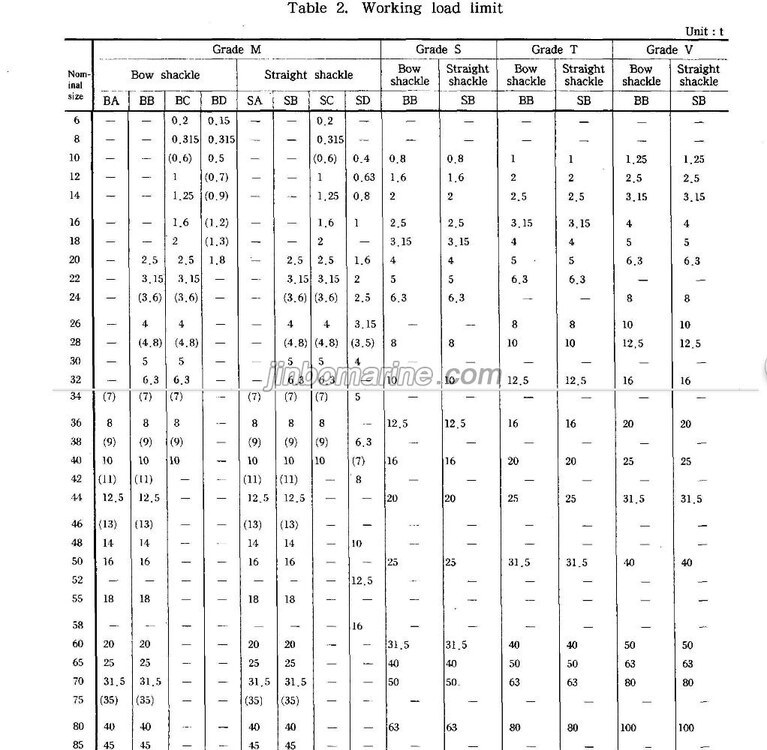

JIS F B2801 Shackle Work Load Limit
