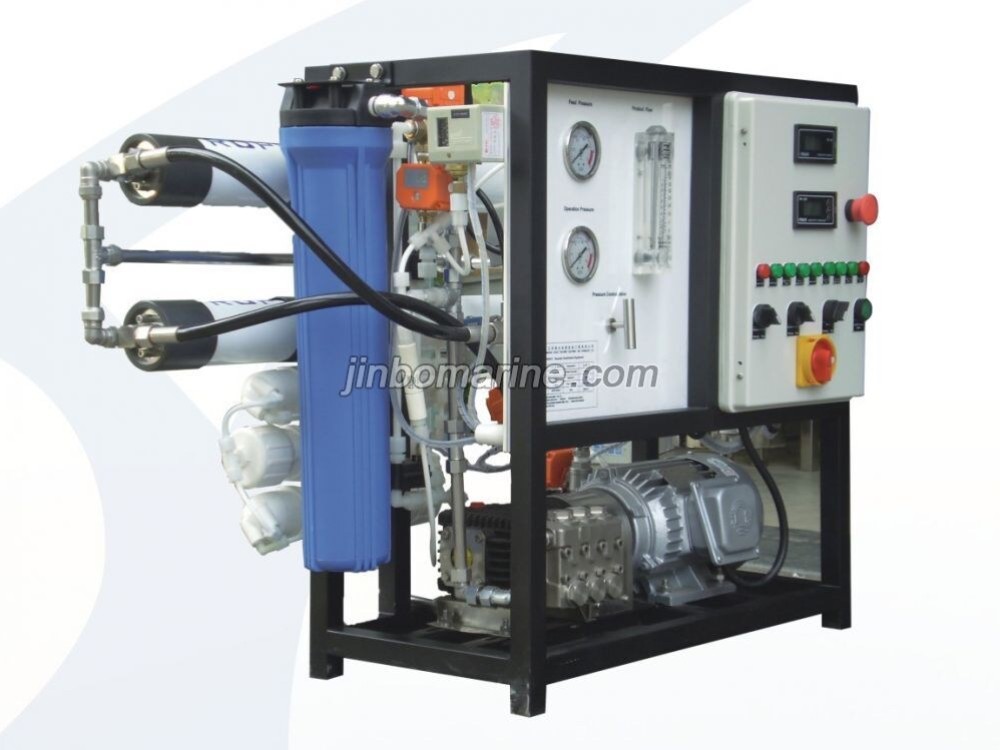

Seawater desalination equipment
- Category:Water Treatment Equipment
- Certificate:CCS BV ABS GL
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description
It enables to treat seawater and brackish water meet to the World Health Organization ( W H 0 )
drinking water standard with high quality, it is fit for yacht. fishery. Oceanship, Island and other poor water area.
It adopts reverse osmosis membrane isolation technology for seawater desalination, widely
recognized and most advanced international technology.The series of CFHD equipment uses the best spare parts from abroad. The technical process and the operational parameter have been specially designed by computer.
The desalination process works effectively under normal temperature environment. So it is cost save and lower power consumption.
We have been taken into consideration for ship design. Compact size, lightweight, easy installation and system reliability, it can be installed in ship cabin, deck and aisle space. Frame and pipeline are made of 316 stainless steel and anticorrosive materials.
It can produce fresh water as long as supplied the electricity and seawater.
Our products adopt the unique patent technology: manual / electric desalination equipment, and filter replacement under the normal working of the small sized desalination equipment.
Our products adopt the international best quality American DOW RO membrane for seawater desalination. The membrane has a high desalting rate, safe and reliable performance. The RO high pressure pump adopts the international brand pump of seawater desalination and high l low pressure protection device to assure it reliable. Produce water quality meets the National drinking water standard. (GB574985), without any chemical and can be drunk directly, it tastes well.
Technical Data
| Model |
Output capacity(m3/h) |
Operational pressure(Mpa) | Electric source | Dimension | Remark | ||
| pretreatment | membrane system | voltage(v) | Power(kw) | ||||
| CFHD-1 | 0.05 | 0.1-0.3 | 4-6.5 | 220/380 | 1.5 | 580*440*1600 | Vertical |
| CFHD-2 | 0.1 | 0.1-0.3 | 4-6.5 | 220/380 | 1.5 | 580*440*1600 | Vertical |
| CFHD-3 | 0.15 | 0.1-0.3 | 4-6.5 | 220/380 | 1.5 | 580*440*1600 | Vertical |
| CFHD-5 | 0.25 | 0.1-0.3 | 4-6.5 | 220/380 | 2.2 | 650*440*1600 | Vertical |
| CFHD-10 | 0.5 | 0.1-0.3 | 4-6.5 | 380 | 4.5 | 950*600*1800 | Vertical |
| CFHD-20 | 1 | 0.1-0.3 | 4-6.5 | 380 | 7.5 | 2500*700*1200 | Horizontal |
| CFHD-50 | 2.5 | 0.1-0.3 | 4-6.5 | 380 | 22 | 2500*1200*1700 | Horizontal |
| CFHD-100 | 5 | 0.1-0.3 | 4-6.5 | 380 | 40 | 3400*1500*1800 | Horizontal |
| CFHD-200 | 10 | 0.1-0.3 | 4-6.5 | 380 | 80 | 3400*2000*1800 | Horizontal |
