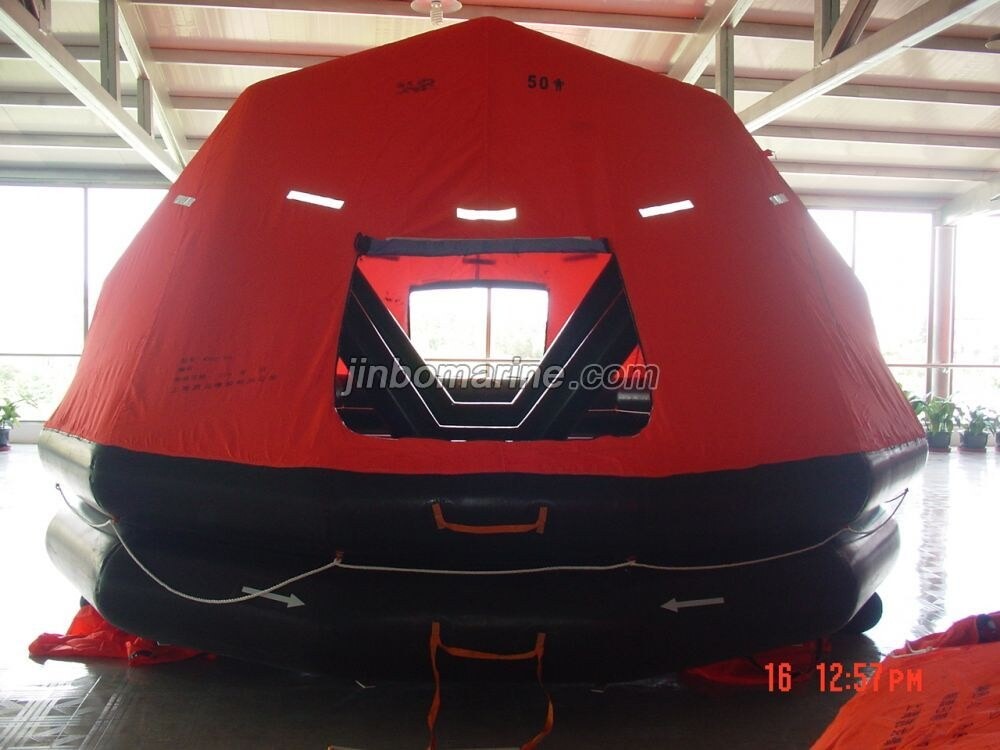

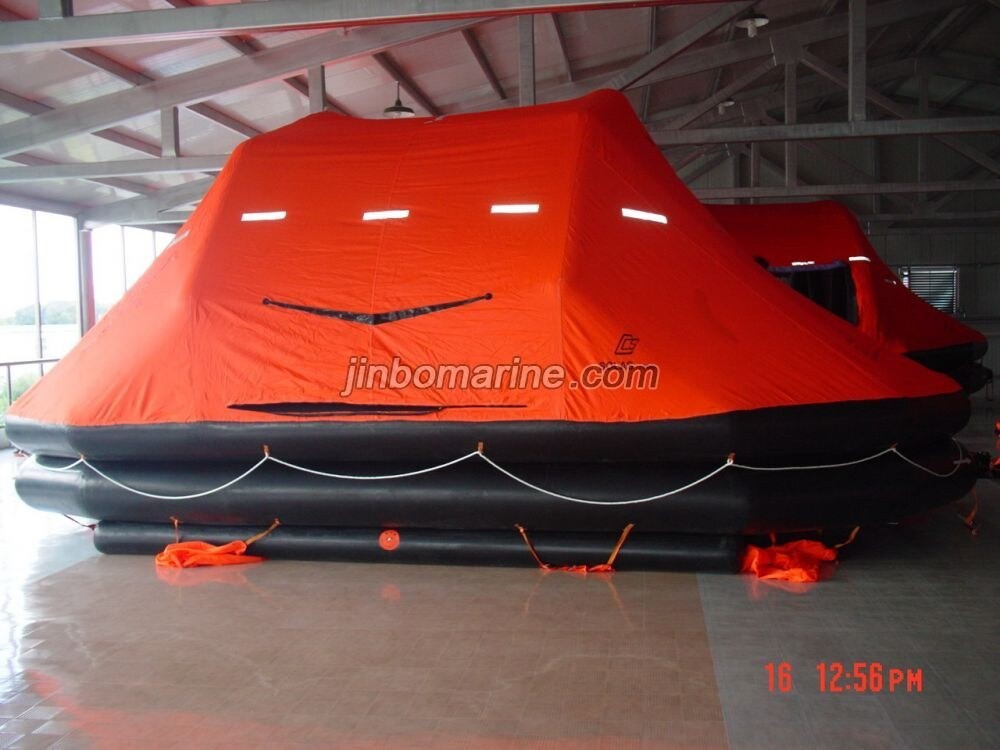

Self-Righting Inflatable Liferafts
- Category:Life Raft
- Certificate:CCS,EC
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Appliance Scope:
Lifesaving for the ship’s passengers in international voyage.
Available Model:
| Type | KHZ-6 | KHZ-10 | KHZ-15 | KHZ-20 | KHZ-25 | KHZ-50 | KHZ-100 | KHZ-110 | KHZ-125 | |
| Physical form |
rectangular octagon |
rectangular octagon |
rectangular octagon |
rectangular octagon |
rectangular octagon |
rectangular dodecagon |
rectangular dodecagon |
rectangular dodecagon |
rectangular dodecagon |
|
| Capacity | 6 | 10 | 15 | 20 | 25 | 50 | 100 | 110 | 125 | |
| Length (mm) ，±1000 | 2800 | 3510 | 4300 | 4900 | 5300 | 7311 | 11060 | 11550 | 12000 | |
| Width (mm)，±1000 | 1660 | 2000 | 2400 | 2700 | 3100 | 4240 | 5260 | 5600 | 6100 | |
| Height (mm)，±50 | 1500 | 1700 | 2050 | 2250 | 2350 | 3000 | 3250 | 3450 | 3650 | |
| Pack | Dia (mm) | 615 | 670 | 690 | 730 | 745 | 895 | 1050 | 1050 | 1050 |
| Length (mm) | 1095 | 1135 | 1285 | 1440 | 1485 | 2095 | 2400 | 2400 | 2400 | |
| Weight，kg ≤ | 85 | 114 | 142 | 185 | 212 | 445 | 780 | 860 | 920 | |
