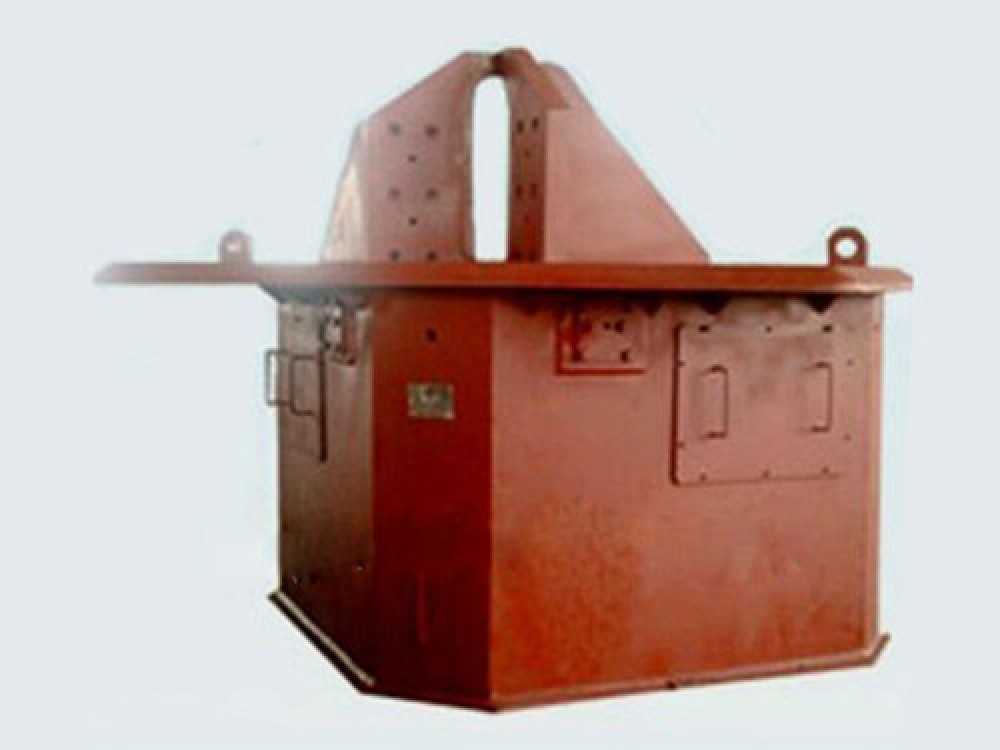

Shark Jaw
- Category:Marine Quick Release Hook
- Certificate:ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Shark Jaw:
It applies to lead hawser for mooring ships.
Can be made from cast steel,cast iron or other material.
Compact design and precision machined.
Certificate:ABS,BV,CCS etc.
Feature:
1.Excellent quality.
2.Competitive price .
3.Durable, long lifetime.
4.Certificate: CCS BV ABS.
Remark:
1. Test work load: 2350 KN
2. Chain breaking load: 2940 KN
3. Working pressure: 18 MPa , work power: 22 Kw
4. Control: Local & wheelhouse remote control panel
5. With hydraulic pump station, the electrical box, control panel
6.Certification:CCS BV ABS etc

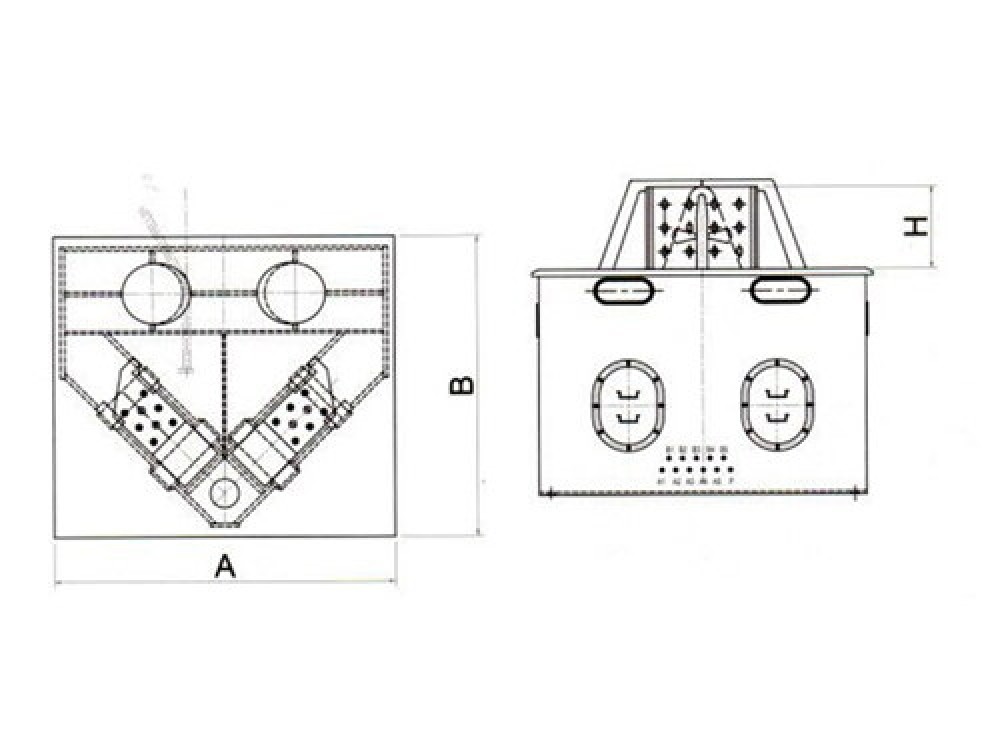

MAX | MAX | SWL | A | B | H | |
TYPE | WIRE DIA (mm) | CHAIN SIZE (mm) | (mm) | (mm) | (mm) | |
SJ-J80 | 45 | 40 | 80 | 1600 | 1500 | 400 |
SJ-J100 | 52 | 54 | 100 | 1920 | 1760 | 420 |
SJ-J200 | 72 | 78 | 200 | 2200 | 2080 | 630 |
SJ-J350 | 96 | 105 | 350 | 2750 | 2400 | 650 |
SJ-J400 | 110 | 114 | 400 | 3400 | 2620 | 700 |
