Ship Chain Cable
- Category:Anchor Chain
- Material:CM490/CM690
- Standards:Rules of International Class Society
- Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Ship Chain Cable:

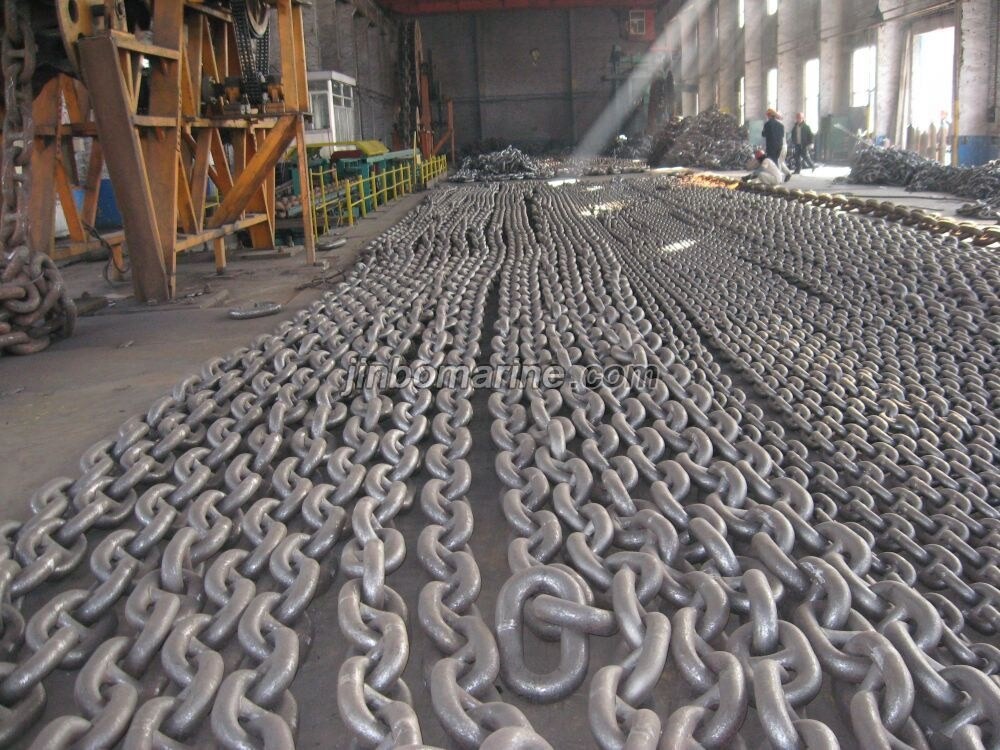

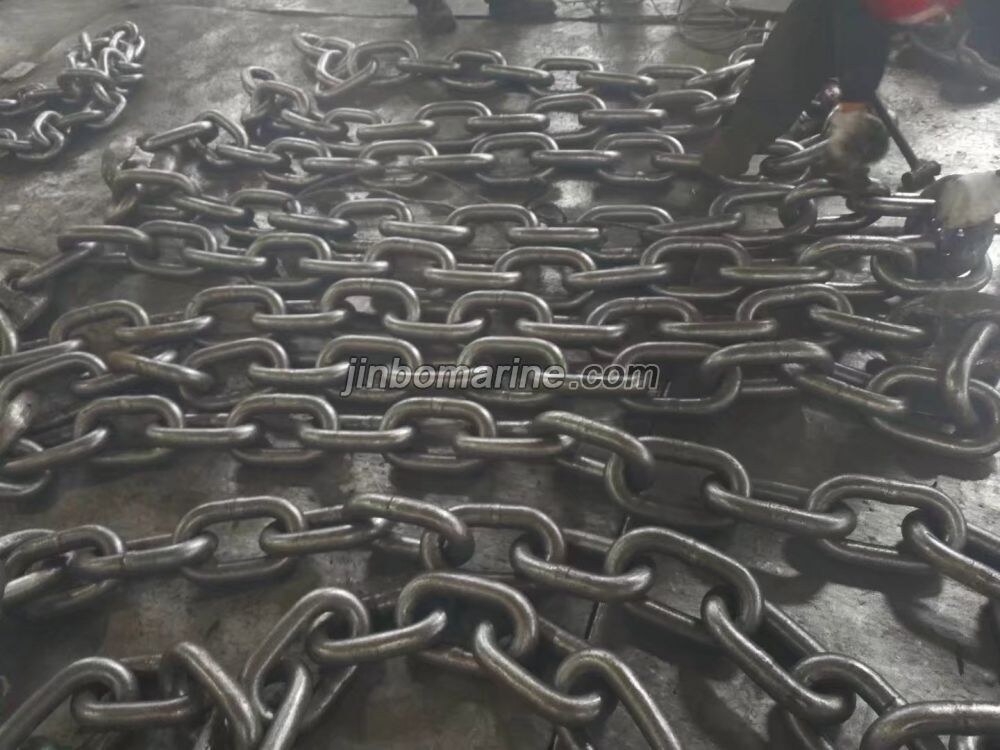

We supply all kinds of anchor chains, U2 Stud Link Anchor Chain, U3 Stud Link Anchor Chain and Open Link Anchor Chain, Kenter Shackle and End Shackle also supplied together.
Grade 2 Stud Link Anchor Chain
Grade 3 Stud Link Anchor Chain

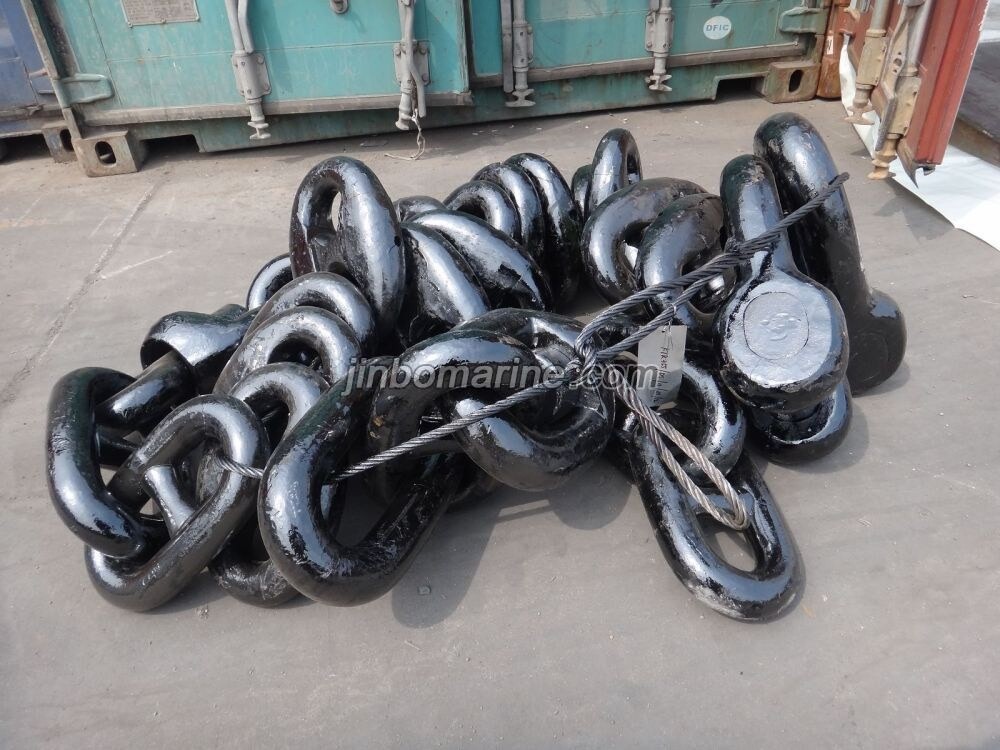

Accessories:
Kenter Shackle
End Shackle
Joining Shackle
Swivel Forerunner E+EL+SW+EL+C
3 Adaptor E+EL+C
Technical Specification:
Material: CM490/CM690
Size: 12.5mm to 132mm
Class Certificate: ABS, LR, BV, GL, DNV, RINA, NK, KR, RS and CCS
Joining Forms of Anchor Chain
Joining Shackle D type Joining Forms
| Chain Diameter mm | Proof Load | Breaking Load | Minimum Weight Kg per lenght of 27,5 m | ||
| Grade 2 kN | Grade 3 kN | Grade 2 Kn | Grade 3 kN | ||
| 12.5 | 66 | - | 92 | - | 98 |
| 14 | 82 | - | 116 | - | 119 |
| 16 | 107 | 150 | 150 | 216 | 160 |
| 17.5 | 127 | 179 | 179 | 256 | 190 |
| 19 | 150 | 211 | 211 | 301 | 225 |
| 20.5 | 175 | 244 | 244 | 349 | 265 |
| 22 | 200 | 280 | 280 | 401 | 300 |
| 24 | 237 | 332 | 332 | 476 | 360 |
| 26 | 278 | 389 | 389 | 556 | 420 |
| 28 | 321 | 449 | 449 | 642 | 490 |
| 30 | 368 | 514 | 514 | 735 | 565 |
| 32 | 417 | 583 | 583 | 833 | 635 |
| 34 | 468 | 655 | 655 | 937 | 720 |
| 36 | 523 | 732 | 732 | 1050 | 800 |
| 38 | 581 | 812 | 812 | 1160 | 895 |
| 40 | 640 | 896 | 896 | 1280 | 995 |
| 42 | 703 | 981 | 981 | 1400 | 1100 |
| 44 | 769 | 1080 | 1080 | 1540 | 1200 |
| 46 | 837 | 1170 | 1170 | 1680 | 1320 |
| 48 | 908 | 1280 | 1280 | 1810 | 1440 |
| 50 | 981 | 1370 | 1370 | 1960 | 1560 |
| 52 | 1060 | 1480 | 1480 | 2110 | 1675 |
| 54 | 1140 | 1590 | 1590 | 2270 | 1820 |
| 56 | 1220 | 1710 | 1710 | 2430 | 1935 |
| 58 | 1290 | 1810 | 1810 | 2600 | 2075 |
| 60 | 1380 | 1940 | 1940 | 2770 | 2220 |
| 62 | 1470 | 2060 | 2060 | 2940 | 2365 |
| 64 | 1560 | 2190 | 2190 | 3130 | 2550 |
| 66 | 1660 | 2310 | 2310 | 3300 | 2695 |
| 68 | 1750 | 2450 | 2450 | 3500 | 2890 |
| 70 | 1840 | 2580 | 2580 | 3690 | 3030 |
| 73 | 1990 | 2790 | 2790 | 3990 | 3290 |
| 76 | 2150 | 3010 | 3010 | 4300 | 3555 |
| 78 | 2260 | 3160 | 3160 | 4500 | 3755 |
| 81 | 2410 | 3380 | 3380 | 4820 | 4035 |
| 84 | 2580 | 3610 | 3610 | 5160 | 4395 |
| 87 | 2750 | 3850 | 3850 | 5500 | 4760 |
| 90 | 2920 | 4090 | 4090 | 5840 | 5005 |
| 92 | 3040 | 4260 | 4260 | 6080 | 5200 |
| 95 | 3230 | 4510 | 4510 | 6440 | 5570 |
| 97 | 3350 | 4680 | 4680 | 6690 | 5760 |
| 100 | 3530 | 4940 | 4940 | 7060 | 6130 |
| 102 | 3660 | 5120 | 5120 | 7320 | 6505 |
| 105 | 3860 | 5390 | 5390 | 7700 | 6885 |
| 107 | 3980 | 5570 | 5570 | 7960 | 7140 |
| 111 | 4250 | 5940 | 5940 | 8480 | 7715 |
| 114 | 4440 | 6230 | 6230 | 8890 | 8085 |
| 117 | 4650 | 6510 | 6510 | 9300 | 8445 |
| 120 | 4860 | 6810 | 6810 | 9720 | 9110 |
| 122 | 5000 | 7000 | 7000 | 9990 | 9240 |
| 124 | 5140 | 7200 | 7200 | 10280 | 9700 |
| 127 | 5350 | 7490 | 7490 | 10710 | 10040 |
| 130 | 5570 | 7800 | 7800 | 11140 | 10420 |
| 132 | 5720 | 8000 | 8000 | 11420 | 10910 |
| 137 | 6080 | 8510 | 8510 | 12160 | 11720 |
| 142 | 6450 | 9030 | 9030 | 12910 | 12515 |
| 147 | 6840 | 9560 | 9560 | 13660 | 13295 |
| 152 | 7220 | 10100 | 10100 | 14430 | 14695 |
| 157 | 7600 | 10640 | 10640 | 15200 | 15475 |
| 162 | 7990 | 11170 | 11170 | 15970 | 16210 |
