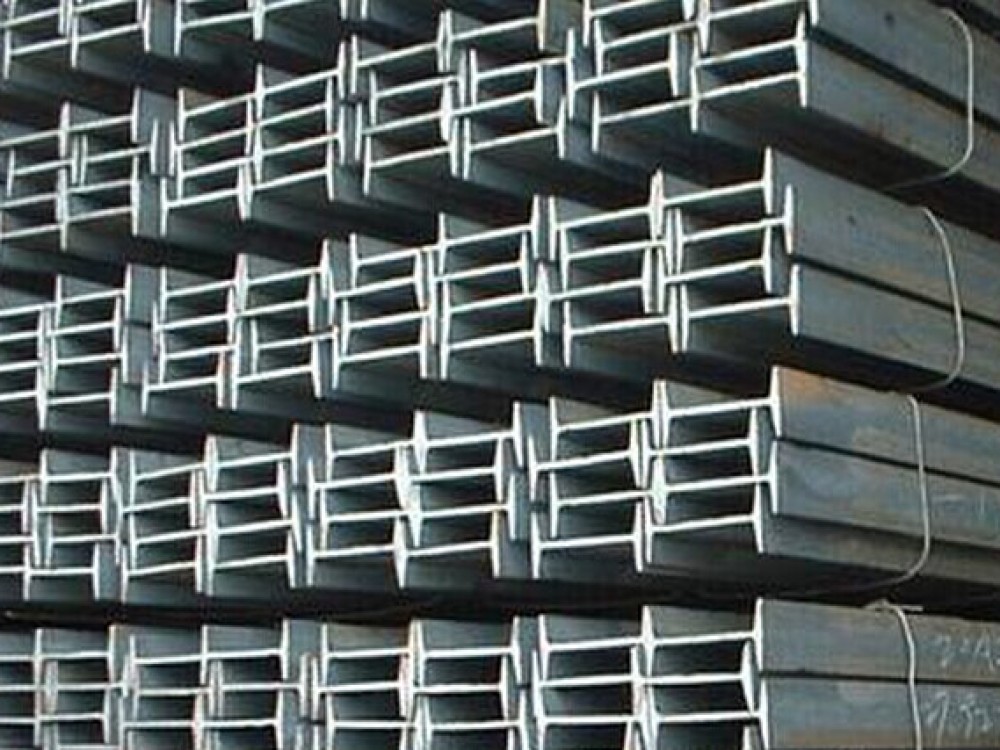

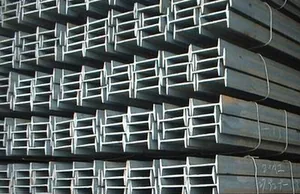

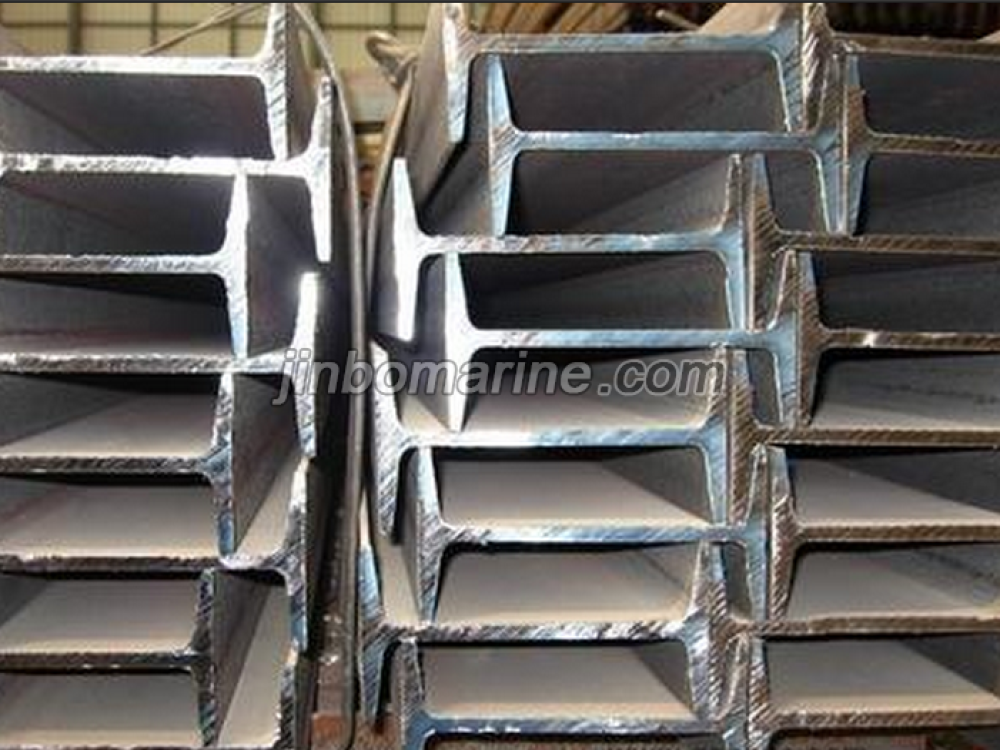

Ship I Steel
- Category:Shipbuilding Steel
- Certificate:ABS, LR, BV, DNVGL, KR, NK
- Delivery Time:30 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Ship I type Steel Specification
|
Specifications |
DIMENSIONS(mm) |
Section area （cm²） |
Theorical weight （kg/m） |
Grade |
Production
standards |
||||
| h | b | d | t | r1 | |||||
| 10 | 100 | 68 | 4.5 | 7.6 | 3.3 | 14.3 | 11.2 |
Q235/Q345 |
GB/T706-2008 |
| 12.6 | 126 | 74 | 5 | 8.4 | 3.5 | 18.1 | 14.2 | ||
| 14 | 140 | 80 | 5.5 | 9.1 | 3.8 | 21.5 | 16.9 | ||
| 16 | 160 | 88 | 6 | 9.9 | 4 | 26.1 | 20.5 | ||
| 18 | 180 | 94 | 6.5 | 10.7 | 4.3 | 30.6 | 24.1 | ||
| 20a | 200 | 100 | 7 | 11.4 | 4.5 | 35.5 | 27.9 | ||
| 20b | 200 | 102 | 9 | 11.4 | 4.5 | 39.5 | 31.1 | ||
| 22a | 220 | 110 | 7.5 | 12.3 | 4.8 | 42 | 33 | ||
| 22b | 220 | 112 | 9.5 | 12.3 | 4.8 | 46.4 | 36.4 | ||
| 25a | 250 | 116 | 8 | 13 | 5 | 48.5 | 38.1 | ||
| 25b | 250 | 118 | 10 | 13 | 5 | 53.5 | 42 | ||
| 28a | 280 | 122 | 8.5 | 13.7 | 5.3 | 55.45 | 43.4 | ||
| 28b | 280 | 124 | 10.5 | 13.7 | 5.3 | 61.05 | 47.9 | ||
| 32a | 320 | 130 | 9.5 | 15 | 5.8 | 67.05 | 52.7 | ||
| 32b | 320 | 132 | 11.5 | 15 | 5.8 | 73.45 | 57.7 | ||
| 32c | 320 | 134 | 13.5 | 15 | 5.8 | 79.95 | 62.8 | ||
| 36a | 360 | 136 | 10 | 15.8 | 6 | 76.3 | 59.9 | ||
| 36b | 360 | 138 | 12 | 15.8 | 6 | 83.5 | 65.6 | ||
| 36c | 360 | 140 | 14 | 15.8 | 6 | 90.7 | 71.2 | ||
| 40a | 400 | 142 | 10.5 | 16.5 | 6.3 | 86.1 | 67.6 | ||
| 40b | 400 | 144 | 12.5 | 16.5 | 6.3 | 94.1 | 73.8 | ||
| 40c | 400 | 146 | 14.5 | 16.5 | 6.3 | 102 | 80.1 | ||
| 45a | 450 | 150 | 11.5 | 18 | 6.8 | 102 | 80.4 | ||
| 45b | 450 | 152 | 13.5 | 18 | 6.8 | 111 | 87.4 | ||
| 45c | 450 | 154 | 15.5 | 18 | 6.8 | 120 | 94.5 | ||
| 50a | 500 | 158 | 12 | 20 | 7 | 119 | 93.6 | ||
| 50b | 500 | 160 | 14 | 20 | 7 | 129 | 101 | ||
| 50c | 500 | 162 | 16 | 20 | 7 | 139 | 109 | ||
| 56a | 560 | 166 | 12.5 | 21 | 7.3 | 135.25 | 106.2 | ||
| 56b | 560 | 168 | 14.5 | 21 | 7.3 | 146.45 | 115 | ||
| 56c | 560 | 170 | 16.5 | 21 | 7.3 | 157.85 | 123.9 | ||
| 63a | 630 | 176 | 13 | 22 | 7.5 | 154.9 | 121.6 | ||
| 63b | 630 | 178 | 15 | 22 | 7.5 | 167.5 | 131.5 | ||
| 63c | 630 | 180 | 17 | 22 | 7.5 | 180.1 | 141 | ||
