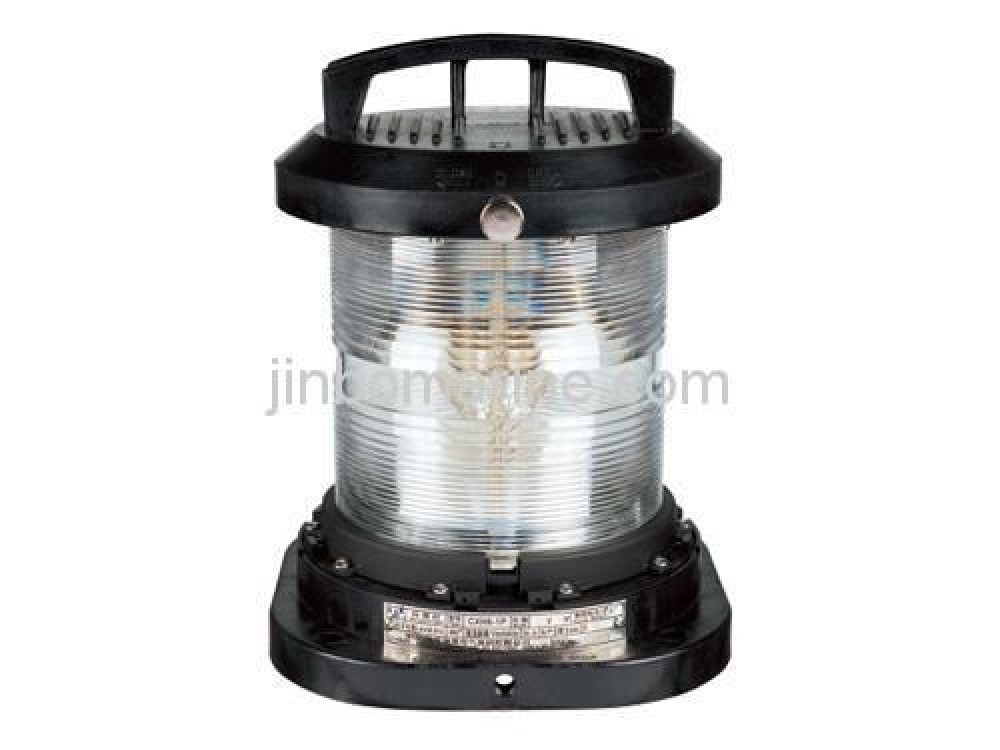

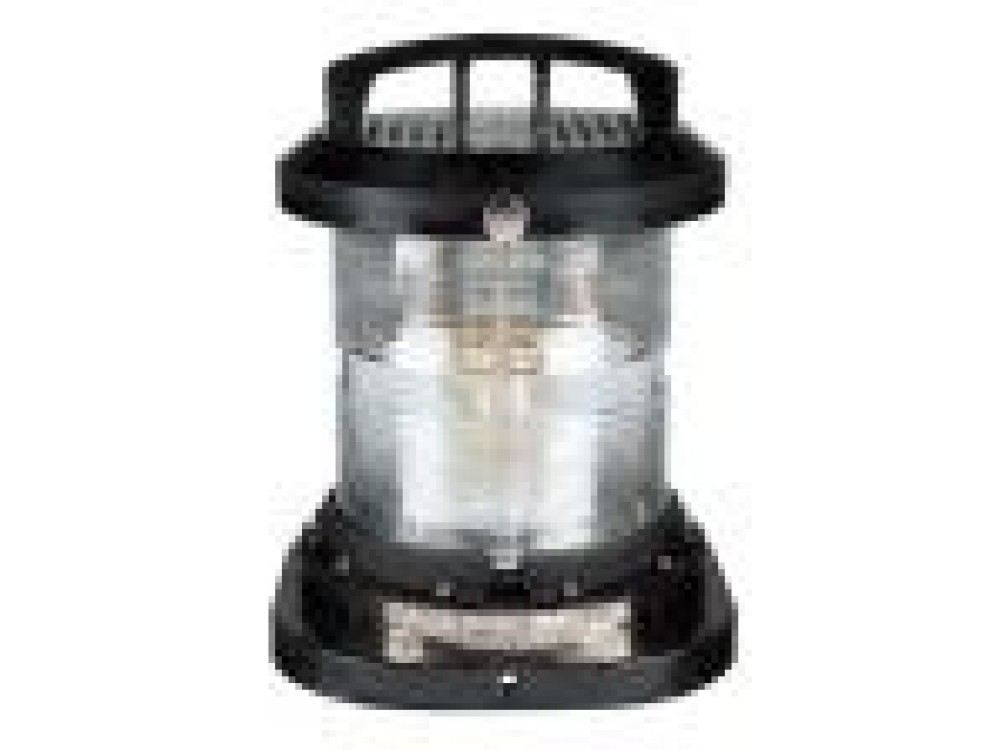

Single-Deck Navigation Signal Light CXH-1P
- Category:Marine Navigation Signal Light
- Material:Engineering Plastic, Steel, Stainless Steel
- Standards:IEC60598-1-2008
- Certificate:CCS Type Approval Certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Single-Deck Navigation Signal Light CXH-1P:
The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.
Product Advantage:
1. Easy to Install and replace the bulb with a leakage hole at the bottom.
2. The sheel is made of engineering plastic, corrosion resistance and impact resistance
3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.
Standards:
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 24V | 110V | 220V |
| Power | 60W | 65W | 65W |
| Lamp Holder | B22d | ||
| Protection Class | IP56 | ||
| Cable Outside Diameter | Dia.12-13 | ||
| Name | Type | Visibility | Level Arc | Color | Weight |
| Starboard Light | CXH1-1P | 3n.m | 112.5o | Green | 2.6KGS |
| Port Light | CXH2-1P | 3n.m | 112.5o | Red | 2.6KGS |
| Masthead Light | CXH3-1P | 3n.m | 225o | White | 2.5KGS |
| Stern Light | CXH4-1P | 3n.m | 135o | White/Yellow | 2.7KGS |
| All-round- Light | CXH6-1P | 3n.m | 360o | Red/green/white | 2.2KGS |
