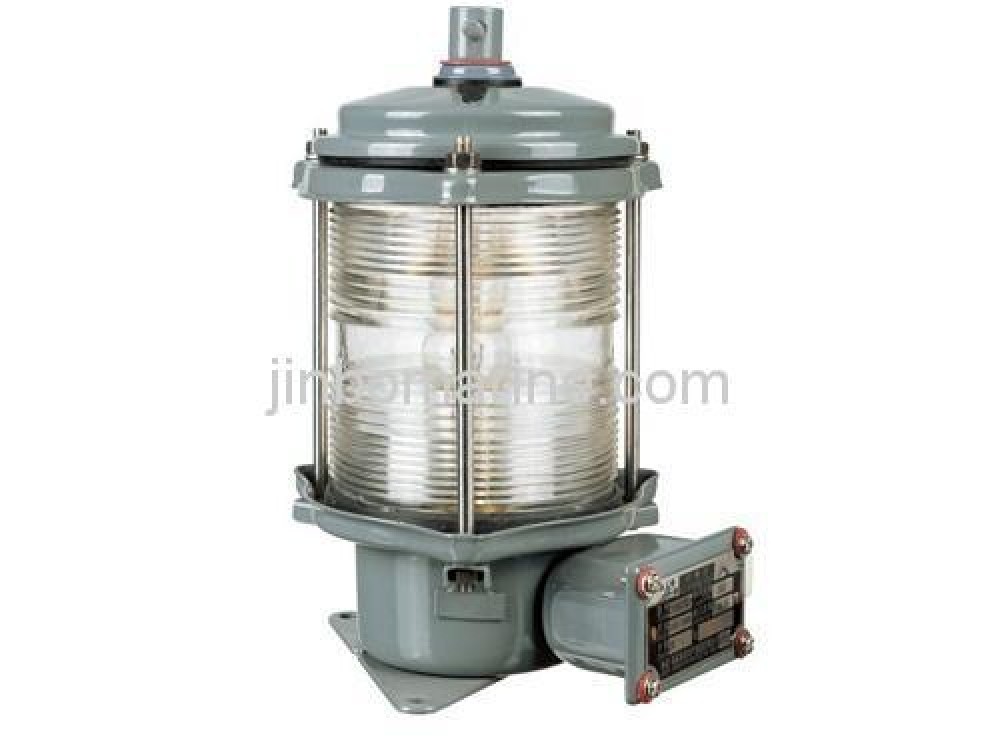

Single-Deck Navigation Signal Light CXH-2C
- Category:Marine Navigation Signal Light
- Material:Steel
- Standards:IEC60598-1-2008
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Single-Deck Navigation Signal Light CXH-2C:
The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.
Product Advantage:
1. Easy to install and replace with bulb.
2. The shell is made of steel, finished by special mold-powder with the feature of corrosion-resisting and shock resistance.
3. PC Material, UV resistance and non-discolouring.
Standards:
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 24V | 110V | 220V |
| Power | 30W | 65W | 65W |
| Lamp Holder | B15d | ||
| Protection Class | IP55 | ||
| Cable Diameter | Dia.10-12 | ||
| Name | Type | Visibility | Level Arc | Color | Weight |
| Starboard Light | CXH1-2C | 3n.m | 112.5o | Green | 1.8KGS |
| Port Light | CXH2-2C | 3n.m | 112.5o | Red | 1.8KGS |
| Masthead Light | CXH3-2C | 5n.m | 225o | White | 1.8KGS |
| Stern Light | CXH4-2C | 3n.m | 135o | White/Yellow | 1.8KGS |
| All-round- Light | CXH6-2C | 3n.m | 360o | Red/green/white | 1.8KGS |
