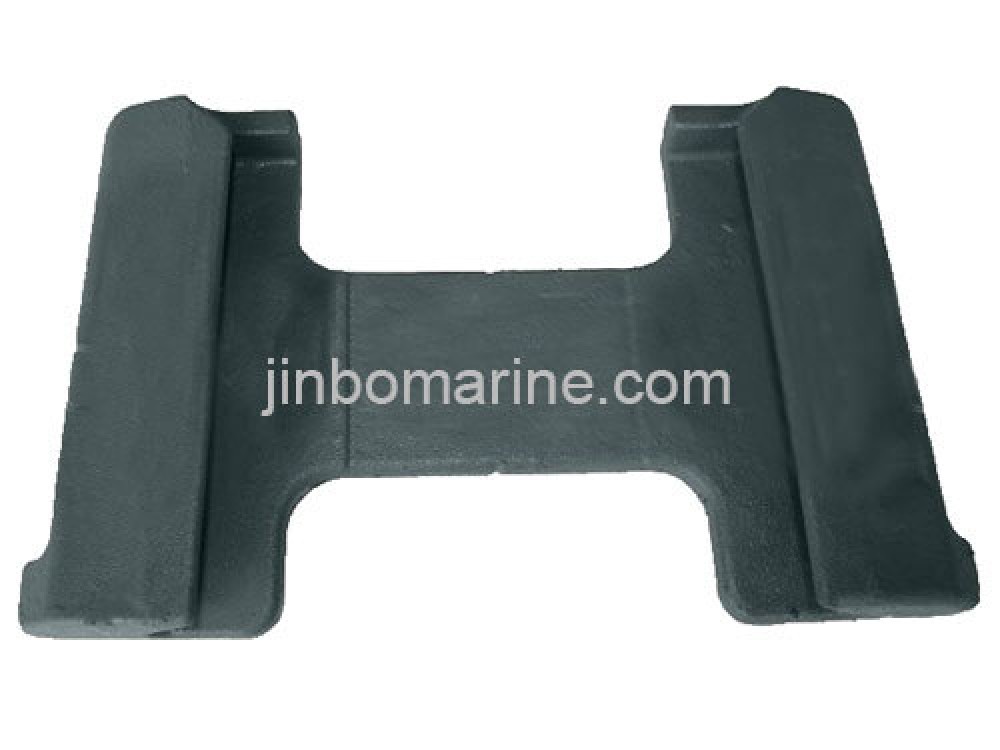

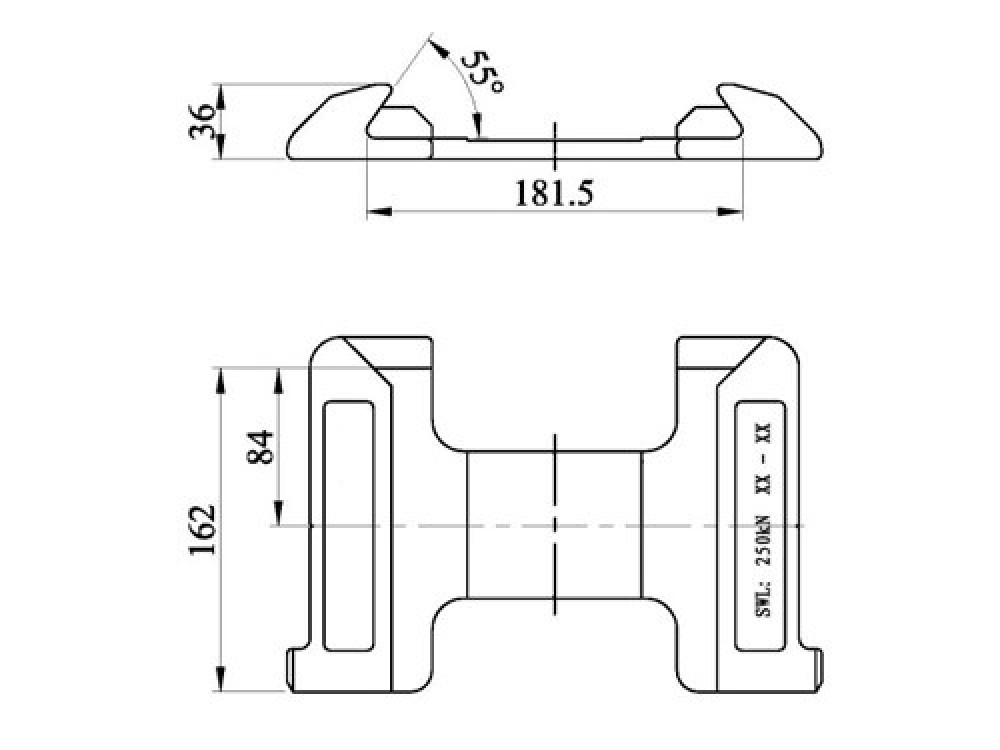

Single Dovetail Plates

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Single Dovetail Plates :

1.All items are approved by major classification societies
2.customized design is available.

Material: casting steel

Finish: paint

Weight:4.2KG

M.B.L: Trnsion: 500KN

M.B.L: Shear: 420KN

Certification: All items are approved by major classification societies

Remarks: customized design is available

Our scope of supply( cotainer fastners ) covers the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, ETC.
