Single row four point contact ball slewing bearing (01 Series)
- Category:Mooring Equipment Accessories
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Structural characteristics, performance and scope of application

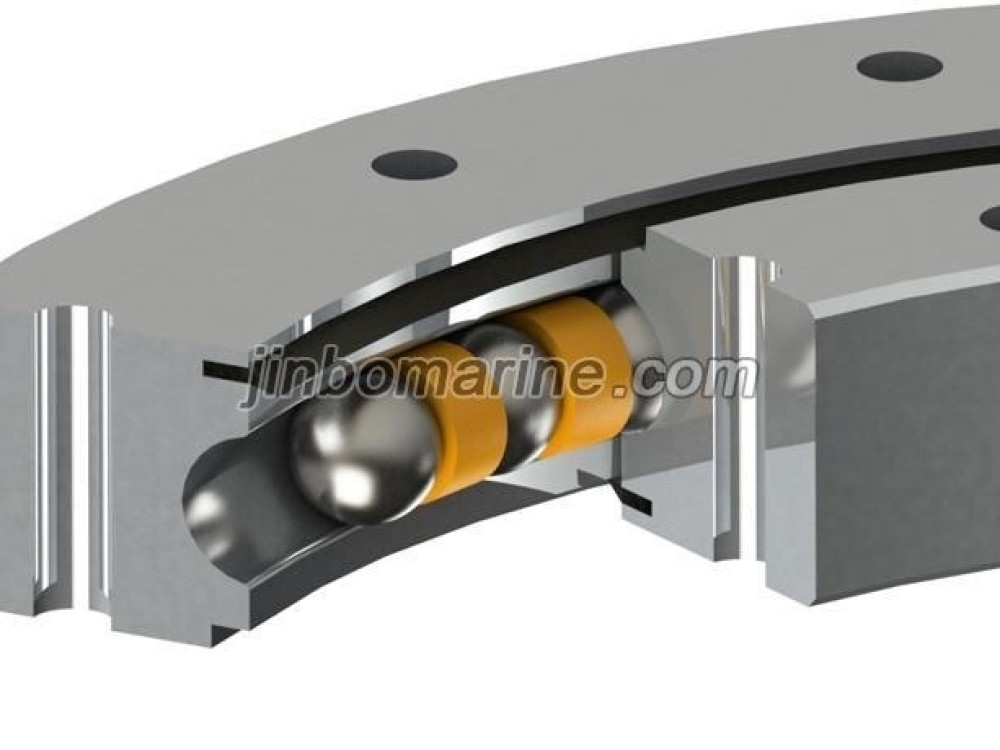

The single row four-point contact ball slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and

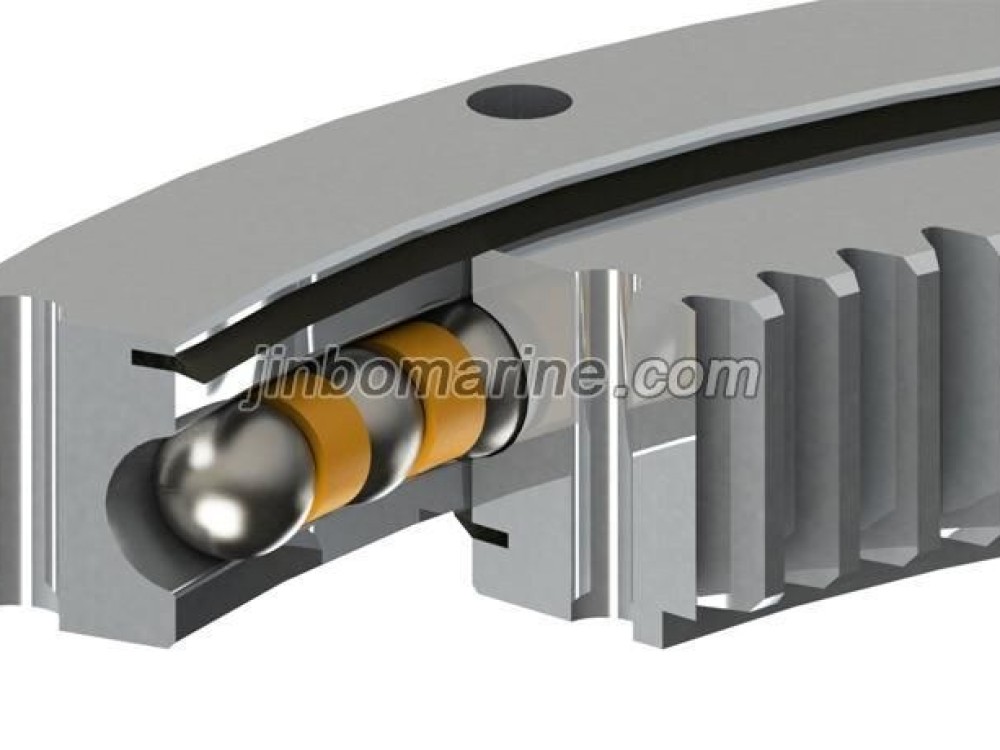

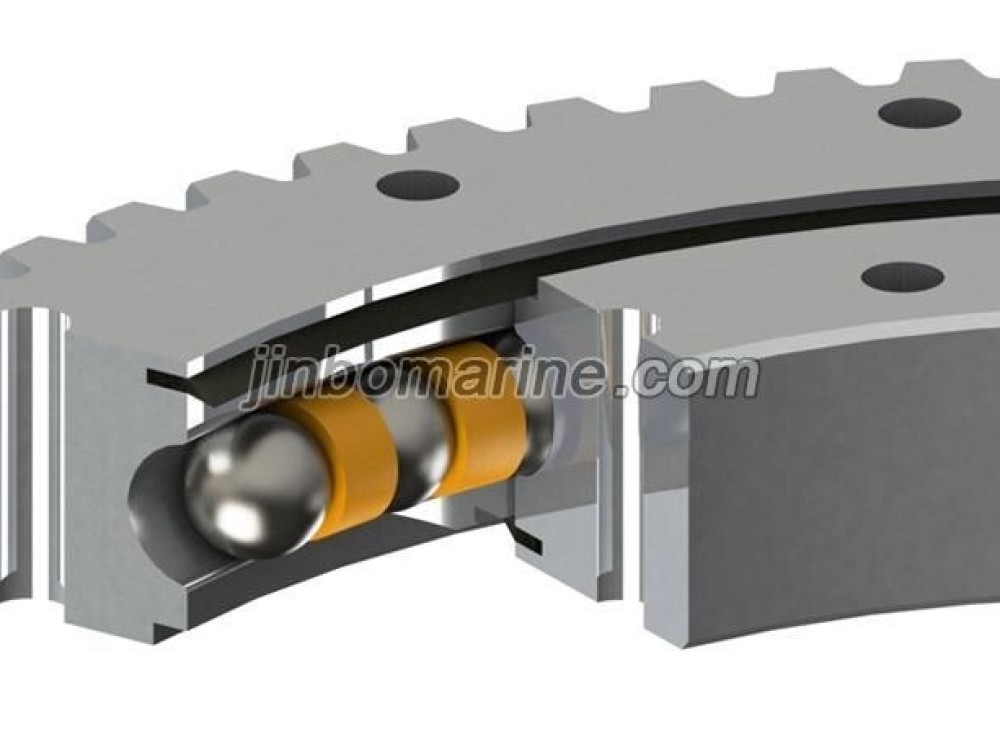

overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.This series of bearings has three basic structures: non-gear type, external gear type and internal gear type.
JB/T10471-2004 standard slewing bearing numbering method
x x x xx xxxx
- - - -- ----
⑴ ⑵ ⑶ ⑷
⑴ The types of products
01-Single row four point contact ball slewing bearing
02-Double Row Ball slewing bearing
11-Single row cross roller slewing bearing
13-Three row roller slewing bearing
⑵ Meshing mode
0-No gear type
1-External gear small module
2-External gear large module
3-Internal gear small module
4-Internal gear large module
⑶ Diameter of rolling body (steel ball or cylindrical roller) mm
⑷ Raceway center diameter

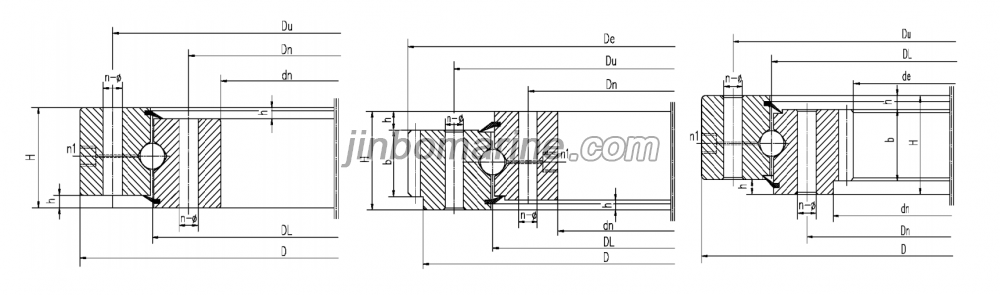

Dimensions and Parameters
Bearing type | Boundary dimensions | Mounting hole diameter | Structure dimensions | Gear parameters | Mass kg | |||||||||||||||
Non-gear type | External gear type | Internal gear type | D | dn | H | Du | Dn | n | φ | DL | h | nl | m | Ext gear | Int gear | b | X | |||
mm | mm | mm | mm | De mm | z | de mm | Z | mm | ||||||||||||
010 • 30 • 500 • ** | 011 • 30 • 500 • ** | 013 • 30 • 500 • ** | 602 | 398 | 80 | 566 | 434 | 20 | 18 | 500 | 10 | 4/M10X1 | 5 | 630 | 123 | 365 | 74 | 60 | +0.5 | 75.8 |
012 • 30 • 500 • ** | 014 • 30 • 500 • ** | 6 | 630 | 102 | 366 | 62 | 60 | +0.5 | 75.8 | |||||||||||
010 • 30 • 560 • ** | 011 • 30 • 560 • ** | 013 • 30 • 560 • ** | 662 | 458 | 80 | 626 | 494 | 20 | 18 | 560 | 10 | 4/M10X1 | 5 | 690 | 135 | 425 | 86 | 60 | +0.5 | 94 |
012 • 30 • 560 • ** | 014 • 30 • 560 • ** | 6 | 690 | 112 | 426 | 72 | 60 | +0.5 | 94 | |||||||||||
010 • 30 • 630 • ** | 011 • 30 • 630 • ** | 013 • 30 • 630 • ** | 732 | 528 | 80 | 696 | 564 | 24 | 18 | 630 | 10 | 4/M10X1 | 6 | 774 | 126 | 492 | 83 | 60 | +0.5 | 110 |
012 • 30 • 630 • ** | 014 • 30 • 630 • ** | 8 | 776 | 94 | 488 | 62 | 60 | +0.5 | 110 | |||||||||||
010 • 30 • 710 • ** | 011 • 30 • 710 • ** | 013 • 30 • 710 • ** | 812 | 608 | 80 | 776 | 644 | 24 | 18 | 710 | 10 | 4/M10X1 | 6 | 852 | 139 | 570 | 96 | 60 | +0.5 | 120 |
012 • 30 • 710 • ** | 014 • 30 • 710 • ** | 8 | 856 | 104 | 568 | 72 | 60 | +0.5 | 120 | |||||||||||
010 • 40 • 800 • ** | 011 • 40 • 800 • ** | 013 • 40 • 800 • ** | 922 | 678 | 100 | 878 | 722 | 30 | 22 | 800 | 10 | 6/M10X1 | 8 | 968 | 118 | 632 | 80 | 80 | +0.5 | 256 |
012 • 40 • 800 • ** | 014 • 40 • 800 . ** | 10 | 970 | 94 | 630 | 64 | 80 | +0.5 | 256 | |||||||||||
010 • 40 • 900 • ** | 011 • 40 • 900 • ** | 013 • 40 • 900 • ** | 1022 | 778 | 100 | 978 | 822 | 30 | 22 | 900 | 10 | 6/M10X1 | 8 | 1064 | 130 | 736 | 93 | 80 | +0.5 | 240 |
012 • 40 • 900 • ** | 014 • 40 • 900 • ** | 10 | 1070 | 104 | 730 | 74 | 80 | +0.5 | 240 | |||||||||||
010 • 40 • 1000 • ** | 011 • 40 • 1000 • ** | 013 • 40 • 1000 • ** | 1122 | 878 | 100 | 1078 | 922 | 36 | 22 | 1000 | 10 | 6/M10X1 | 10 | 1190 | 116 | 820 | 83 | 80 | +0.5 | 305 |
012 • 40 • 1000 • ** | 014 • 40 • 1000 • ** | 12 | 1188 | 96 | 816 | 69 | 80 | +0.5 | 305 | |||||||||||
010 • 40 • 1120 • ** | 011 • 40 • 1120 • ** | 013 • 40 • 1120 • ** | 1242 | 998 | 100 | 1198 | 1042 | 36 | 22 | 1120 | 10 | 6/M10X1 | 10 | 1300 | 127 | 940 | 95 | 80 | +0.5 | 300 |
012 • 40 • 1120 • ** | 014 • 40 • 1120 • ** | 12 | 1308 | 106 | 936 | 79 | 80 | +0.5 | 300 | |||||||||||
010 • 45 • 1250 • ** | 011 • 45 • 1250 • ** | 013 • 45 • 1250 • ** | 1390 | 1110 | 110 | 1337 | 1163 | 40 | 26 | 1250 | 10 | 6/M10X1 | 12 | 1452 | 118 | 1044 | 88 | 90 | +0.5 | 420 |
012 • 45 • 1250 • ** | 014 • 45 • 1250 • ** | 14 | 1456 | 101 | 1036 | 75 | 90 | +0.5 | 420 | |||||||||||
010 • 45 • 1400 • ** | 011 • 45 • 1400 • ** | 013 • 45 • 1400 • ** | 1540 | 1260 | 110 | 1487 | 1313 | 40 | 26 | 1400 | 10 | 6/M10X1 | 12 | 1608 | 131 | 1188 | 100 | 90 | +0.5 | 480 |
012 • 45 • 1400 • ** | 014 • 45 • 1400 • ** | 14 | 1610 | 112 | 1190 | 86 | 90 | +0.5 | 480 | |||||||||||
010 • 45 • 1600 • ** | 011 • 45 • 1600 • ** | 013 • 45 • 1600 • ** | 1740 | 1460 | 110 | 1687 | 1513 | 45 | 26 | 1600 | 10 | 8/M10X1 | 14 | 1820 | 127 | 1386 | 100 | 90 | +0.5 | 550 |
012 • 45 • 1600 • ** | 014 • 45 • 1600 • ** | 16 | 1824 | 111 | 1376 | 87 | 90 | +0.5 | 550 | |||||||||||
010 • 45 • 1800 • ** | 011 • 45 • 1800 • ** | 013 • 45 • 1800 • ** | 1940 | 1660 | 110 | 1887 | 1713 | 45 | 26 | 1800 | 10 | 8/M10X1 | 14 | 2016 | 141 | 1568 | 113 | 90 | +0.5 | 610 |
012 • 45 • 1800 • ** | 014 • 45 • 1800 • ** | 16 | 2016 | 123 | 1568 | 99 | 90 | +0.5 | 610 | |||||||||||
010 • 60 • 2000 • ** | 011 • 60 • 2000 • ** | 013 • 60 • 2000 • ** | 2178 | 1825 | 144 | 2110 | 1891 | 48 | 33 | 2000 | 12 | 8/M10X1 | 16 | 2272 | 139 | 1728 | 109 | 120 | +0.5 | 1100 |
012 • 60 • 2000 • ** | 014 • 60 • 2000 • ** | 18 | 2268 | 123 | 1728 | 97 | 120 | +0.5 | 1100 | |||||||||||
010 • 60 • 2240 • ** | 011 • 60 • 2240 • ** | 013 • 60 • 2240 • ** | 2418 | 2065 | 144 | 2350 | 2131 | 48 | 33 | 2240 | 12 | 8/M10X1 | 16 | 2496 | 153 | 1984 | 125 | 120 | +0.5 | 1250 |
012 • 60 • 2240 • ** | 014 • 60 • 2240 • ** | 18 | 2502 | 136 | 1980 | 111 | 120 | +0.5 | 1250 | |||||||||||
010 • 60 • 2500 • ** | 011 • 60 • 2500 • ** | 013 • 60 • 2500 • ** | 2678 | 2325 | 144 | 2610 | 2391 | 56 | 33 | 2500 | 12 | 8/M10X1 | 18 | 2772 | 151 | 2232 | 125 | 120 | +0.5 | 1400 |
012 • 60 • 2500 • ** | 014 • 60 • 2500 • ** | 20 | 2780 | 136 | 2220 | 112 | 120 | +0.5 | 1400 | |||||||||||
011 • 40 • 2500 • 12 | 18 | 2769.7 | 151 | — | — | 120 | +0.5 | 1400 | ||||||||||||
010 • 60 • 2800 • ** | 011 • 60 • 2800 • ** | 013 • 60 • 2800 • ** | 2978 | 2625 | 144 | 2910 | 2691 | 56 | 33 | 2800 | 12 | 8/M10X1 | 18 | 3078 | 168 | 2520 | 141 | 120 | +0.5 | 1600 |
012 • 60 • 2800 • ** | 014 • 60 • 2800 • ** | 20 | 3080 | 151 | 2520 | 127 | 120 | +0.5 | 1600 | |||||||||||
010 • 75 • 3150 • ** | 011 • 75 • 3150 • ** | 013 • 75 • 3150 • ** | 3376 | 2922 | 174 | 3286 | 3014 | 56 | 45 | 3150 | 12 | 8/M10X1 | 20 | 3480 | 171 | 2820 | 142 | 150 | +0.5 | 2800 |
012 • 75 • 3150 • ** | 014 • 75 • 3150 • ** | 22 | 3476 | 115 | 2816 | 129 | 150 | +0.5 | 2800 | |||||||||||
010 • 75 • 3550 • ** | 011 • 75 • 3550 • ** | 013 • 75 • 3550 • ** | 3776 | 3322 | 174 | 3686 | 3414 | 56 | 45 | 3550 | 12 | 8/M10X1 | 20 | 3880 | 191 | 3220 | 162 | 150 | +0.5 | 3200 |
012 • 75 • 3550 • ** | 014 • 75 • 3550 • ** | 22 | 3894 | 174 | 3212 | 147 | 150 | +0.5 | 3200 | |||||||||||
010 • 75 • 4000 • ** | 011 • 75 • 4000 • ** | 013 • 75 • 4000 • ** | 4226 | 3772 | 174 | 4136 | 3864 | 60 | 45 | 4000 | 12 | 10/M10X1 | 22 | 4334 | 194 | 3652 | 167 | 150 | +0.5 | 3600 |
012 • 75 • 4000 • ** | 014 • 75 • 4000 • ** | 25 | 4350 | 171 | 3650 | 147 | 150 | +0.5 | 3600 | |||||||||||
010 • 75 • 4500 • ** | 011 • 75 • 4500 • ** | 013 • 75 • 4500 • ** | 4726 | 4272 | 174 | 4636 | 4364 | 60 | 45 | 4500 | 12 | 10/M10X1 | 22 | 4840 | 271 | 4158 | 190 | 150 | +0.5 | 4000 |
012 • 75 • 4500 • ** | 014 • 75 • 4500 • ** | 25 | 4850 | 191 | 4150 | 167 | 150 | +0.5 | 4000 |
NOTE:UNDERTAKE ALLKINDS OF NON-STANDARD PRODUCTS
