Skylight for Engine Room

Standard: CB*3038-83

The skylight for engine room can be driven pneumatically, electrically, hydraulically, mechanically.

Material: Carbon Steel

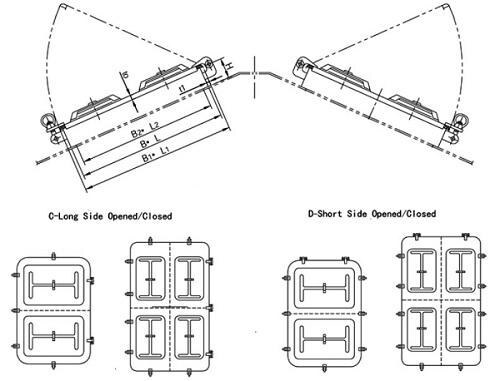

C- hinge in the long side (long side opened/closed)

D- hinge in the short side (short side opened/closed)

Type	Clear Size B*L	Cover Size B1*L1	Opening Size B2*L2*r	Clear Size	to	t1	H	Weight(kgs)
C & D	600*900	635*935	590*890*95	2(300*450)	4	5	100	45
	800*1200	836*1236	790*1190*95	2(400*600)	4	5		63
	1200*1600	1238*1638	1190*1590*95	2(400*600)	5	6		131
	1200*2000	1238*2038	1190*1990*95	2(400*600)	5	6		159

*The size in the list is just for reference. The size can be customerized.
