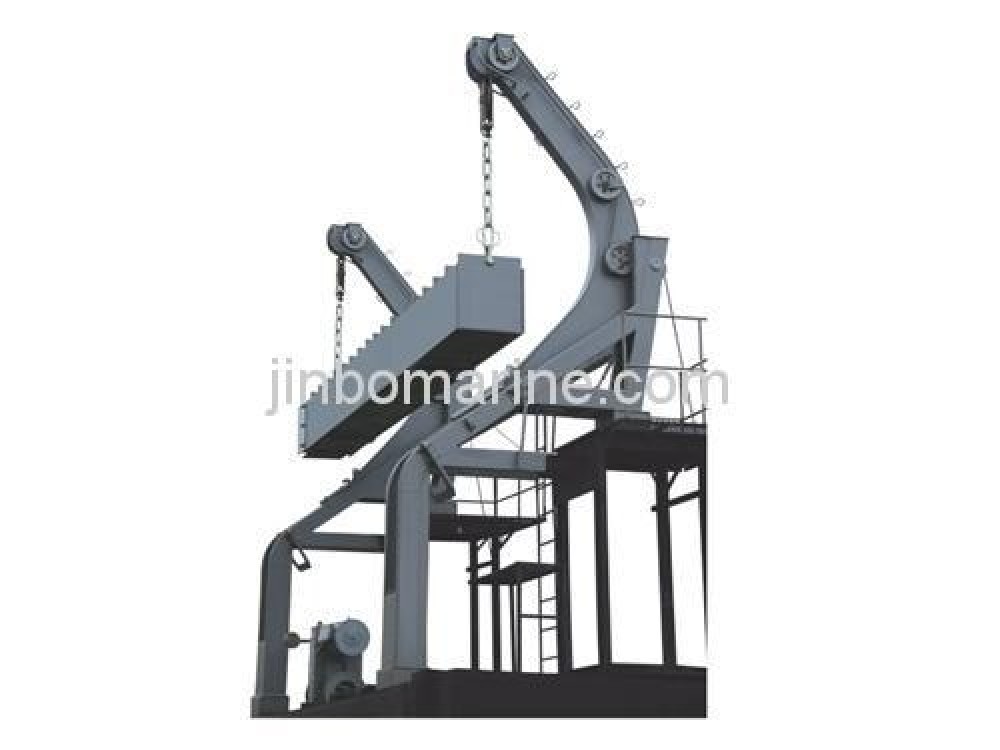

Slide Type And Gravity Davit

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

This device could launch the boat by boat own gravity to the surface of water, also, which could pour down the boat outboard while it is loss of electric power;while Launching, the passengers could pull the remote control cable in the boat to launch or stop the life/rescue boat or raft. As well, the crews can operate it on the deck. This device meets the SOLAS 1974, the international life saving equipment rules LSA and IMO, MSC81 (70) and other regulatory requirements.

Technical Parameter:

Model Max. Safety working load(KN) Hoisting load(KN) Max width(mm) Max width(mm) Max width(kg)
HE85-1 85 42 3000 6420 5120
HE125-1 125 60 3900 7200 6840
HE170-1 170 70 4100 7250 7720
