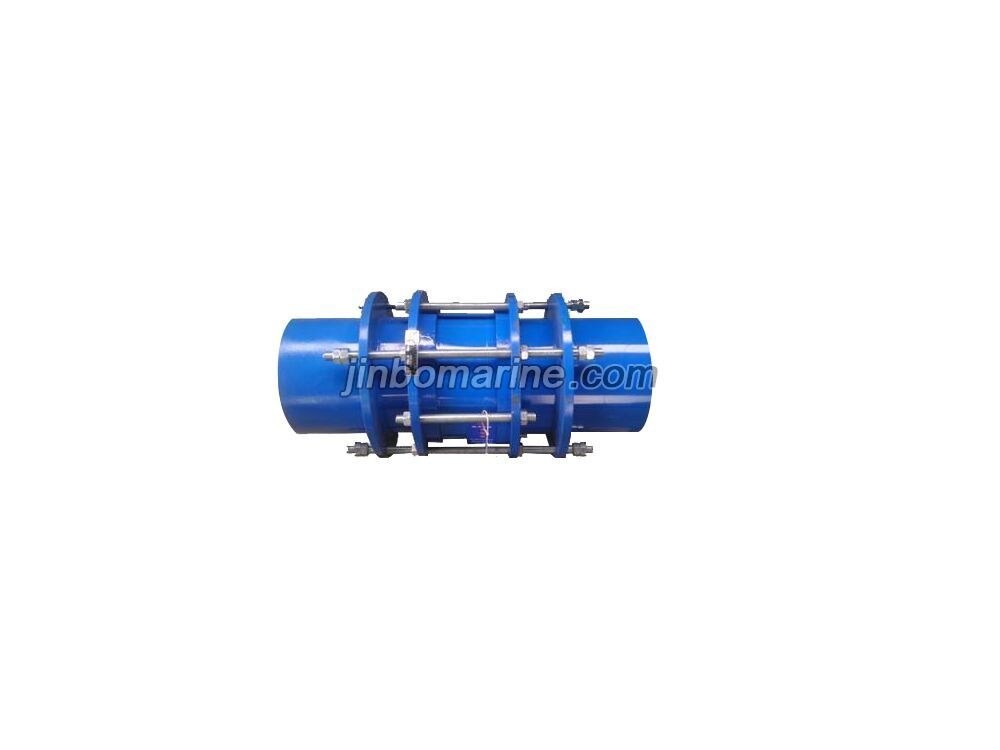

Sliding Type Expansion Joint

The product is suitable to for ship bilge water, ballast water, fresh water, sea water, fire water and oil transfer pipelines, the medium temperature≤170℃.
Products standard: GB/T12465-2002, CBM1129-82
Working pressure: 1.0MPa -1.6MPa

Model	DN	DW	A	B	C	D	△L	L1	Working pressure
STL-65	65	76	155	180	76	230	90	67.5	1.6
STL-80	80	89	165	180	89	230	90	67.5	1.6
STL-100	100	114	195	180	114	235	90	67.5	1.6
STL-125	125	140	225	180	140	235	90	67.5	1.6
STL-150	150	168	255	185	168	235	90	67.5	1.6
STL-200	200	219	310	185	219	250	90	67.5	1.0
STL-250	250	273	375	185	273	250	90	67.5	1.0
STL-300	300	325	440	220	325	290	110	82.5	1.0
STL-350	350	377	490	220	377	290	110	82.5	1.0
STL-400	400	426	540	220	426	290	110	82.5	1.0
STL-450	450	480	590	220	480	290	110	82.5	1.0
STL-500	500	508	625	220	506	310	110	82.5	1.0
STL-600	600	630	750	220	630	310	110	82.5	1.0

Model	DN	DW	A	B	C	D	△L	L1	Working pressure
STL-65	65	76	190	160	75	215	90	57.5	1.6
STL-80	80	89	205	180	89	215	90	67.5	1.6
STL-100	100	114	230	180	114	215	90	67.5	1.6
STL-125	125	140	255	190	140	225	90	72.5	1.6
STL-150	150	168	285	190	168	225	90	72.5	1.6
STL-200	200	219	345	210	219	250	100	80	1.0
STL-250	250	273	410	210	273	265	100	80	1.0
STL-300	300	325	460	210	325	265	100	80	1.0
STL-350	350	377	520	240	377	300	100	95	1.0
STL-400	400	426	570	240	426	300	100	95	1.0
STL-500	500	530	652	260	508	320	100	105	1.0
STL-600	600	630	770	260	630	320	100	105	1.0
