Slingle leg spliced wire rope sling for sale
- Category:Chain Sling
- Material:Galvanized Steel Wire Rope
- Standards:GB/T16271-1996.
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

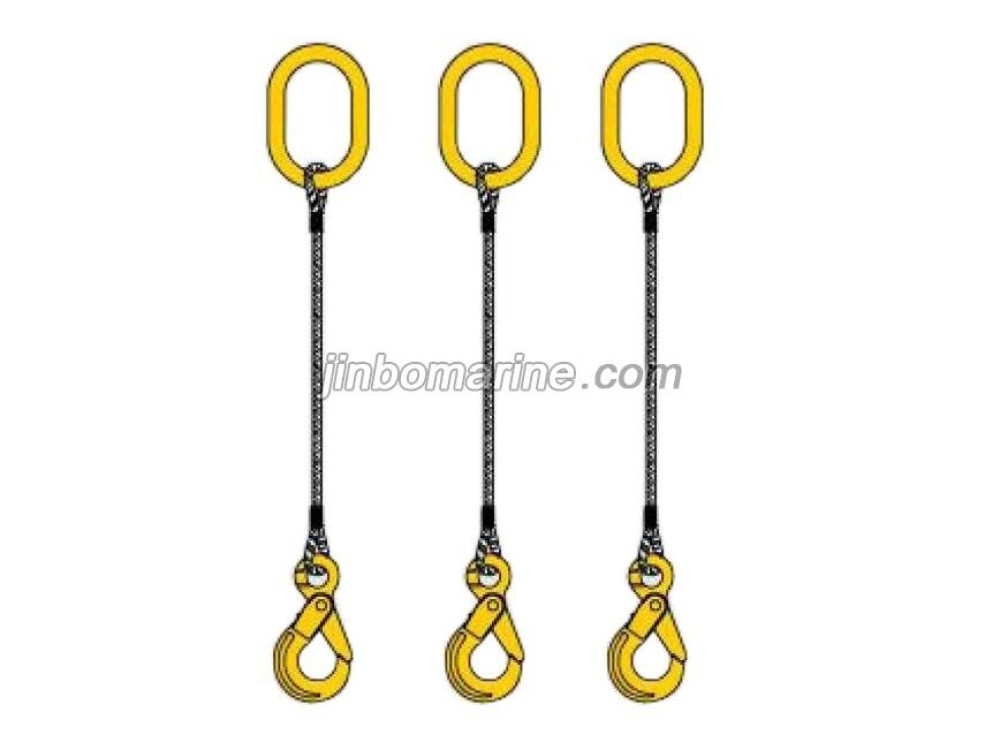

China Slingle leg spliced wire rope sling for sale:
VC----
Whole set of spliced wire rope sling
S----
Sling legs (S-Single leg, D-Double legs, F-four legs)
H----
Fittings (H-hook)
06---
Steel Wire Rope Diameter
L----
Effective length of steel wire rope
The specification of the steel wire in the form with the working load is : 6*37+FC-1670;
Different construction rope with different working load, we can calculate the working load of the steel wire rope construction that the customer required.
According to the Standard GB/T16271-1996.
Producs type | Dia of rope(d)(mm) | Working load limit |
Approx.eye Ength A (mm) |
||
FC | IWR | (FC)kN | (IWR)kN | ||
VDF06 | VDW06 | 6 | 2.7 | 2.9 | 180 |
VDF07 | VDW07 | 7 | 3.6 | 3.9 | 190 |
VDF08 | VDW08 | 8 | 4.7 | 5.1 | 210 |
VDF09 | VDW09 | 9 | 6 | 6.5 | 230 |
VDF10 | VDW10 | 10 | 7.4 | 8 | 230 |
VDF11 | VDW11 | 11 | 8.9 | 9.7 | 250 |
VDF12 | VDW12 | 12 | 11 | 11.5 | 260 |
VDF13 | VDW13 | 13 | 12 | 14 | 260 |
VDF14 | VDW14 | 14 | 14 | 16 | 280 |
VDF16 | VDW16 | 16 | 19 | 20 | 320 |
VDF18 | VDW18 | 18 | 24 | 26 | 360 |
VDF20 | VDW20 | 20 | 30 | 32 | 400 |
VDF22 | VDW22 | 22 | 36 | 39 | 440 |
VDF24 | VDW24 | 24 | 42 | 46 | 480 |
VDF26 | VDW26 | 26 | 50 | 54 | 520 |
VDF28 | VDW28 | 28 | 58 | 63 | 560 |
VDF30 | VDW30 | 30 | 66 | 72 | 600 |
VDF32 | VDW32 | 32 | 76 | 82 | 640 |
VDF34 | VDW34 | 34 | 85 | 92 | 680 |
VDF36 | VDW36 | 36 | 96 | 104 | 720 |
VDF38 | VDW38 | 38 | 106 | 115 | 760 |
VDF40 | VDW40 | 40 | 118 | 128 | 800 |
VDF42 | VDW42 | 42 | 130 | 141 | 840 |
VDF44 | VDW44 | 44 | 143 | 155 | 880 |
VDF46 | VDW46 | 46 | 156 | 169 | 920 |
VDF48 | VDW48 | 48 | 170 | 183 | 960 |
VDF50 | VDW50 | 50 | 185 | 200 | 1000 |
VDF52 | VDW52 | 52 | 200 | 216 | 1040 |
VDF54 | VDW54 | 54 | 215 | 233 | 1080 |
VDF56 | VDW56 | 56 | 231 | 251 | 1120 |
VDF58 | VDW58 | 58 | 248 | 269 | 1160 |
VDF60 | VDW60 | 60 | 266 | 287 | 1200 |
VDF62 | VDW62 | 62 | 241 | 286 | 1240 |
VDF64 | VDW64 | 64 | 257 | 304 | 1280 |
VDF66 | VDW66 | 66 | 274 | 324 | 1320 |
VDF68 | VDW68 | 68 | 291 | 344 | 1360 |
VDF70 | VDW70 | 70 | 308 | 365 | 1400 |
VDF72 | VDW72 | 72 | 326 | 386 | 1440 |
VDF74 | VDW74 | 74 | 344 | 407 | 1480 |
VDF76 | VDW76 | 76 | 363 | 430 | 1520 |
VDF78 | VDW78 | 78 | 383 | 453 | 1560 |
VDF80 | VDW80 | 80 | 402 | 476 | 1600 |
VDF82 | VDW82 | 82 | 423 | 500 | 1640 |
VDF84 | VDW84 | 84 | 444 | 525 | 1680 |
VDF86 | VDW86 | 86 | 465 | 550 | 1720 |
VDF88 | VDW88 | 88 | 487 | 576 | 1760 |
VDF90 | VDW90 | 90 | 509 | 603 | 1800 |
VDF92 | VDW92 | 92 | 532 | 630 | 1840 |
VDF94 | VDW94 | 94 | 556 | 657 | 1880 |
VDF96 | VDW96 | 96 | 579 | 686 | 1920 |
VDF98 | VDW98 | 98 | 604 | 714 | 1960 |
VDF100 | VDW100 | 100 | 629 | 744 | 2000 |
VDF102 | VDW102 | 102 | 654 | 774 | 2040 |
VDF104 | VDW104 | 104 | 680 | 805 | 2080 |
VDF106 | VDW106 | 106 | 707 | 836 | 2120 |
VDF108 | VDW108 | 108 | 733 | 868 | 2160 |
VDF110 | VDW110 | 110 | 761 | 900 | 2200 |
VDF112 | VDW112 | 112 | 789 | 933 | 2240 |
VDF114 | VDW114 | 114 | 817 | 967 | 2280 |
VDF116 | VDW116 | 116 | 846 | 1001 | 2320 |
VDF118 | VDW118 | 118 | 876 | 1036 | 2360 |
VDF120 | VDW120 | 120 | 905 | 1071 | 2400 |
VDF122 | VDW122 | 122 | 1006 | 1252 | 2440 |
VDF124 | VDW124 | 124 | 1039 | 1294 | 2480 |
VDF126 | VDW126 | 126 | 1074 | 1336 | 2520 |
VDF128 | VDW128 | 128 | 1108 | 1378 | 2560 |
VDF130 | VDW130 | 130 | 1143 | 1422 | 2600 |
VDF132 | VDW132 | 132 | 1179 | 1467 | 2640 |
VDF138 | VDW138 | 138 | 1288 | 1605 | 2760 |
VDF140 | VDW140 | 140 | 1326 | 1650 | 2800 |
VDF142 | VDW142 | 142 | 1363 | 1695 | 2840 |
VDF144 | VDW144 | 144 | 1402 | 1740 | 2880 |
VDF146 | VDW146 | 146 | 1441 | 1800 | 2920 |
VDF148 | VDW148 | 148 | 1482 | 1845 | 2960 |
VDF150 | VDW150 | 150 | 1515 | 1890 | 3000 |
