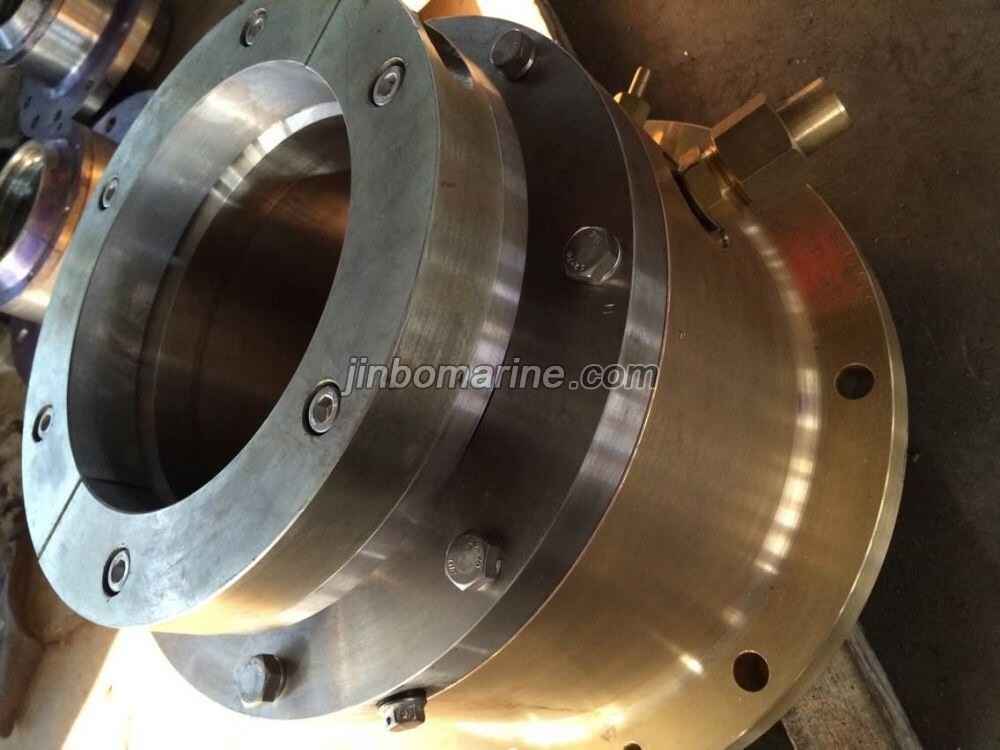

SM/SMB Type Water Lubrication Stern Tube Seal
- Category:Stern Tube Seal
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Packing Details:Wooden Box
- Delivery Time:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Techinical Specification
It is suitable for kinds of vessels whose
working medium is water.
When the axial vibration≤1mm,the
SM type can be used;
When the axial vibration≤±3mmand then speed is high,the SMB type can be used.
Table 1
Size | 70 | 90 | 110 | 130 | 150 | 170 | 190 | 210 | 230 | 250 | 270 | 290 | 310 | 330 | |
Dimensions(mm) | A | 70 | 90 | 110 | 130 | 150 | 170 | 190 | 210 | 230 | 250 | 270 | 290 | 310 | 330 |
Wmax | 55 | 75 | 95 | 115 | 135 | 155 | 175 | 195 | 215 | 230 | 250 | 270 | 290 | 310 | |
B | 250 | 265 | 285 | 300 | 330 | 370 | 380 | 420 | 440 | 460 | 480 | 530 | 540 | 570 | |
C | 225 | 240 | 260 | 260 | 280 | 330 | 345 | 385 | 405 | 425 | 445 | 475 | 495 | 500 | |
D | 165 | 180 | 195 | 215 | 235 | 255 | 240 | 305 | 325 | 345 | 365 | 385 | 405 | 425 | |
L | 290 | 290 | 290 | 290 | 290 | 290 | 290 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
E | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | |
M10 | M10 | M10 | M10 | M12 | M12 | M12 | M16 | M16 | M16 | M16 | M16 | M20 | M16 | ||
T | 20 | 20 | 20 | 20 | 20 | 25 | 30 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Table 2
Size | 350 | 370 | 390 | 410 | 430 | 450 | 470 | 490 | 510 | 530 | 550 | 570 | |
Dimensions(mm) | A | 350 | 370 | 390 | 410 | 430 | 450 | 470 | 490 | 510 | 530 | 550 | 570 |
Wmax | 325 | 345 | 365 | 385 | 405 | 425 | 445 | 465 | 485 | 500 | 520 | 540 | |
B | 590 | 620 | 640 | 670 | 690 | 710 | 730 | 750 | 770 | 790 | 810 | 830 | |
C | 550 | 570 | 590 | 615 | 635 | 655 | 675 | 695 | 715 | 740 | 760 | 780 | |
D | 445 | 465 | 485 | 515 | 535 | 555 | 575 | 595 | 615 | 640 | 660 | 680 | |
L | 320 | 320 | 320 | 345 | 345 | 345 | 345 | 345 | 345 | 345 | 345 | 350 | |
E | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
M20 | M20 | M20 | M20 | M20 | M20 | M20 | M20 | M20 | M20 | M20 | M20 | ||
T | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |

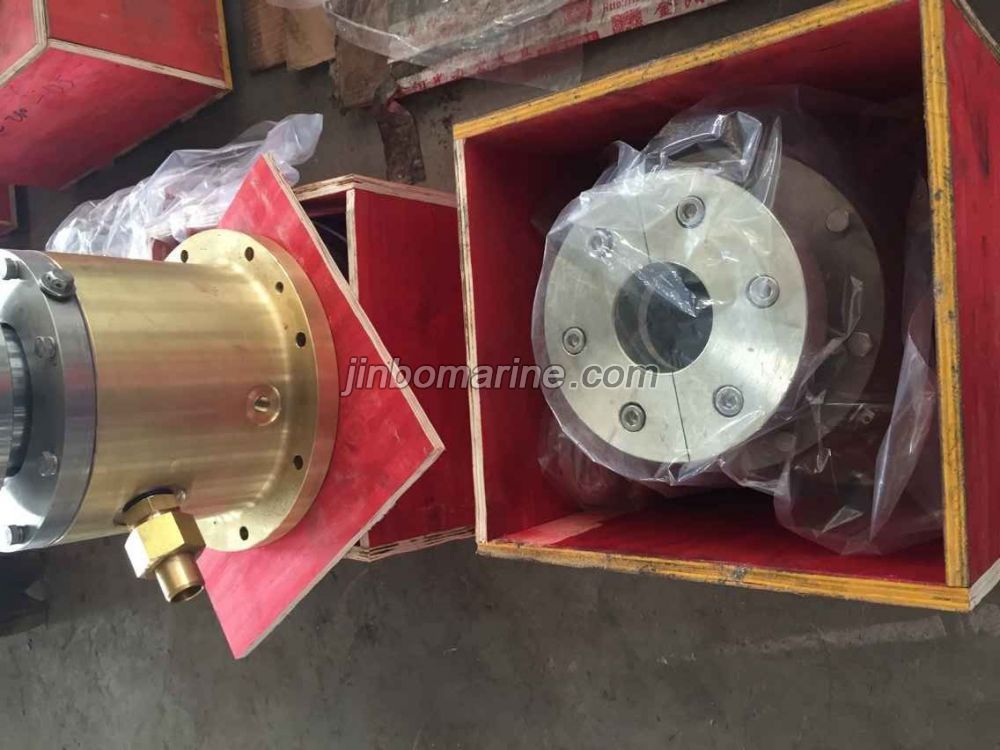

Water Lubricated AFT Stern Tube Seal for shaft diameter 139.7mm

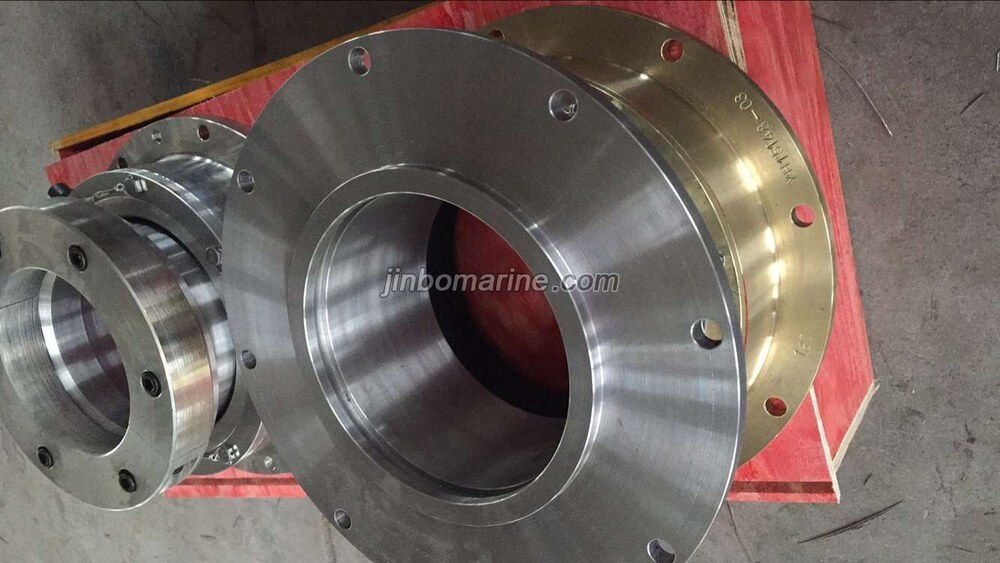

Water Lubricated Stern Tube Seal for shaft 135mm
