SM/SMB Water Lubricated Stern Shaft Sealing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Water Lubricated Stern Shaft Sealing Advantage

1. Suitable for kinds of vessel whose working medium is water.

2. When the axial vibration <=1mm, SM Type can be sued.

3. When the axial vibration <=+/-3mm, and Speed is High SMB Type can be sued.

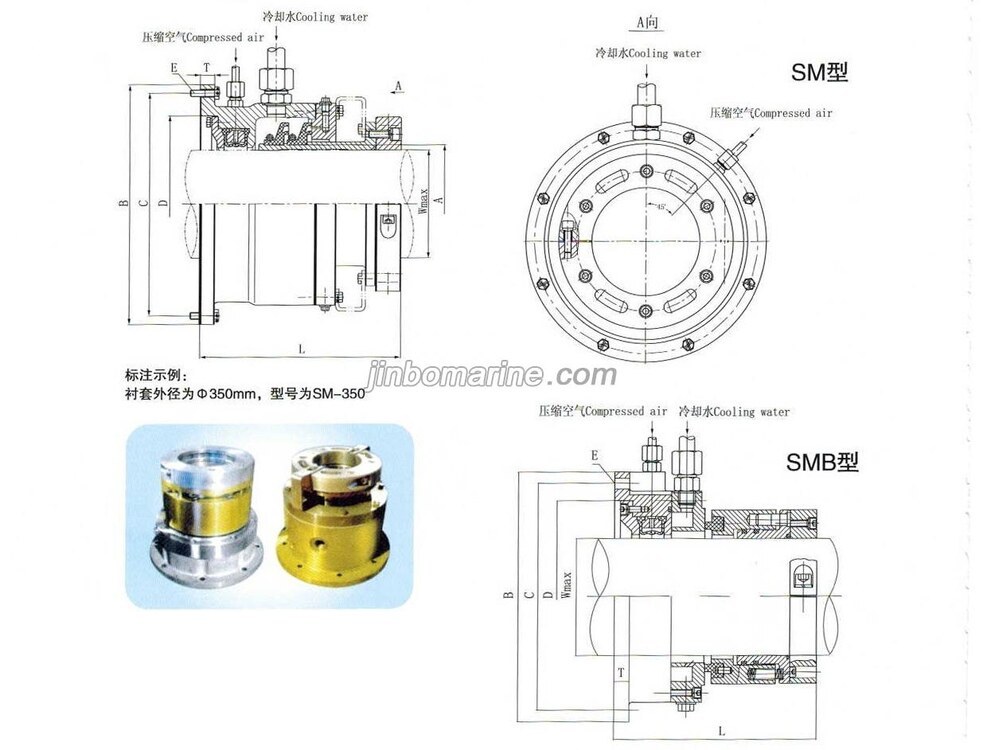

Technical Specification


Specification 70 90 110 130 150 170 190 210 230 250 270 290 310 330 350 370 390 410 430 450 470 510 530 550 570 600
A 70 90 110 130 150 170 190 210 230 250 270 290 310 330 350 370 390 410 430 450 470 510 530 550 570 600
W max 55 75 95 115 135 155 175 195 215 230 250 270 290 310 325 345 365 385 405 425 445 485 500 520 540 570
B 250 265 285 300 330 370 380 420 440 460 480 530 540 540 590 620 640 670 690 710 730 770 790 810 830 860
C 225 240 260 260 280 330 345 385 405 425 445 475 495 500 550 570 590 615 635 675 695 715 740 760 780 810
D 165 180 195 215 235 255 240 305 325 345 365 385 405 425 445 465 485 515 535 555 575 615 640 660 680 710
E 8 8 8 8 8 8 8 8 8 8 8 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
M10 M10 M10 M10 M12 M12 M12 M16 M16 M16 M16 M16 M20 M16 M20 M20 M20 M20 M20 M20 M20 M20 M20 M20 M20 M20
F 20 20 20 20 20 25 30 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25

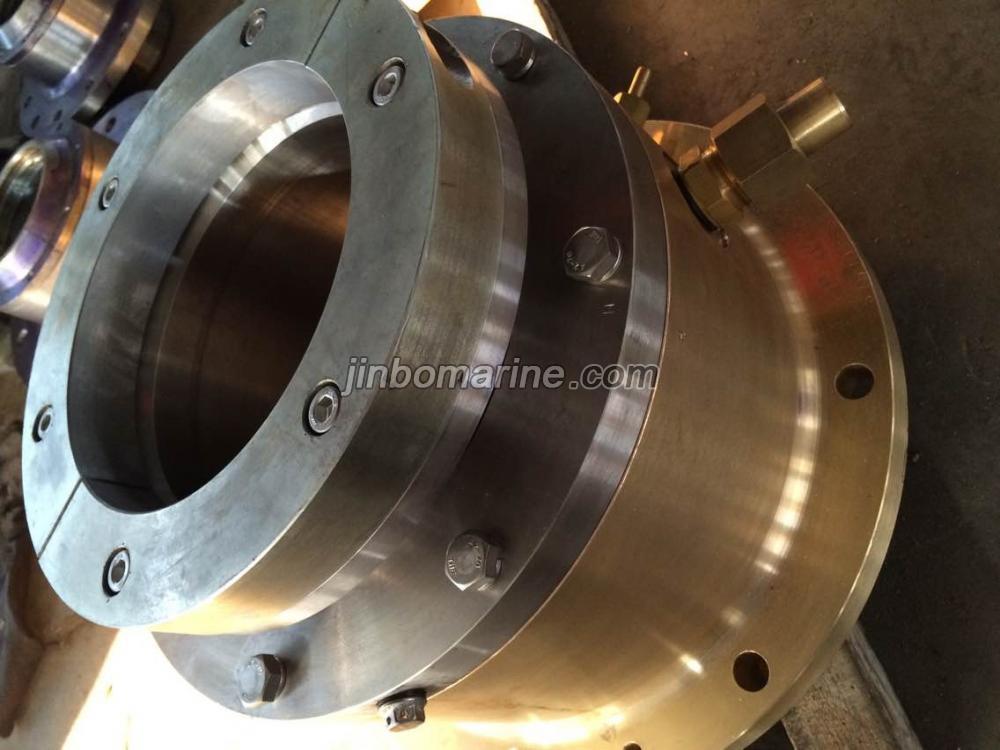

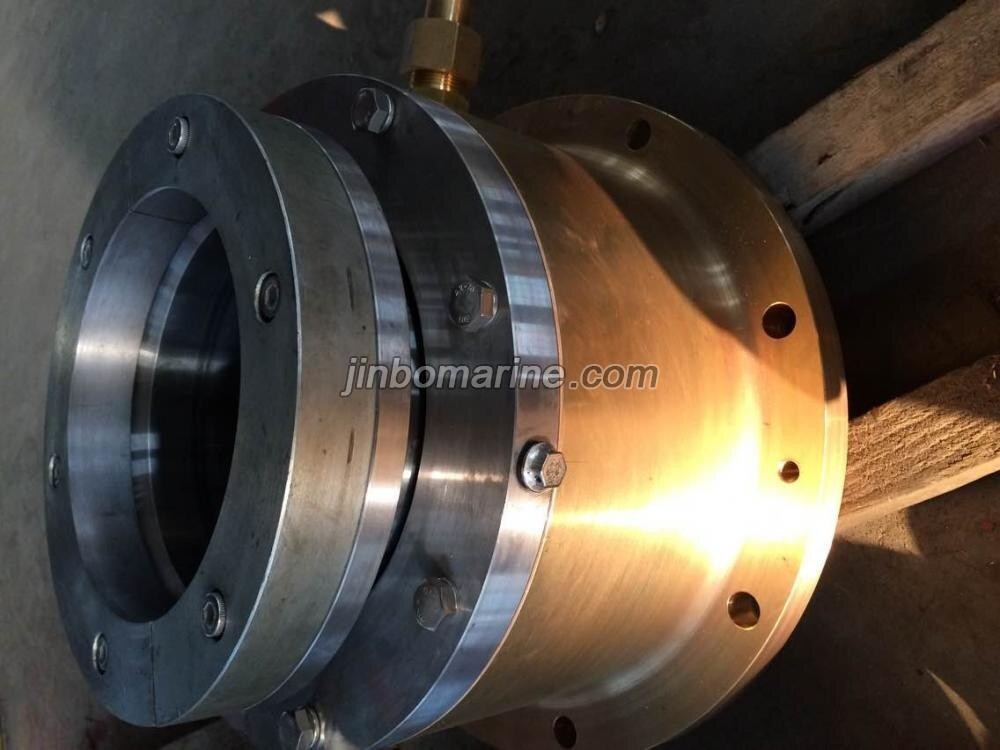

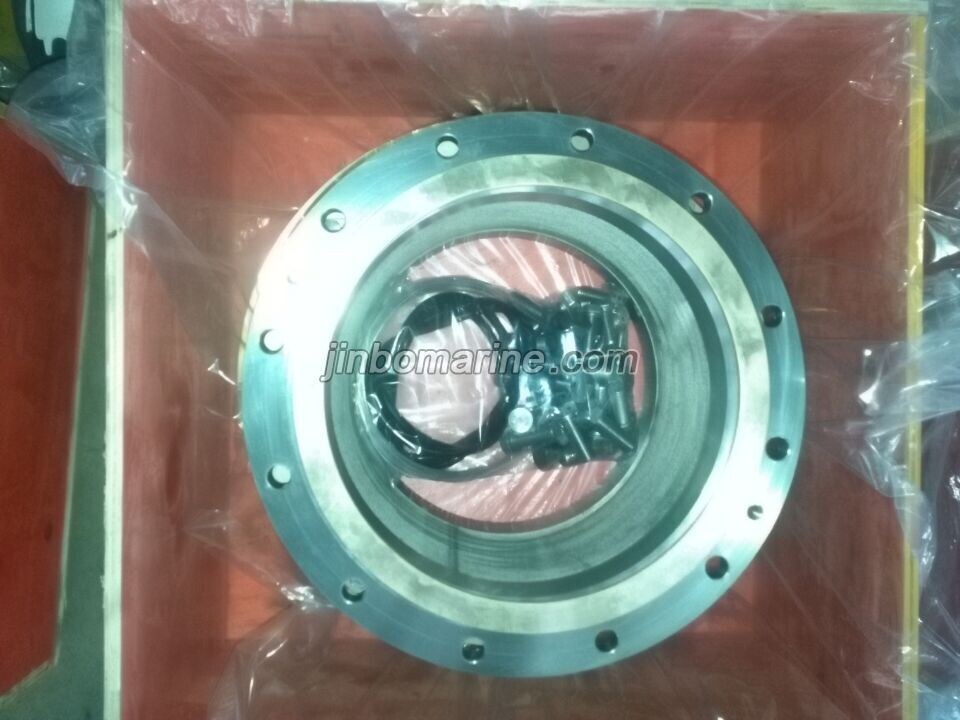

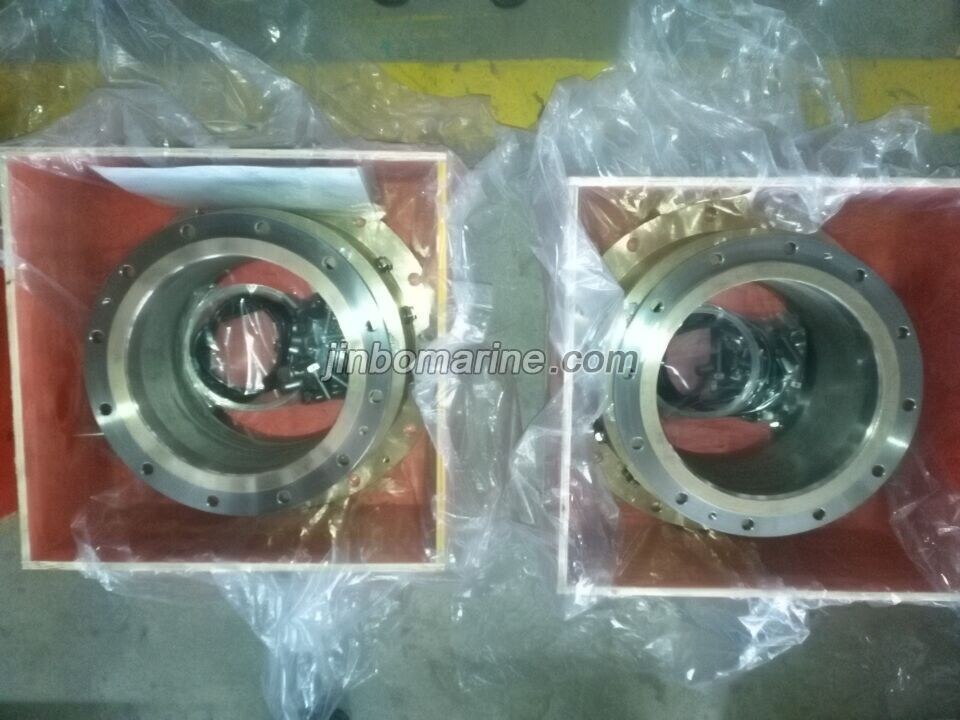

Stern Shaft Sealing Photo
