Small-Sized Marine Oil Water Separator

  • Category:Marine Oil Water Seperator
  • Standards:MEPC.107(49)
  • Certificate:CCS, BV, ABS, GL,LR, NK
  • Material:Carbon Steel
  • Packing Details:Standard Export Packaging
  • Supply Ability:10 sets/month
  • Delivery Time:15-20days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

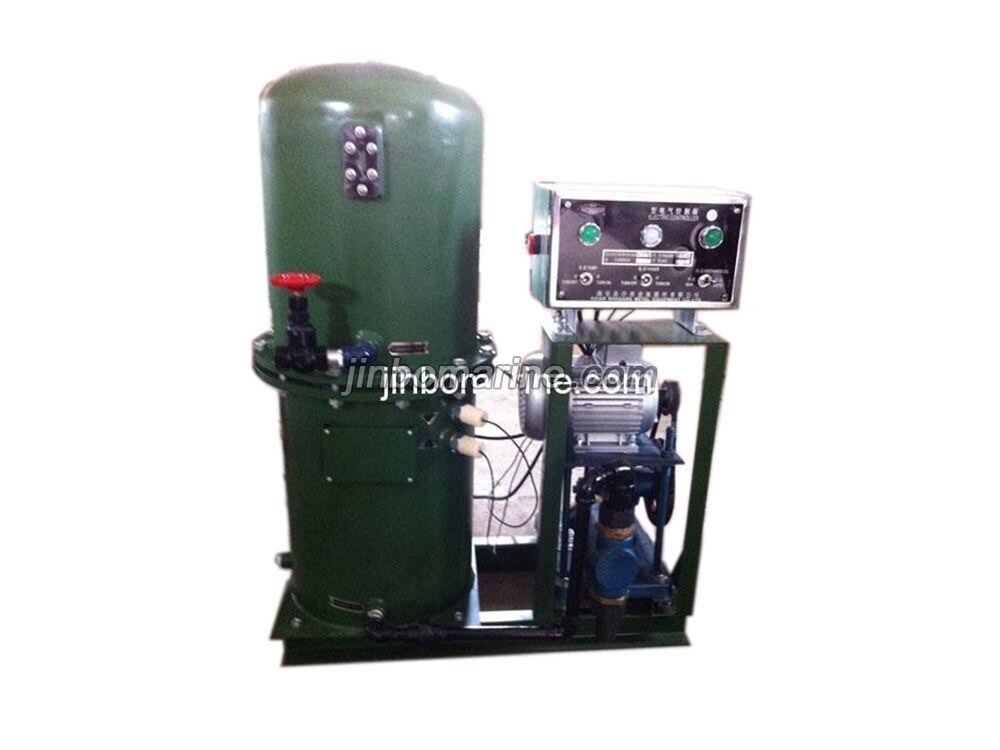

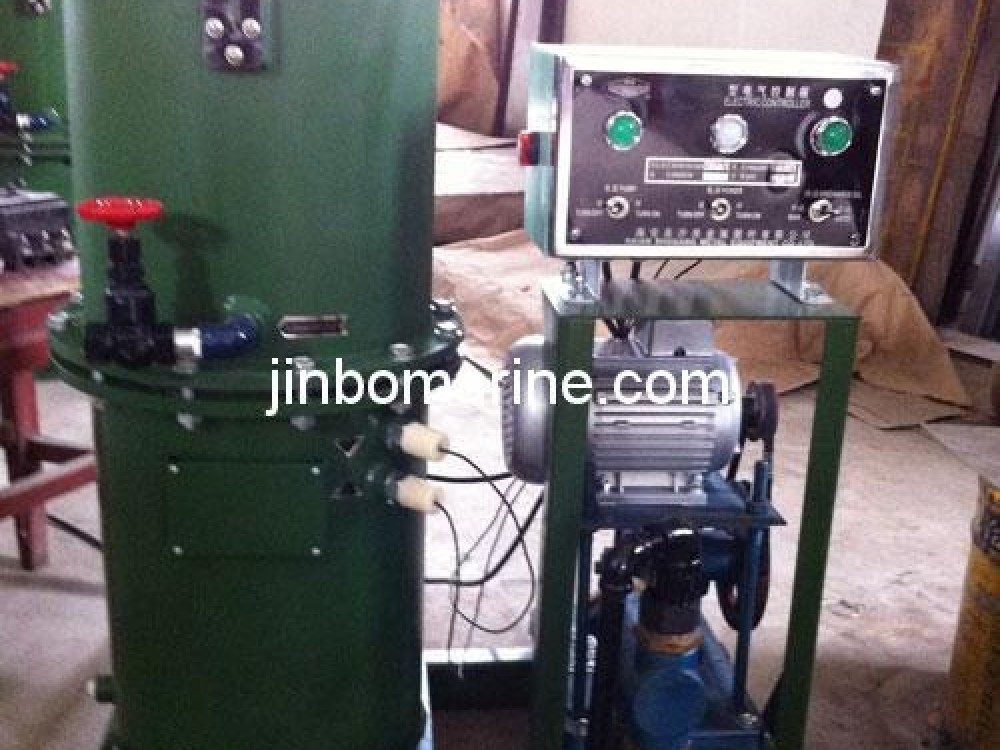

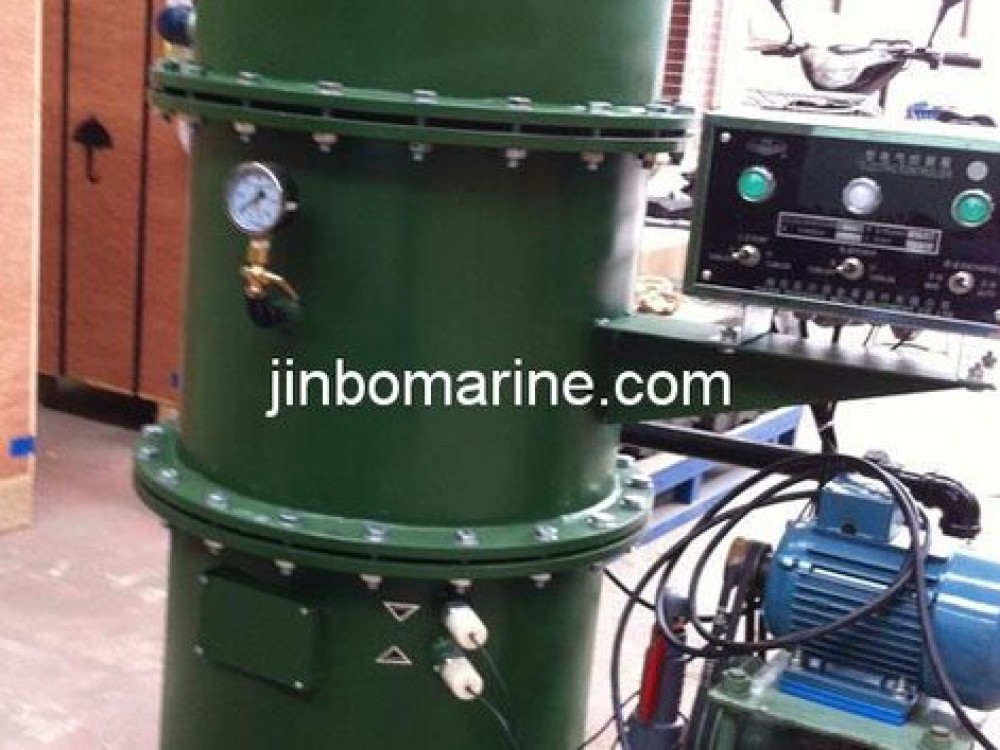

China Small-Sized Marine Oil Water Separator:

The oil water separating device can be applied to small sized vehicle ship in freshwater,and meets the reqruiements of discharging standard of MEPC.107(49). The device consists of oil water separator,grasshopper,electricity control box and something else. With compact structure,it is easy to operate,install and maintain.Besides that,it cau

ses no water pollution and saves oil and energy.

Oleaginous concetration of the contaminated water in the inlet:lowet than 150000PPM.

Working principle:It was designed according to the principle of gravity separation and coalescene,which composes the coarse separation and precise separation.

Main technical parameter:

Treatment capability

0.1 m3/hour

0.25 m3/hour

Discharging standard

Less than 15ppm

Working pressure

Less than 0.2Mpa

Matching water pump

CDZ-100

CDZ-250

Water pump,
power supply of motor

AC380V or according to the demands of customers.

Way of oil drainage

Manual / Automatic

Size of sharp

640x370x670mm

690x405x800

Diameter of inlet and outlet pipe

1/2" pipe

Weight

35kg

45kg

We still have other treatment capacity model,please contact us if you interested in it.
