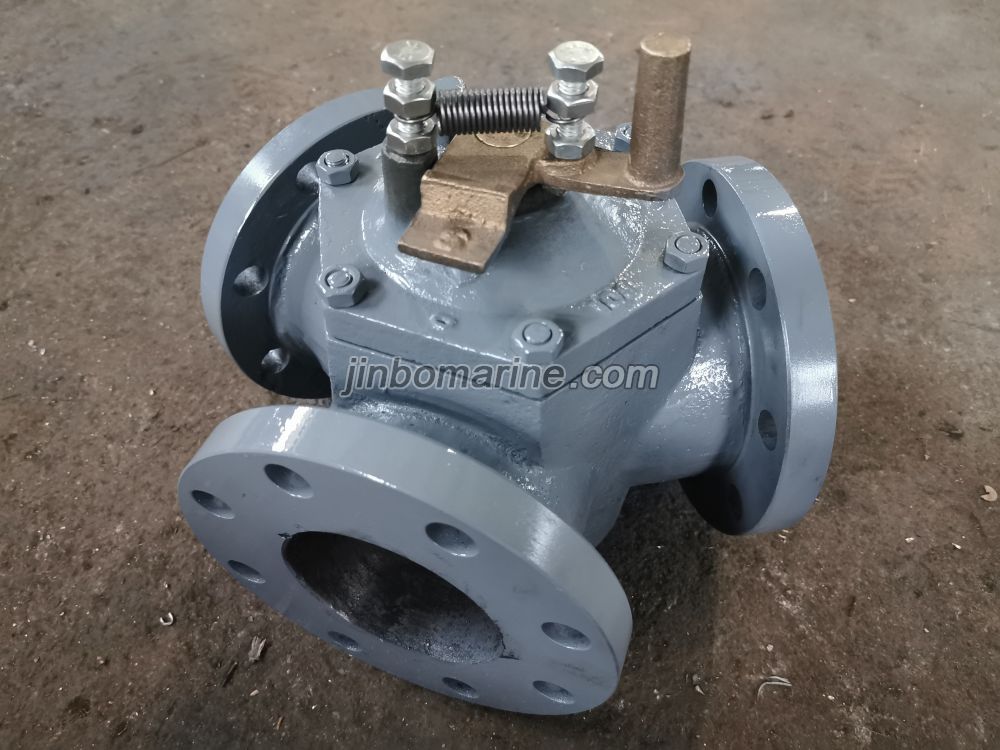

Soil Line 3 Way Valve

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Soil Line 3 Way Valve:

Soil Line 3 Way Valve

Purpose: Change for discharge line of overboard and sewage treatment tanks

Feature: Non accumulation and non space, easy operation.

Body hydrostatic test: 0.2Mpa

Material: Cast Steel or Cast Iron.

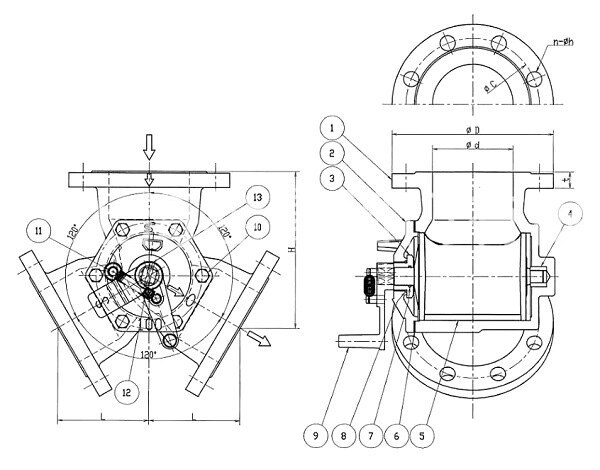

Main Size:

Model Size d L H D C n h t Weight(kgs)
SLB-100 100A 100 113 195 200 165 8 19 16 24
SLB-125 125A 125 126 218 235 200 8 19 16 36
SLB-150 150A 150 143 248 265 230 8 19 16 45
