SPL50 Model Double-cylinder Mesh Type Filter

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

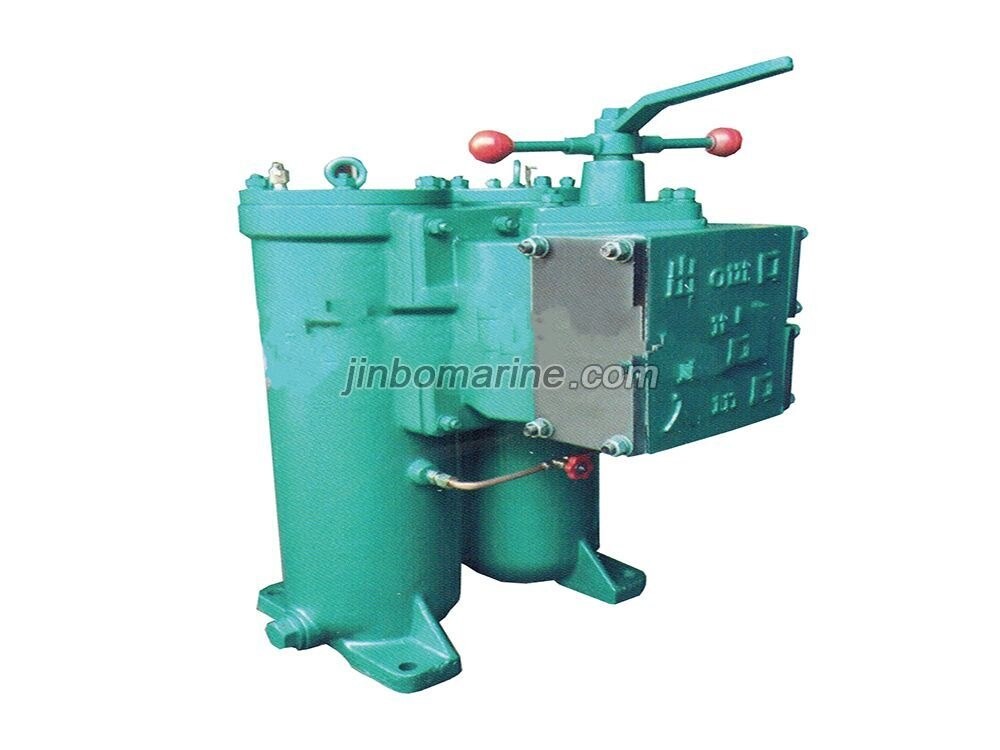

SPL50 Model Double-cylinder Mesh Type Filter

Mesh type oil filter is used in filtering fuel and lubricating oil of diesel engine

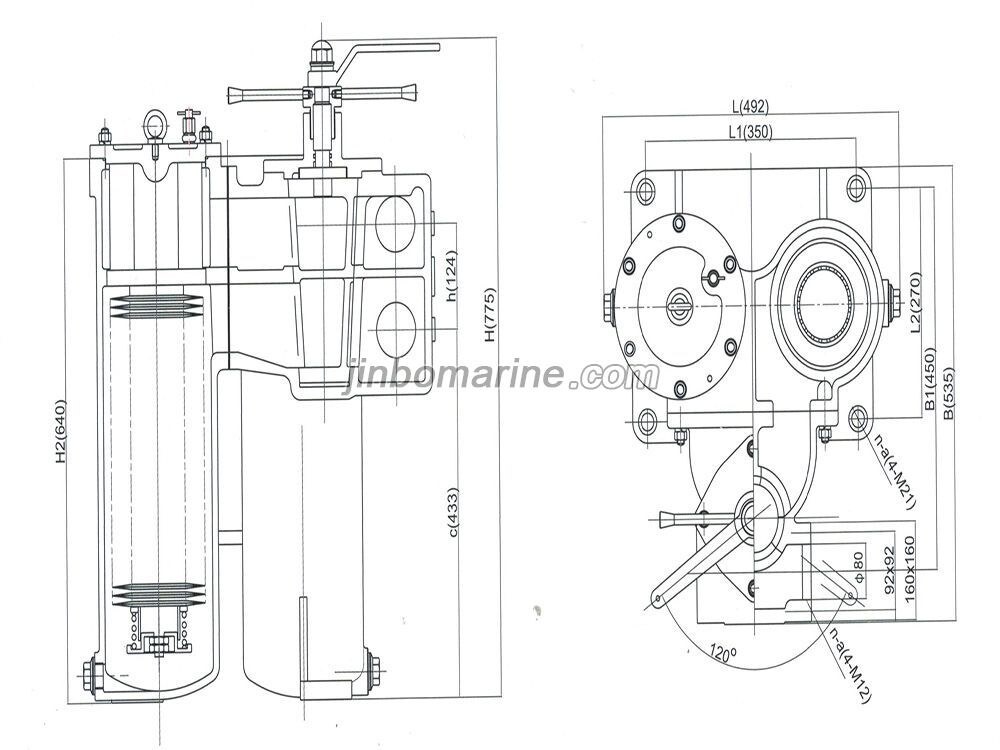

SPL50 Model Double-cylinder Mesh Type Filter Drawing



SPL50 Model Double-cylinder Mesh Type Filter Technical Parameters

Model Flow Caliber and jointing size(mm) Pipeline installing size(mm) installing size(mm) Weight(kg)
Dg D D1 n-a H B L H h1 H2 B1 C L3 L1 L2 b R
SPL25 5 25 340 232 230 65 198 293 185 385 90 156 100 12 15 14
207 260 65 143 293 175 380 90 230 100 12 15 14
SPL32 8 32 60x60 44x44 4-Φ9 380 232 230 65 263 333 185 450 90 170 100 12 15 14
207 260 65 183 333 175 450 90 230 100 12 15 14
SPL40 12 40 70x70 46x46 4-Φ9 462 261 314 70 138 368 224 110 274 130 15 20 30
SPL50 20 50 86x86 64x64 4-Φ11 535 405 410 90 190 395 335 140 260 210 18 25 75
380 410 90 190 385 335 140 350 130 18 25 75
SPL65 30 65 100x100 75x75 4-Φ11 650 430 460 105 255 500 360 160 260 210 18 25 105
400 460 105 255 490 360 160 350 130 18 25 105
SPL80 50 80 116x116 92x92 4-Φ13.5 755 535 492 124 640 450 433 190 350 270 20 25 165
SPL100 80 100 220 180 4-Φ17.5 800 840 560 200 640 681 338 300 500 330 20 32 310
SPL120 120 125 250 210 4-Φ17.5 850 920 600 220 720 725 385 300 540 370 20 32 440
SPL180 180 150 285 240 4-Φ22 890 1000 990 250 760 825 380 400 750 460 30 32 720
SPL200 320 200 340 295 4-Φ22 1065 1170 1180 315 910 960 450 400 920 520 30 40 1200
