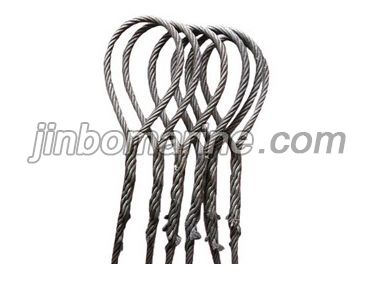

Spliced Steel Wire Rope Sling
- Category:Chain Sling
- Material:Galvanized Steel Wire Rope
- Standards:GB/T16271-1996.
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Decription
VDF06-L
V-Steel Wire Rope Sling.
Spliced Model (D-without thimble, E-with thimble).
Steel Wire Rope Core Type (F-FC, W-IWRC)
06-Steel Wire Rope Sling.
L-Steel Wire Rope effective length.
The specification of the steel wire rope used by the following working load in the table:
Dia 6mm-60mm use the construction of 6*37(b)-1670;
Dia 62mm-120mm use the construction of 8*61(b)-1670:
Dia 122mm-190mm use the construction of 8*91(ab)-1670;
Different construction of the rope means different working load, we can calculate the working load with the steel wire rope construction that the customer required.
The sling’s breaking load is 5 times of its working load.
According to the Standard GB/T16271-1996.
Technical Data
Producs type |
Dia of rope(d) (mm) |
Working load limit |

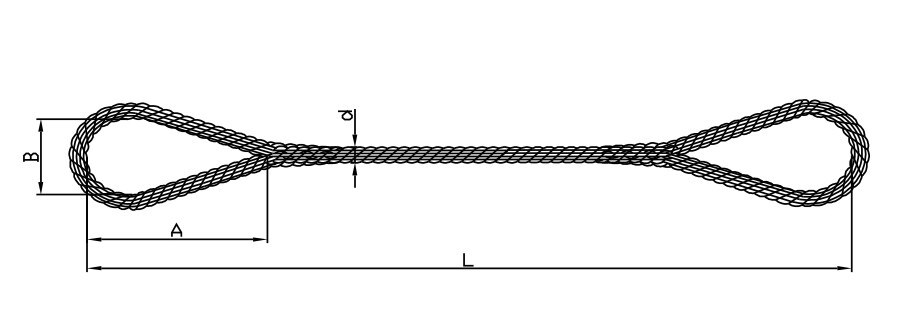

Approx.eye Ength A(mm) |
||
FC | IWR | kN | kN | ||
VAF06 | VBW06 | 6 | 3.2 | 3.4 | 180 |
VAF07 | VBW07 | 7 | 4.3 | 4.7 | 190 |
VAF08 | VBW08 | 8 | 5.7 | 6.1 | 210 |
VAF09 | VBW09 | 9 | 7.2 | 7.8 | 230 |
VAF10 | VBW10 | 10 | 8.9 | 6.9 | 230 |
VAF11 | VBW11 | 11 | 11 | 12 | 250 |
VAF12 | VBW12 | 12 | 13 | 14 | 260 |
VAF13 | VBW13 | 13 | 15 | 16 | 260 |
VAF14 | VBW14 | 14 | 17 | 19 | 280 |
VAF16 | VBW16 | 16 | 23 | 24 | 320 |
VAF18 | VBW18 | 18 | 29 | 31 | 360 |
VAF20 | VBW20 | 20 | 35 | 38 | 400 |
VAF22 | VBW22 | 22 | 43 | 46 | 440 |
VAF24 | VBW24 | 24 | 51 | 55 | 480 |
VAF26 | VBW26 | 26 | 60 | 65 | 520 |
VAF28 | VBW28 | 28 | 69 | 75 | 560 |
VAF30 | VBW30 | 30 | 80 | 86 | 600 |
VAF32 | VBW32 | 32 | 91 | 98 | 640 |
VAF34 | VBW34 | 34 | 102 | 110 | 680 |
VAF36 | VBW36 | 36 | 115 | 124 | 720 |
VAF38 | VBW38 | 38 | 128 | 138 | 760 |
VAF40 | VBW40 | 40 | 142 | 153 | 800 |
VAF42 | VBW42 | 42 | 157 | 169 | 840 |
VAF44 | VBW44 | 44 | 172 | 185 | 880 |
VAF46 | VBW46 | 46 | 187 | 203 | 920 |
VAF48 | VBW48 | 48 | 203 | 220 | 960 |
VAF50 | VBW50 | 50 | 221 | 240 | 1000 |
VAF52 | VBW52 | 52 | 239 | 259 | 1040 |
VAF54 | VBW54 | 54 | 258 | 279 | 1080 |
VAF56 | VBW56 | 56 | 277 | 301 | 1120 |
VAF58 | VBW58 | 58 | 298 | 322 | 1160 |
VAF60 | VBW60 | 60 | 319 | 345 | 1200 |
VDF62 | VDW62 | 62 | 241 | 286 | 1240 |
VDF64 | VDW64 | 64 | 257 | 304 | 1280 |
VDF66 | VDW66 | 66 | 274 | 324 | 1320 |
VDF68 | VDW68 | 68 | 291 | 344 | 1360 |
VDF70 | VDW70 | 70 | 308 | 365 | 1400 |
VDF72 | VDW72 | 72 | 326 | 386 | 1440 |
VDF74 | VDW74 | 74 | 344 | 407 | 1480 |
VDF76 | VDW76 | 76 | 363 | 430 | 1520 |
VDF78 | VDW78 | 78 | 383 | 453 | 1560 |
VDF80 | VDW80 | 80 | 402 | 476 | 1600 |
VDF82 | VDW82 | 82 | 423 | 500 | 1640 |
VDF84 | VDW84 | 84 | 444 | 525 | 1680 |
VDF86 | VDW86 | 86 | 465 | 550 | 1720 |
VDF88 | VDW88 | 88 | 487 | 576 | 1760 |
VDF90 | VDW90 | 90 | 509 | 603 | 1800 |
VDF92 | VDW92 | 92 | 532 | 630 | 1840 |
VDF94 | VDW94 | 94 | 556 | 657 | 1880 |
VDF96 | VDW96 | 96 | 579 | 686 | 1920 |
VDF98 | VDW98 | 98 | 604 | 714 | 1960 |
VDF100 | VDW100 | 100 | 629 | 744 | 2000 |
VDF102 | VDW102 | 102 | 654 | 774 | 2040 |
VDF104 | VDW104 | 104 | 680 | 805 | 2080 |
VDF106 | VDW106 | 106 | 707 | 836 | 2120 |
VDF108 | VDW108 | 108 | 733 | 868 | 2160 |
VDF110 | VDW110 | 110 | 761 | 900 | 2200 |
VDF112 | VDW112 | 112 | 789 | 933 | 2240 |
VDF114 | VDW114 | 114 | 817 | 967 | 2280 |
VDF116 | VDW116 | 116 | 846 | 1001 | 2320 |
VDF118 | VDW118 | 118 | 876 | 1036 | 2360 |
VDF120 | VDW120 | 120 | 905 | 1071 | 2400 |
VDF122 | VDW122 | 122 | 1006 | 1252 | 2440 |
VDF124 | VDW124 | 124 | 1039 | 1294 | 2480 |
VDF126 | VDW126 | 126 | 1074 | 1336 | 2520 |
VDF128 | VDW128 | 128 | 1108 | 1378 | 2560 |
VDF130 | VDW130 | 130 | 1143 | 1422 | 2600 |
VDF132 | VDW132 | 132 | 1179 | 1467 | 2640 |
VDF138 | VDW138 | 138 | 1288 | 1605 | 2760 |
VDF140 | VDW140 | 140 | 1326 | 1650 | 2800 |
VDF142 | VDW142 | 142 | 1363 | 1695 | 2840 |
VDF144 | VDW144 | 144 | 1402 | 1740 | 2880 |
VDF146 | VDW146 | 146 | 1441 | 1800 | 2920 |
VDF148 | VDW148 | 148 | 1482 | 1845 | 2960 |
VDF150 | VDW150 | 150 | 1515 | 1890 | 3000 |
