Stainless Steel Float Disc for Air Vent Head
- Category:Other Marine Valves & Accessories
- Material:SUS304
- Certificate:Mill Certificate
- Delivery Time:3-7days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

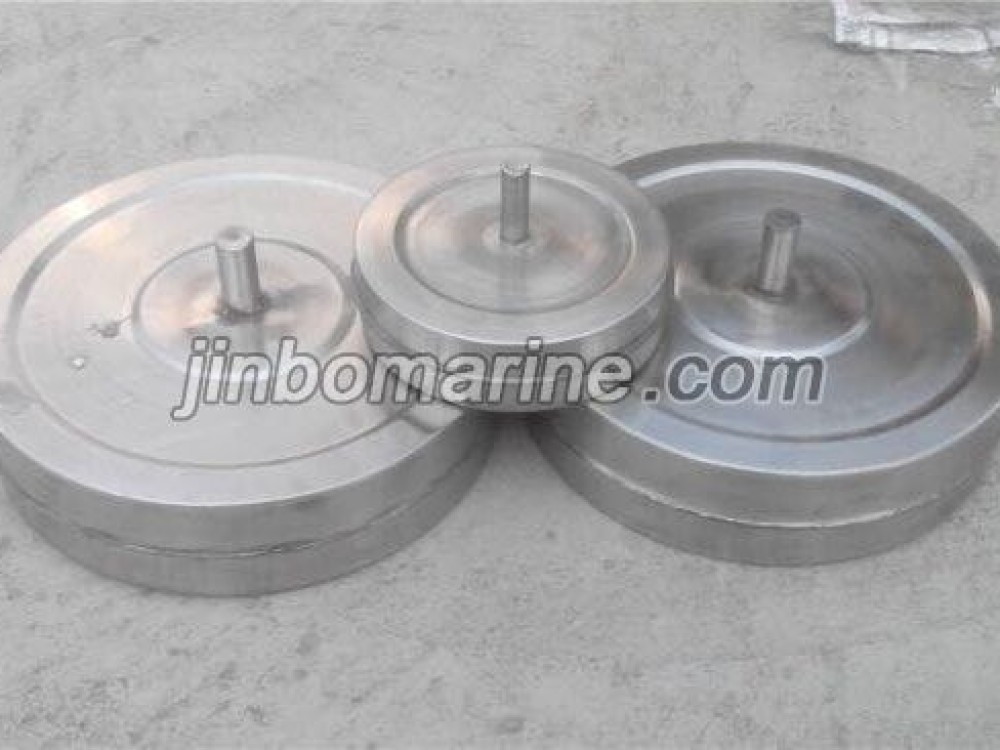

China Stainless Steel Float Disc for Air Vent Head:
Stainless Steel Float Disc is the float disc of air vent head CB/T3594.
Material: SUS304, SUS316
Main Size(mm):
| Size | Outer Diameter | Disc Height | Total Height | Stem Size |
| DN50 | Φ64 | 34 | 45 | 14*1 |
| DN65 | Φ84 | 34 | 50 | 14*1 |
| DN80 | Φ94 | 34.5 | 50 | 14*1 |
| DN80 | Φ104 | 34.5 | 50 | 14*1 |
| DN100 | Φ112 | 37 | 65 | 14*1 |
| DN100 | Φ122 | 37 | 65 | 14*1 |
| DN125 | Φ136 | 39 | 70 | 14*1 |
| DN125 | Φ140 | 39 | 70 | 14*1 |
| DN150 | Φ160 | 45 | 80 | 14*1 |
| DN150 | Φ174 | 45 | 80 | 14*1 |
| DN200 | Φ220 | 56 | 100 | 19*1 |
| DN200 | Φ230 | 56 | 100 | 19*1 |
| DN250 | Φ282 | 62 | 130 | 19*1 |
| DN300 | Φ340 | 78 | 140 | 19*1 |
| DN350 | Φ375 | 73 | 160 | 19*1 |
Remarks:
If the above size is not suitable for your original air vent head, we only can manufacture accoring to your size requirement.
