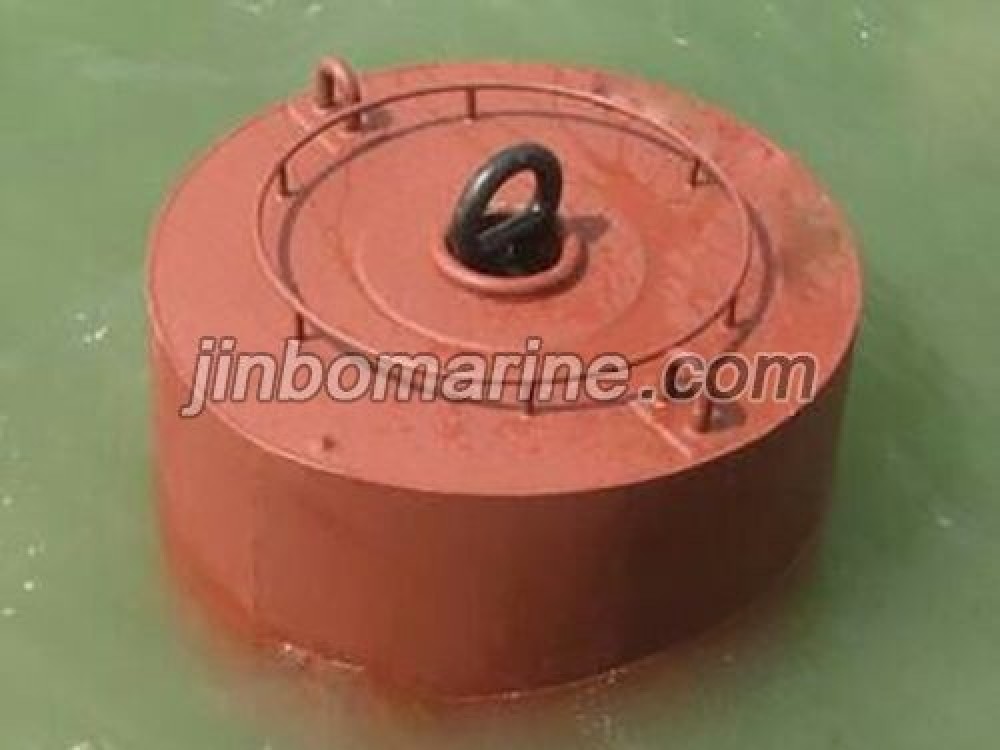

Steel Anchorage Anchor Buoy
- Category:Navigation Buoy
- Material:Steel plate
- Packing Details:Nude packaging.
- Delivery Time:10 to 20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Steel mooring buoy.
Hollow type.
We can customized the steel mooring buoy as per client requirement.
Feature:
Low weight,easy to install,steady.
No pollution to environment.
No need to maintain.
High impact resistance, UV protection,Antifreeze, Anti-seawater.
Size Chart:
|
Size
|
XF-1.5 | XF-2.0 | XF-3.3(G111) | XF-3.7(G111) | XF-4.0(G1) |
| Mooring ring（m） | 0.4 | 0.5 | 0.6 | 0.6 | 0.6 |
| Floating drum material | Steel plate | ||||
| Buoy diameter（m） | 1.5 | 2 | 3.3 | 3.7 | 4 |
| Buoy height（m） | 1 | 1.2 | 1.8 | 2 | 2.2 |
| Freeboard height（m） | 0.7 | 0.8 | 1 | 1.2 | 1.5 |
| Max swing angle（°） | 3～5 | ||||
| Maximum buoyancy（m） | 1.5 | 3.5 | 15 | 21 | 27.3 |
| Net buoyancy（t） | 1 | 2 | 12 | 18 | 21 |
| Mooring line（mm） | 38 | 60 | 90 | 100 | 100 |
| Suitable water depth（m） | 5～10 | 10～15 | 15～20 | 20～25 | 25～30 |
| Suitable ship tonnage（t） | <1800 | <2000 | <8000 | <10000 | <11000 |
