Steel Navigation Buoy
- Category:Navigation Buoy
- Material:Steel
- Supply Ability:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

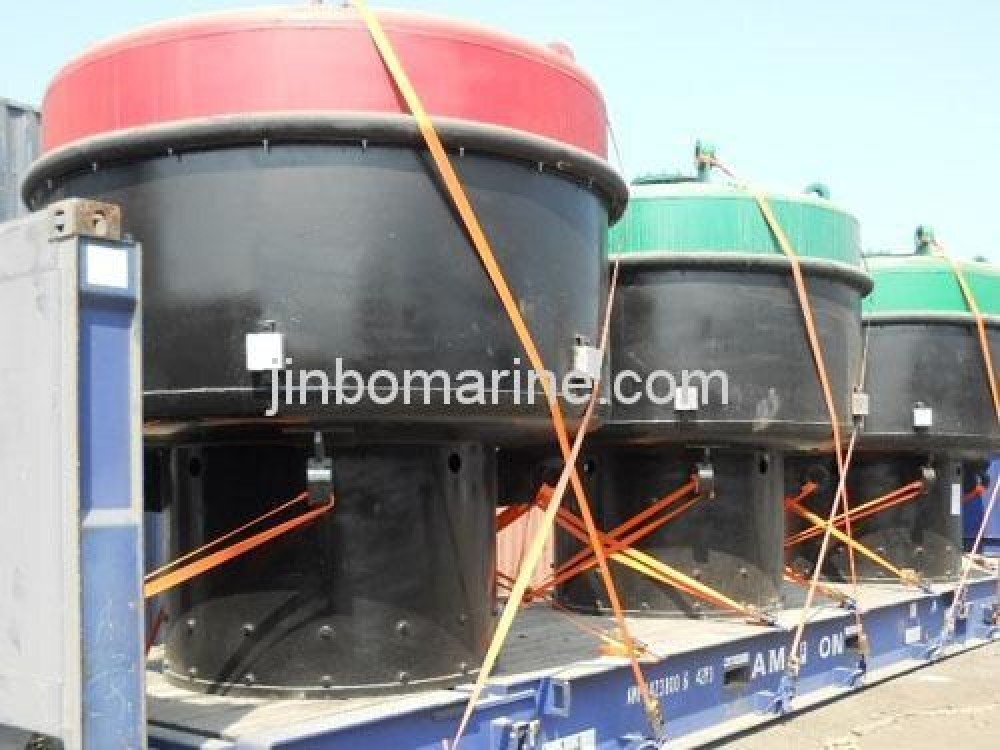

China Steel Navigation Buoy:
Steel Navigation Buoy used as Navigation Marks in Ocean, Inland River and Offshore Oil Platform, diameter is from 0.5M to 8M.
Main Specification
| Type | Dia.(m) | Lamp Bracket(m) | Focal Plane Height(m) | Lamp | Draught(m) | Buoy Depth(m) | Weight(T) |
| JB0.8-D1 | 0.8 | 1.0-1.5 | 1.5-2.0 | LED | 0.5-1.5 | 3.5-15 | 0.6 |
| JB1.0-D1 | 1 | 1.5-2.0 | 2.0-2.5 | LED | 1.5-1.5 | 3.5-15 | 0.8 |
| JB1.2-D1 | 1.2 | 2.0-3.0 | 2.5-3.5 | LED | 1.5-2.8 | 3.5-15 | 0.9 |
| JB1.5-D1 | 1.5 | 2.0-3.0 | 2.5-3.5 | LED | 1.5-2.8 | 3.5-15 | 1.2 |
| JB1.8-D1 | 1.8 | 3.0-4.0 | 3.6-4.8 | LED | 1.5-2.8 | 6-25 | 1.8 |
| JB2.4-D1 | 2.4 | 3.0-4.0 | 3.5-5.5 | LED | 2.0-3.0 | 13-40 | 4.2 |
| JB3.0-D1 | 3 | 3.5-5.0 | 4.5-6.0 | LED | 2.0-3.0 | 13-40 | 4.8 |
| JB3.6-D1 | 3.6 | 3.5-5.0 | 4.5-6.0 | LED | 2.0-3.0 | 13-40 | 5.8 |
| JB6.0-D1 | 6 | 4.5-6.0 | 4.5-6.0 | LED | 2.0-3.0 | 13-40 | * |
| JB8.0-D1 | 8 | 6.0-12 | 6.0-12 | LED | 2.0-3.0 | 20-80 | * |
