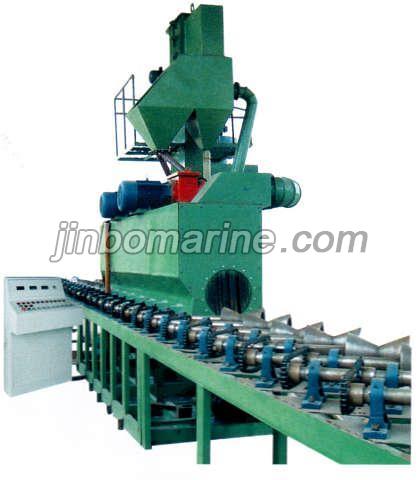

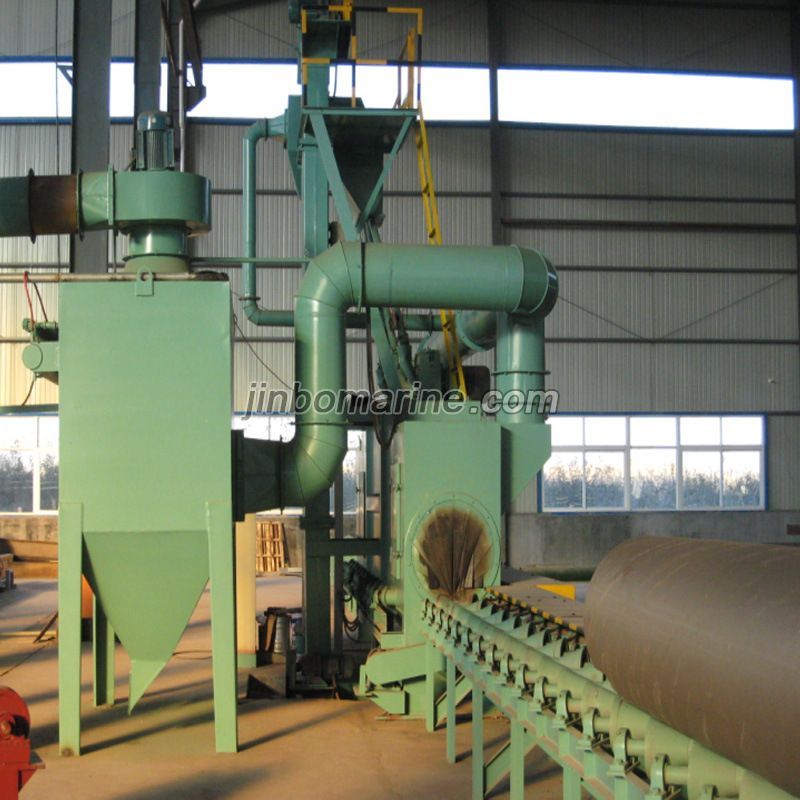

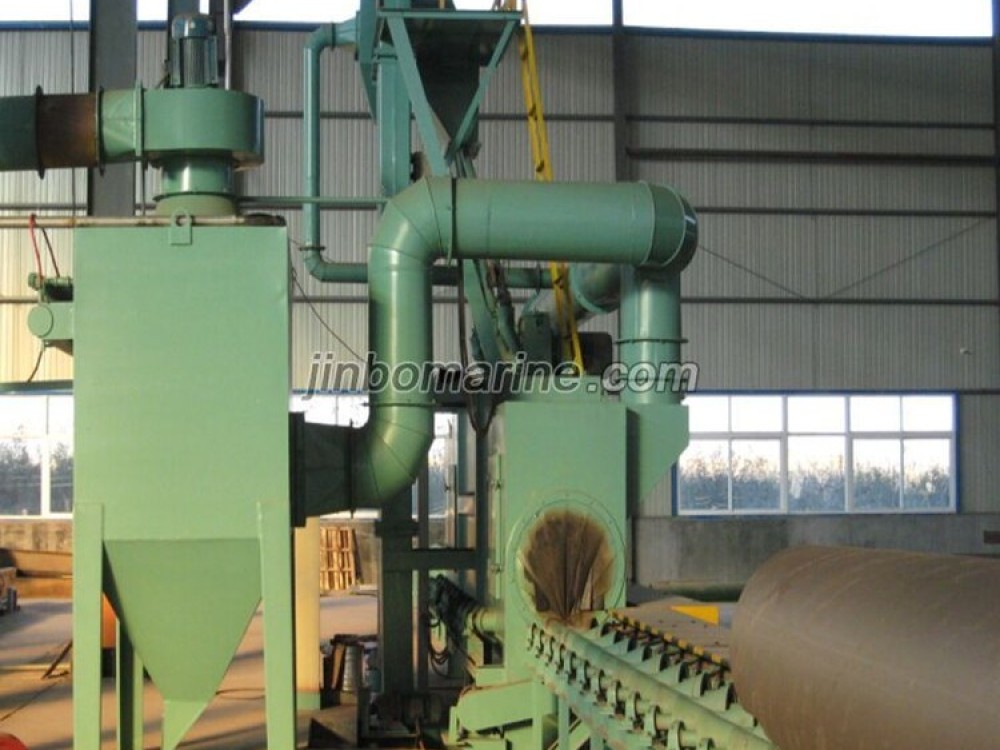

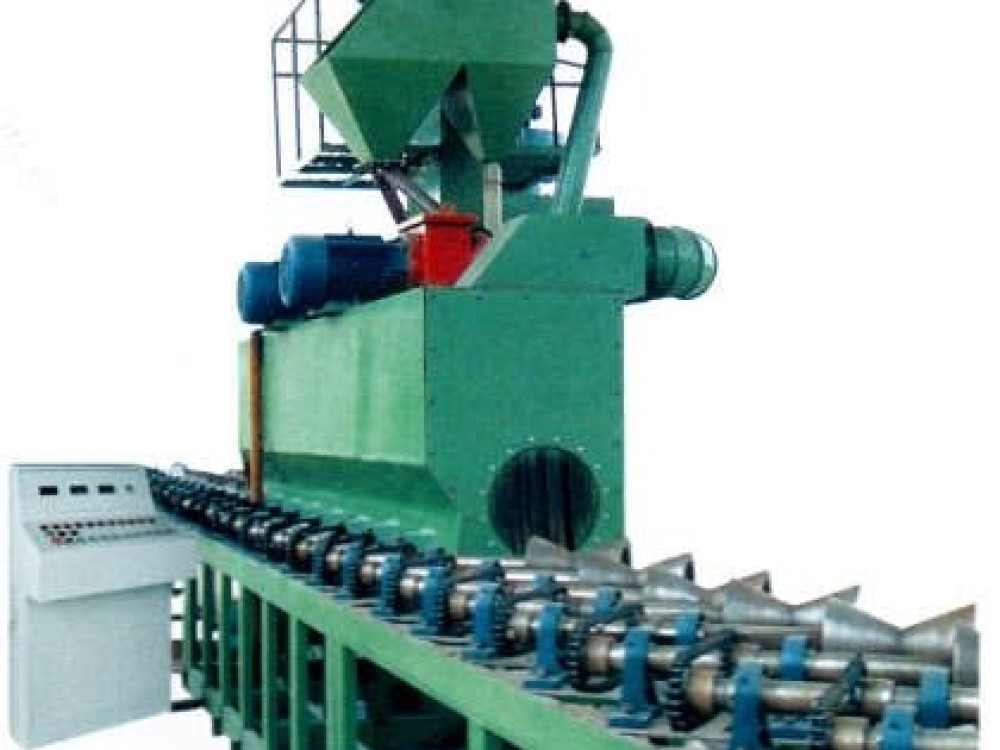

Steel Pipe Outter Shot Blasting Machine

Request a Quote Not what you need, please send your RFQs via Email.

Details

Introduction

It is suitable for blast cleaning, the outer wall of steel pipe to remove the workpiece surface adhering sand, rust, scale, dirt, etc. So the outer wall of steel pipe shot blasting cleaning machine with powerful cleaning function can make the surface presents metal color, eliminate the internal stress of workpiece, improve the anti-fatigue performance, achieve the purpose of improve the quality of workpiece surface and internal, and ultimately improve the corrosion resistance, mechanical products and metal materials for the second outer wall of steel pipe shot blasting cleaning machine can improve the fatigue resistance of steel, prolong the service life and status of process and optimization of steel surface, achieve the goal of completely clean.

This machine is a pass-through type, the roller table continuously conveys the workpiece, rotates while moving, and does not require manual feeding. The machine has advanced technology, high production efficiency and good cleaning effect.

Technical Parameter

Diameter of workpiece to be cleaned φ370 ~1050mm Separator separation amount 50t/h
Length of workpiece to be cleaned 6-18m Longitudinal screw conveyor conveying capacity 50t/h
Roller diameter φ400mm Transverse screw conveyor conveying capacity 50t/h
Roller speed 1~4m/min projectile diameter φ0.8-1.2mm
Roller conveying pipe speed 1.1 ~3m/min total ventilation 10600m3/h
Shot blasting machine quantity, power 2 units 22kw(total) Total power (including dust collector) 83.9kw
Shot blasting weight 350kg/minX2 Lifting capacity of hoist 50T/h
Cleaning room dimensions 10000x2600x2500mm Total Machine Weight (Approx.) 48863kg
Machine dimensions 36500X3200X7345mm underground depth 3850mm
