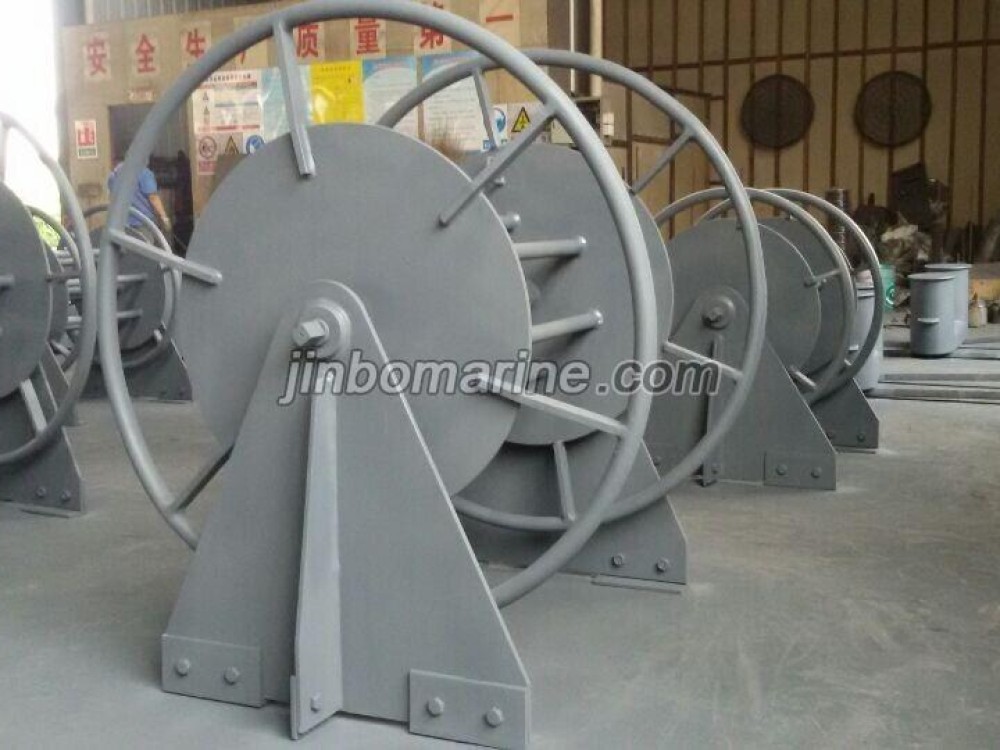

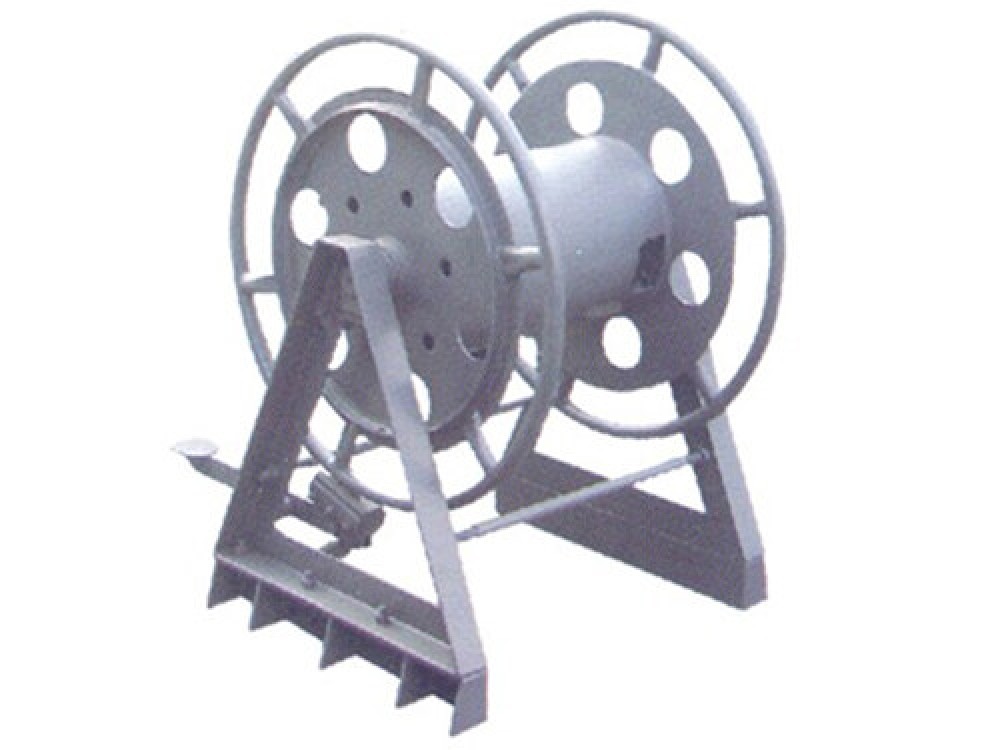

Steel Wire Reel JISF 3430-1980
- Category:Marine Winch
- Material:Cast Steel
- Standards:JISF 3430-1980
- Certificate:ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Steel Wire Reel JISF 3430-1980:
it also can be named as marine steel wire mooring reel,steel wire rope reel for ship,ship steel wire rope reel,marine steel wire rope mooring reel,marine rope reel for mooring,mooring rope reel,mooring wire reel etc.
Feature:
1.Can be produced according to drawing
2.Certificate:ABS,BV,GL,etc.
3.Used for storage of steel wire rope
Product description:
1.Steel wire rope dia.: 13mm---32mm
2. Steel wire rope length: 120-190m
3.Material: Marine grade cast steel
4.Use for the storage of ship steel wire rope on all kinds of ships.
5.All kinds of wire reel,mooring reel can be provide.

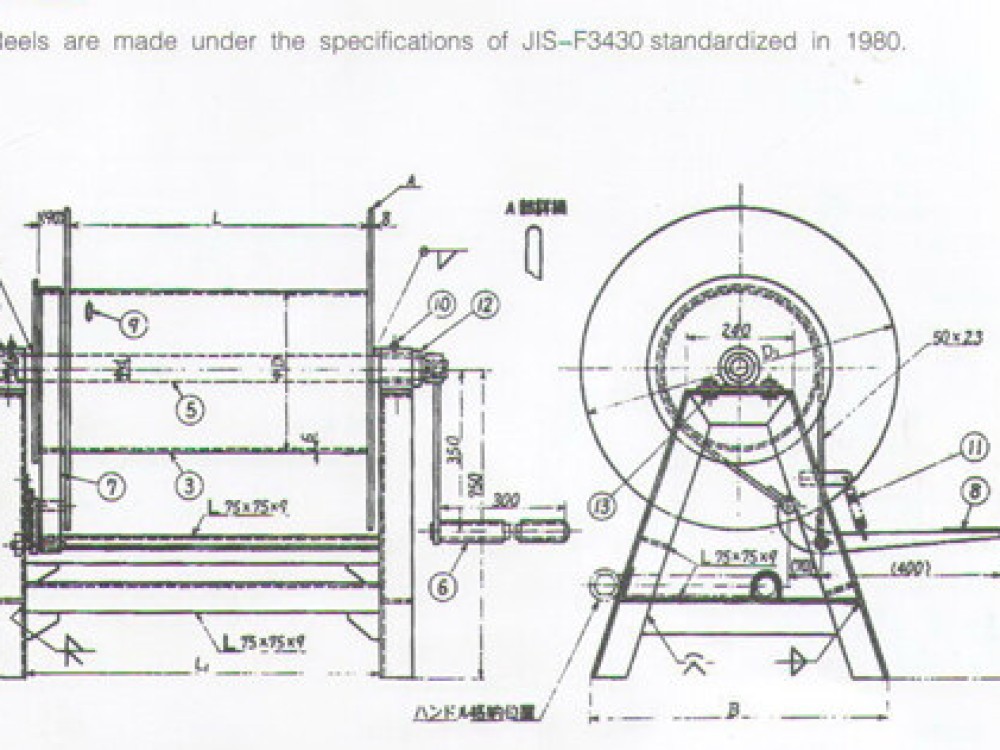

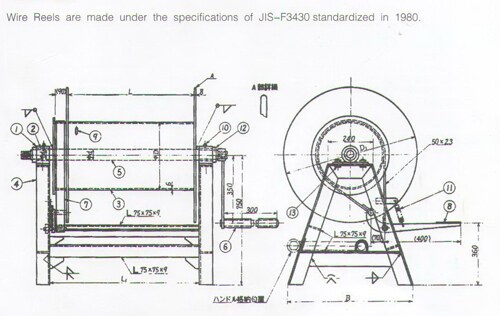

| Steel Wire Reel JISF 3430-1980 | |||||||||
| Nominal size | B | D | D1 | d | d1 | L | L1 | Winding capacity | Weight(kg) |
| 35 | 650 | 350 | 700 | 50 | 40 | 800 | 950 | Φ25*200m | 190 |
| 38 | 650 | 380 | 780 | 55 | 45 | 850 | 1000 | Φ28*200m | 215 |
| 40 | 700 | 400 | 850 | 60 | 50 | 900 | 1050 | Φ31.5*200m | 240 |
