Studless Link Anchor Chain
- Category:Anchor Chain
- Material:CM490, CM690
- Certificate:ABS, LR, BV, DNV, NK, GL, KR, NK, IRS,CCS
- Packing Details:Ton Bags
- Delivery Time:30 DAYS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Studless Link Anchor Chain:

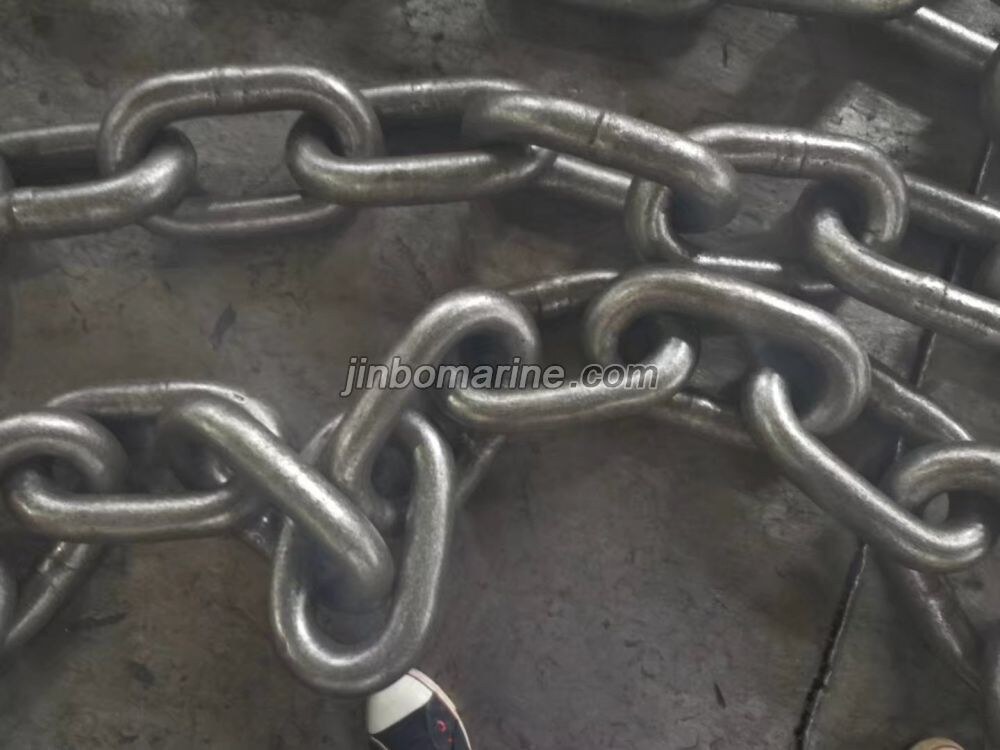

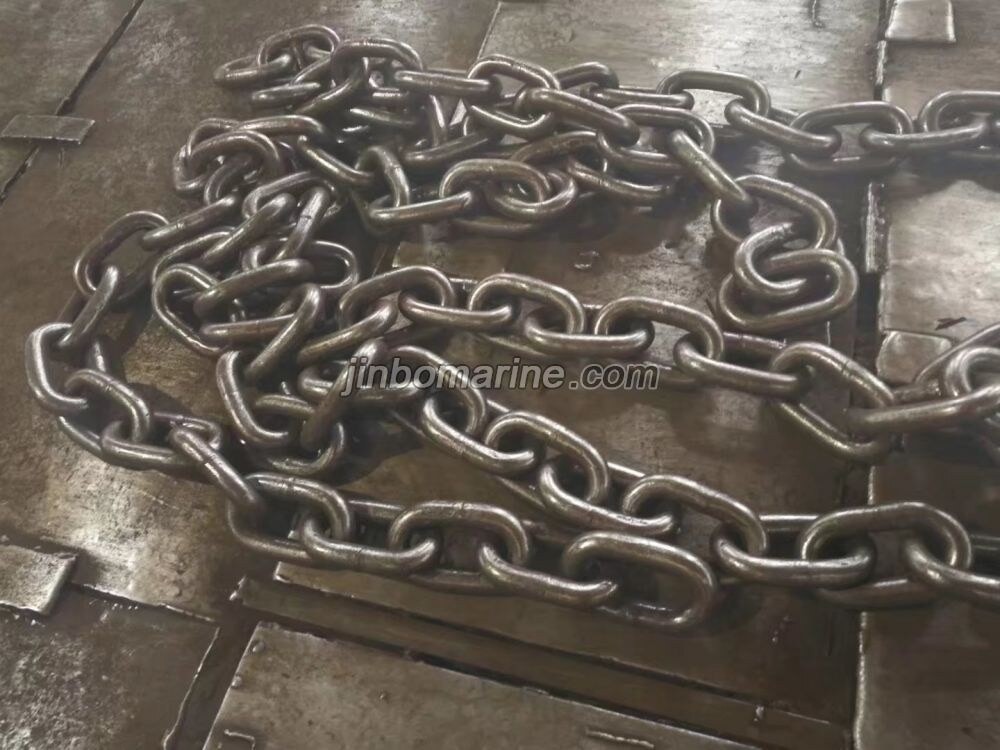

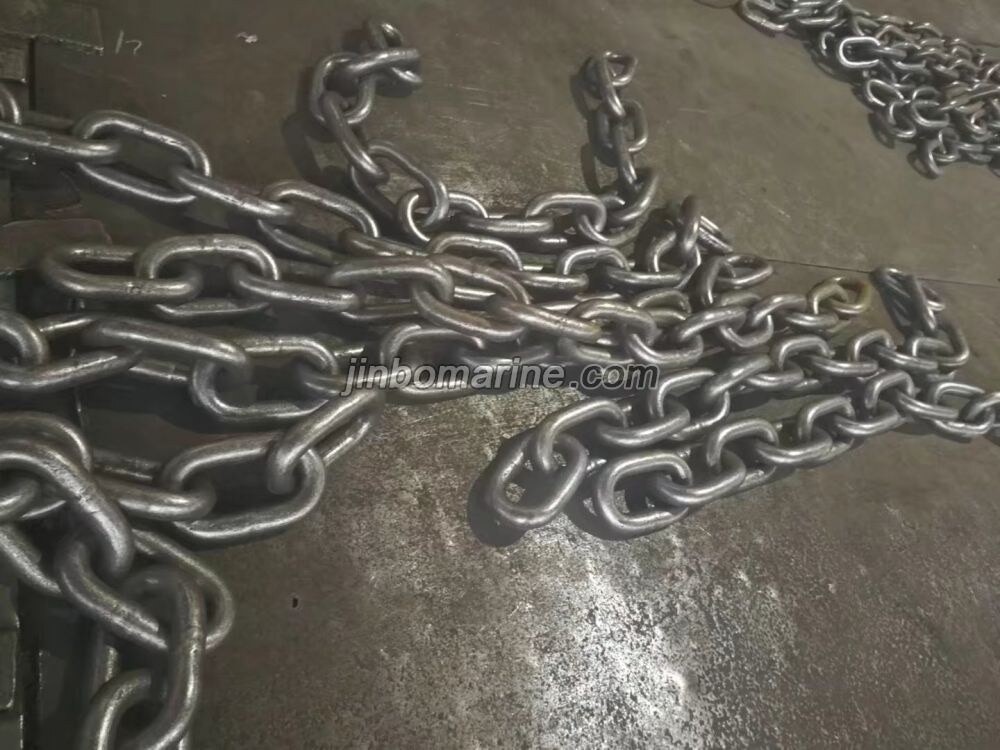

Studless Link Anchor Chain also called Open Link Anchor Chain, The size is from 12.5mm to 50mm, High quality and Fast Delivery.
Material: CM490, CM690
Size: 12.5mm to 50mm
Grade: BM2, BM3

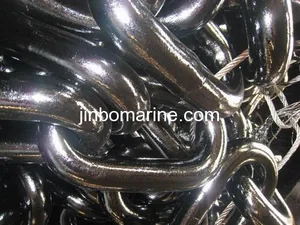

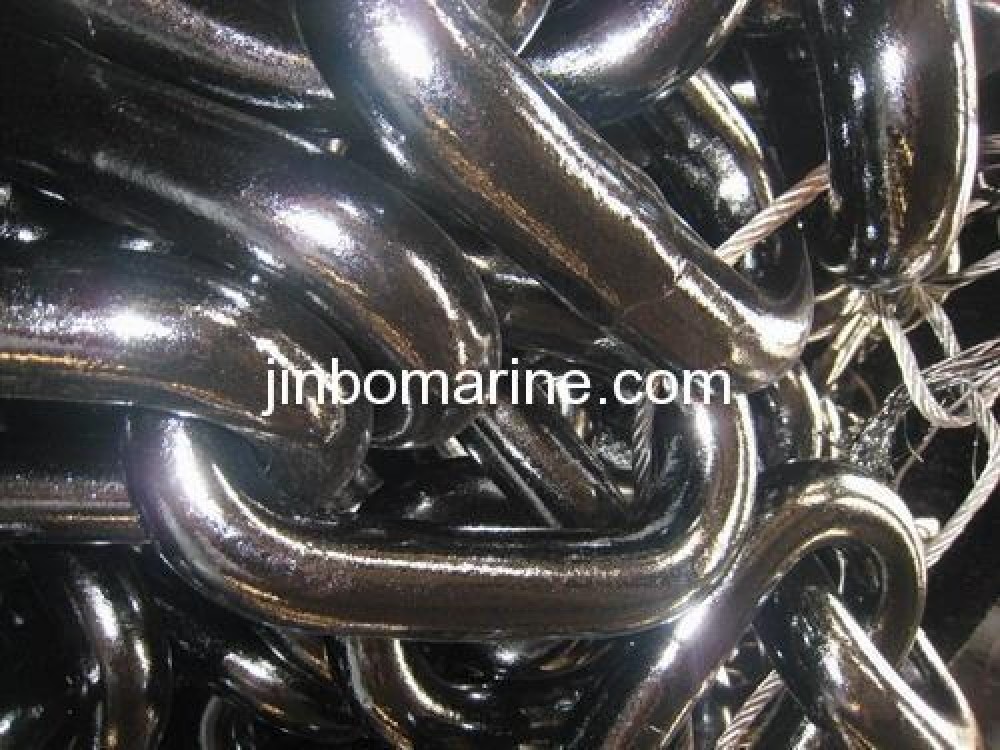

Finish: Black Painted.
Link Size: 6DX3.6D (D:diameter)
Main Specification:
| Diamter | CHAIN LINK SIZE | BM2 | BM3 | APPROX. | |||
| U2 OPEN LINK CHAIN | U3 OPEN LINK CHAIN | WEIGHT | |||||
| 27.5M | |||||||
| OUTSIDE | OUTSIDE | PROOF | BREAKING | PROOF | BREAKING | KG | |
| LENGTH | WIDTH | LOAD | LOAD | LOAD | LOAD | ||
| MM | MM | MM | KN | KN | KN | KN | |
| 12.5 | 75 | 45 | 41.2 | 82.6 | 56.4 | 112.8 | 85.41 |
| 14 | 84 | 50.4 | 51 | 101.9 | 70.76 | 141.51 | 106.55 |
| 16 | 96 | 57.6 | 66.2 | 132.3 | 92.42 | 184.83 | 139.43 |
| 17.5 | 105 | 63 | 78.89 | 157.78 | 110.55 | 221.1 | 178.35 |
| 19 | 114 | 68.4 | 93.6 | 187.2 | 130.32 | 260.64 | 217.68 |
| 20.5 | 123 | 73.8 | 108.64 | 217.27 | 151.7 | 303.42 | 229.14 |
| 22 | 132 | 79.2 | 125.4 | 250.9 | 174.4 | 349.4 | 264.49 |
| 24 | 144 | 86.4 | 149.9 | 298.9 | 207.9 | 415.8 | 341.82 |
| 26 | 156 | 93.6 | 175.4 | 350.8 | 244 | 488 | 369.94 |
| 28 | 168 | 100.8 | 203.8 | 406.7 | 283 | 566 | 427.04 |
| 30 | 180 | 108 | 234.2 | 467.5 | 324.9 | 649.8 | 490.98 |
| 32 | 192 | 115.2 | 265.6 | 531.2 | 369.6 | 739.3 | 559.65 |
| 34 | 204 | 122.4 | 299.9 | 599.8 | 417.3 | 834.6 | 671.52 |
| 36 | 216 | 129.6 | 336.1 | 672.3 | 467.8 | 935.7 | 707.85 |
| 38 | 228 | 136.8 | 374.4 | 748.7 | 521.3 | 1042.5 | 788.98 |
| 40 | 240 | 144 | 414.5 | 829.1 | 577.6 | 1155.2 | 869.36 |
| 42 | 252 | 151.2 | 457.7 | 915.3 | 636.8 | 1273.6 | 959.3 |
| 44 | 264 | 158.4 | 502.7 | 999.6 | 698.9 | 1398 | 1111.25 |
| 46 | 276 | 165.6 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1152.07 |
| 48 | 288 | 172.8 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1256.26 |
| 50 | 300 | 180 | 648.8 | 1239.6 | 902.5 | 1805 | 1360.41 |
