Swage Eye Terminal, SS304 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

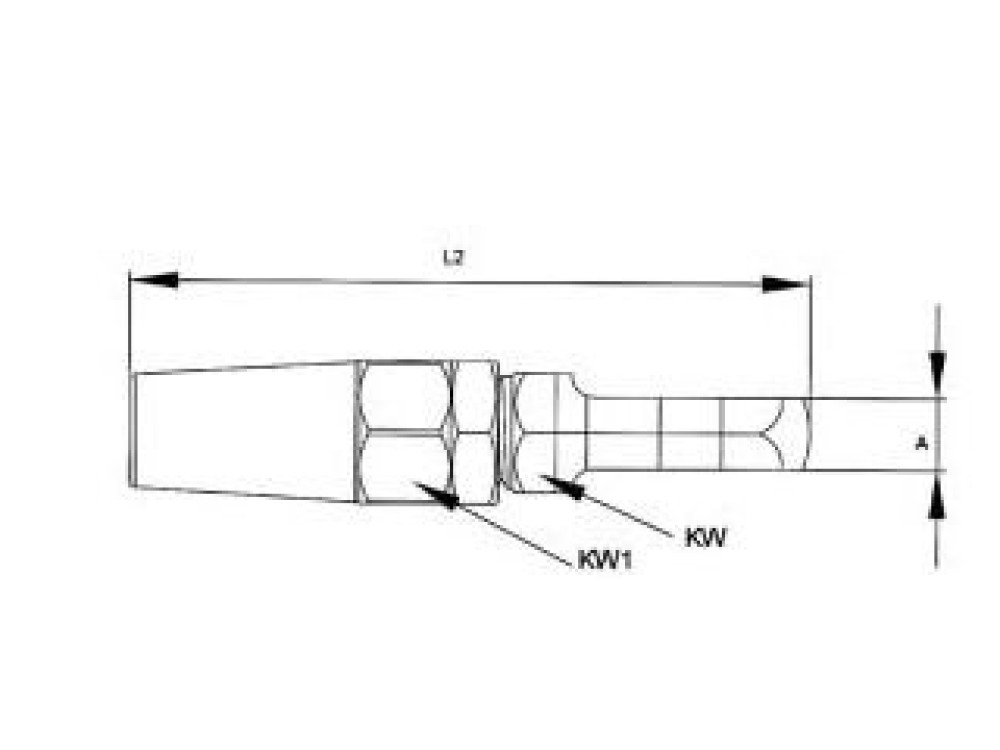

China Swage Eye Terminal, SS304 OR SS316:

SIZE
DI DIAMWIRE(mm) 		A L1
mm 		L2
mm 		D2
mm 		KW
mm 		KW1
mm 		WEIGHT
100PCS
(kg)
Φ3 3 6 48 57 6 10 12 3.4
Φ4 4 7 56 69 8 14 14 6.2
Φ5 5 8 66 82 10 14 16 8.8
Φ6 6 9 83 100 13 17 19 15.4
Φ8 8 10 102 123 14 19 24 27.8
Φ10 10 12 117 137 16 20 27 ..
Φ12 12 14 142 165 20 22 30 ..
