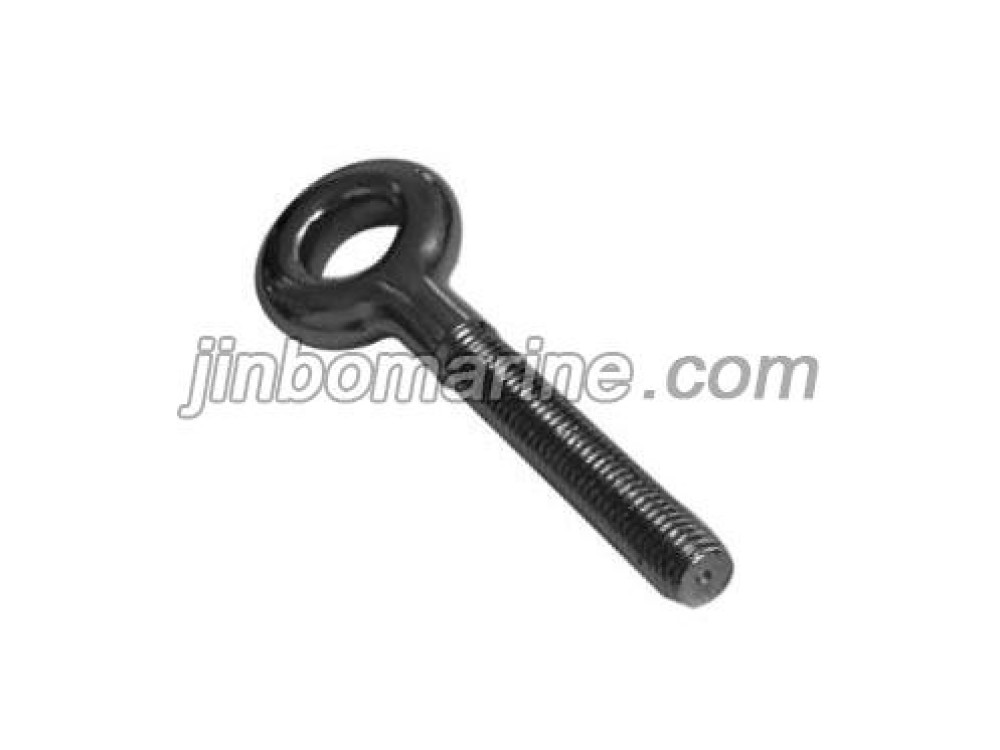

Swivel Bolt
- Category:Eye Bolts & Nuts
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

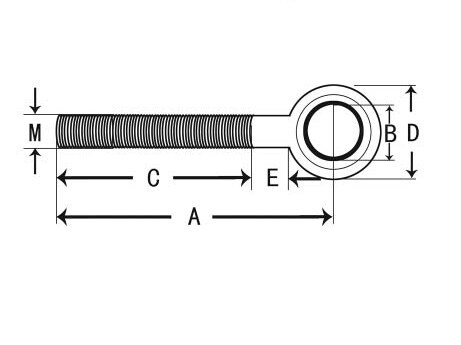

China Swivel Bolt:
SIZE |
M mm |
A mm |
B mm |
C mm |
D mm |
E mm |
M8x60 | 8 | 60 | 8.3 | 51 | 16 | 8 |
M10x50 | 10 | 50 | 10.4 | 40 | 20 | 10 |
M10x60 | 10 | 60 | 10.4 | 50 | 20 | 10 |
M10x70 | 10 | 70 | 10.4 | 60 | 20 | 10 |
M10x80 | 10 | 80 | 10.4 | 70 | 20 | 10 |
M10x90 | 10 | 90 | 10.4 | 80 | 20 | 10 |
M12x60 | 12 | 60 | 12.4 | 48 | 24 | 12 |
M12x80 | 12 | 80 | 12.3 | 68 | 24 | 12 |
M12 x 100 | 12 | 100 | 12.3 | 88 | 24 | 12 |
M12x 120 | 12 | 120 | 12.3 | 108 | 24 | 12 |
M12x 150 | 12 | 150 | 12.3 | 138 | 24 | 12 |
M16x80 | 16 | 80 | 16.3 | 65 | 32 | 16 |
M16x 100 | 16 | 100 | 16.3 | 85 | 32 | 16 |
M16x 120 | 16 | 120 | 16.3 | 105 | 32 | 16 |
M16x 150 | 16 | 150 | 16.3 | 135 | 32 | 16 |
M20 x 80 | 20 | 80 | 20.3 | 60 | 40 | 20 |
M20x 100 | 20 | 100 | 20.3 | 80 | 40 | 20 |
M20x 120 | 20 | 120 | 20.3 | 100 | 40 | 20 |
M20x 150 | 20 | 150 | 20.3 | 130 | 40 | 20 |
M22x80 | 22 | 80 | 22.5 | 57 | 44 | 22 |
M22x 100 | 22 | 100 | 22.5 | 77 | 44 | 22 |
M22x120 | 22 | 120 | 22.5 | 97 | 44 | 22 |
M22x 150 | 22 | 150 | 22.5 | 127 | 44 | 22 |
M24x 100 | 24 | 100 | 24.5 | 75 | 48 | 24 |
M24x 120 | 24 | 120 | 24.5 | 95 | 48 | 24 |
