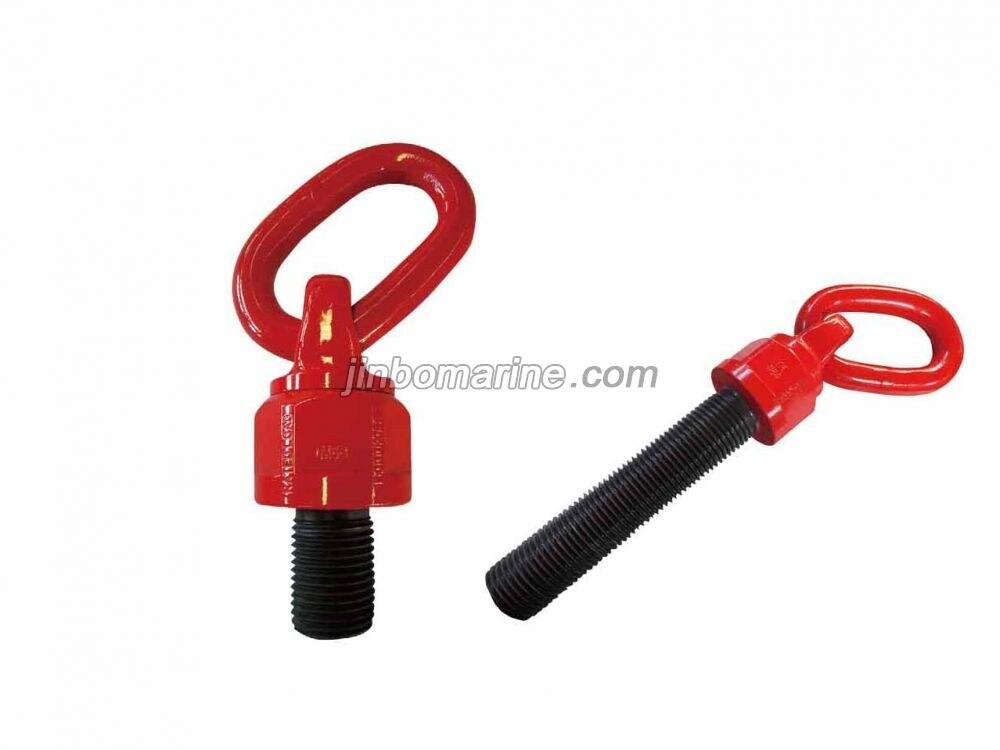

Swivel Hoist Ring
- Category:Chain Sling
- Material:Alloy Steel Forging
- Standards:EN1677-1 CROSBY ISO9001-2008 CCS
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:100SETS/week
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

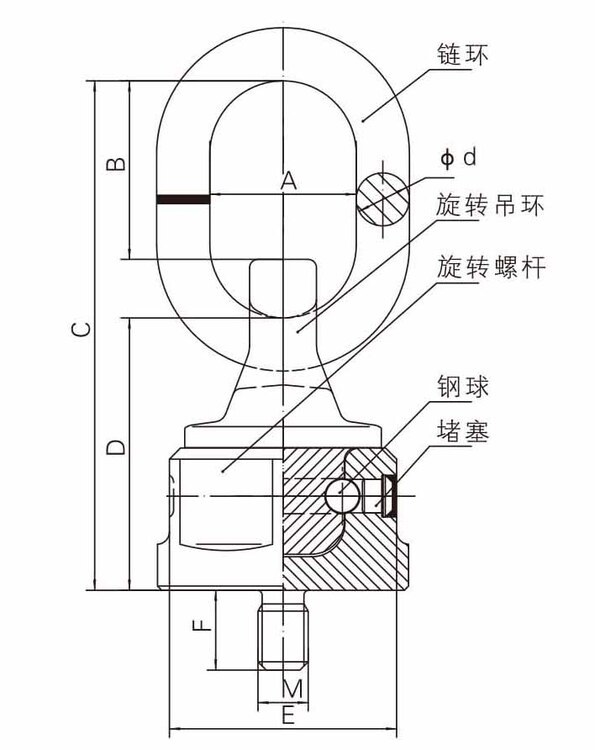

China Swivel Hoist Ring:
Metric Model |
Load WLL(T) |
Unit(mm) | Weight(kg) | ||||||
A | B | C | D | E | d | F | |||
M8X1.25-6g | 0.4 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 12 | 0.27 |
M10X1.5-6g | 0.5 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 19 | 0.27 |
M12X1.75-6g | 1.05 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 19.1 | 1.2 |
M14X2.0-6g | 1.05 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 31.8 | 1.2 |
M16X2.0-6g | 1.9 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 31.8 | 1.2 |
M20X2.5-6g | 2.15 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
M22X2.5-6g | 2.25 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
M24X3.0-6g | 4.2 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
M30X3.5-6g | 5 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 50 | 3.86 |
M33X3.5-6g | 7 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 50 | 3.86 |
M36X4.0-6g | 8 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 54 | 3.86 |
M39X4.0-6g | 8 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 58 | 3.86 |
M42X4.5-6g | 10 | 63 | 108 | 230 | 100 | 85 | 25 | 63 | 6.08 |
M45X4.5-6g | 10 | 63 | 108 | 230 | 100 | 85 | 25 | 68 | 6.08 |
M48X5.0-6g | 10 | 63 | 108 | 230 | 100 | 85 | 25 | 68 | 6.08 |
M56X5.5-6g | 15 | 70 | 120 | 278 | 132 | 95 | 32 | 84 | 10.8 |
M60X5.5-6g | 15 | 70 | 120 | 278 | 132 | 95 | 32 | 90 | 10.8 |
M64X6.0-6g | 15 | 70 | 120 | 278 | 132 | 95 | 32 | 95 | 10.8 |
M72 | 25 | 80 | 125 | 331 | 166 | 130 | 40 | 108 | 27 |
M90 | 35 | 80 | 125 | 331 | 166 | 130 | 40 | 135 | 31 |
English Model |
Load |
Unit(mm) | Weight(kg) | ||||||
WLL(LBS) | A | B | C | D | E | d | F | ||
5/16"-18UNC-2A | 800 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 12.7 | 0.27 |
3/8"-16UNC-2A | 1000 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 12.7 | 0.27 |
7/16"-14UNC-2A | 2000 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 19.1 | 1.2 |
1/2"-13UNC-2A | 2500 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 19.1 | 1.2 |
5/8"-11UNC-2A | 4000 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 25.4 | 1.2 |
3/4"-10UNC-2A | 5000 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 31.8 | 2.21 |
1"-8UNC-2A | 10000 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
1-1/4"-7UNC-2A | 11000 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 50.8 | 3.86 |
1-1/2"-6UNC-2A | 17600 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 54 | 3.86 |
2"-4.5UNC-2A | 22000 | 65 | 108 | 230 | 100 | 85 | 25 | 76.2 | 6.08 |
2-1/2"-4UNC-2A | 33000 | 70 | 120 | 278 | 132 | 95 | 32 | 101.6 | 10.8 |
