SZL65A I Model Double-Cylinder Paper Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
SZL65A I Model Double-Cylinder Paper Filter
The filter model representation is as follows:
SZL→SBL represent the double berrelled
65→200 representations passes diameters 200mm
Work pressure | Flow | Safe filter cylinder precision | Normal using precison | Pressure difference of safe value opening | Pressure difference of by-pass valve opening | ||||||||
0.06Mpa | 2x25m³/h | 60um | 10-15um | 0.2±0.02Mpa | 0.4±0.02Mpa |

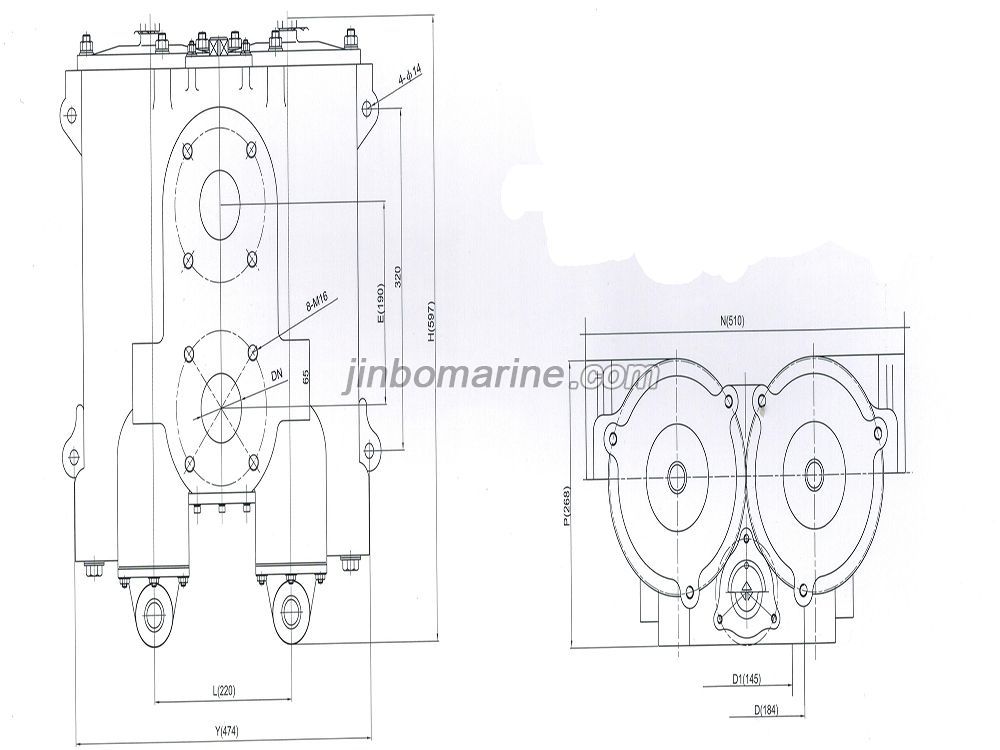

SZL65A I Model Double-Cylinder Paper Filter Diagram:
SZL65A I Model Double-Cylinder Paper Filter Technical Parameters:
Model | Current capacity(referencem³/h) | Passes the diameter and the joint size(mm) | External dimensions(mm) | Installing size(mm) | Weight(kg) | |||||||||||||||
DN | K | E | R | r | 4-M1 | H1 | H2 | L | ᵩ | N | P | W | V | Y | Z | 4-M2 | ||||
SZL20 | 0.5-1.5 | 20 | 60 | 50 | 22 | 12 | 10 | 320 | 60 | 95 | 85 | 193 | 184 | 100 | 53 | 75 | 35 | 10 | 8 | |
SZL25 | 1.5-2 | 25 | 62 | 55 | 25 | 12 | 10 | 375 | 77 | 110 | 98 | 216 | 206 | 100 | 70 | 80 | 40 | 10 | 3 | |
SZL25 | 2-4 | 32 | 75 | 70 | 35 | 15 | 12 | 420 | 90 | 130 | 125 | 264 | 226 | 120 | 80 | 90 | 40 | 12 | 19 | |
SZL25 | 4-6 | 40 | 75 | 70 | 35 | 15 | 12 | 445 | 90 | 130 | 125 | 264 | 226 | 120 | 80 | 90 | 40 | 12 | 22 | |
DN | D | D1 | E | N-M1 | H1 | L | N | P | Y | Z | N-D | |||||||||
SZL65A I | 25-50 | 65 | 184 | 145 | 190 | 8-M16 | 597 | 220 | 510 | 268 | 474 | 320 | 4-ᵩ14 | |||||||
SZL65A II | 40-80 | 65 | 184 | 145 | 190 | 8-M16 | 780 | 220 | 510 | 268 | 474 | 320 | 4-ᵩ14 |
