SZL80A Model Double-Cylinder Paper Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

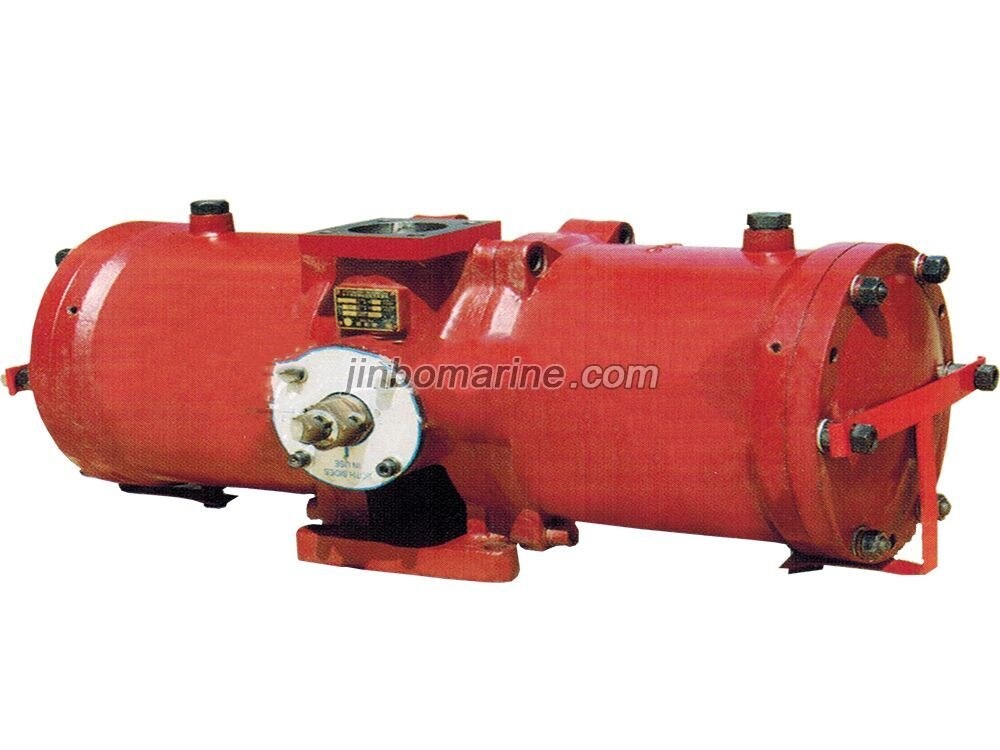

SZL80A Model Double-Cylinder Paper Filter
SZL80A lubricating oil filter: Double-cylinder paper filter core,lubricating oil enters the inlet of the filter through the transfer valve into the oil chamber, ,then enters the lubricating system of diesel engine,when the pressure difference of the inlet and the outlet surpass 0.2Mpa,the paper filter core is blocked and the safe valve opens, the oil is filtered through the safe filter and is discharged from the aleaning oil chamber. the normal pressure difference of the inlet and th eoutlet of the filter is 0.5-0.15Mpa.when it surpasses 0.17Mpa,the paper filter core must be exchanged and the safe filter cylinder should be washed.
Open pressure difference of the safe valve | Flow | Original precision | Safe filter cylinder precision | Work pression | Work temperature | Suitable medium | ||||
0.2±0.2Mpa | 35-70m³/h | 30um | 60um | ≤1Mpa | ≤0.85℃ | lubricating oil |

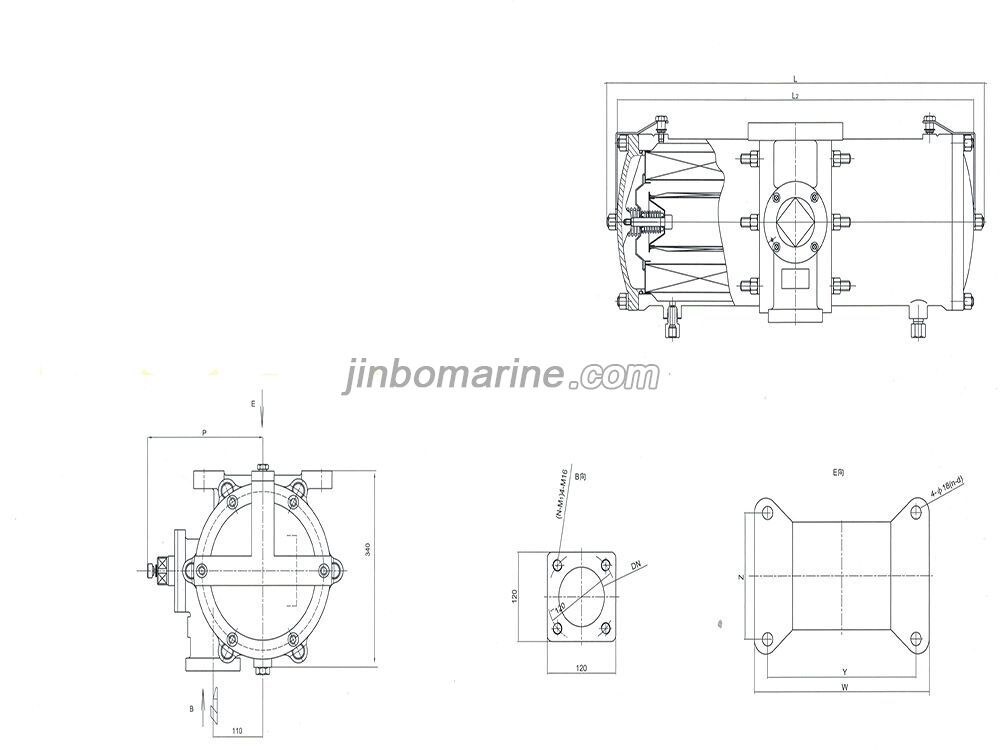

SZL80A Model Double-Cylinder Paper Filter Structure Diagram
SZL80A Model Double-Cylinder Paper Filter Technical Parameters
Model | Passes the diameter and the joint size(mm) | External dimensions(mm) | Installing size(mm) | |||||||||||||
DN | D1 | K | E | F | N-M1 | L | L2 | H | ᵩ | P | W | V | Y | Z | N-D | |
SZL80A | 80 | 120 | 85 | 120 | 120 | 4-M16 | 801 | 780 | 340 | 284 | 255 | 306 | 210 | 260 | 170 | 4-ᵩ18 |
SZL80 II | 80 | 120 | 85 | 120 | 120 | 4-M16 | 1300 | 1280 | 340 | 284 | 255 | 306 | 210 | 260 | 170 | 4-ᵩ18 |
