Eye & Eye Turnbuckle HG-226, SS304 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

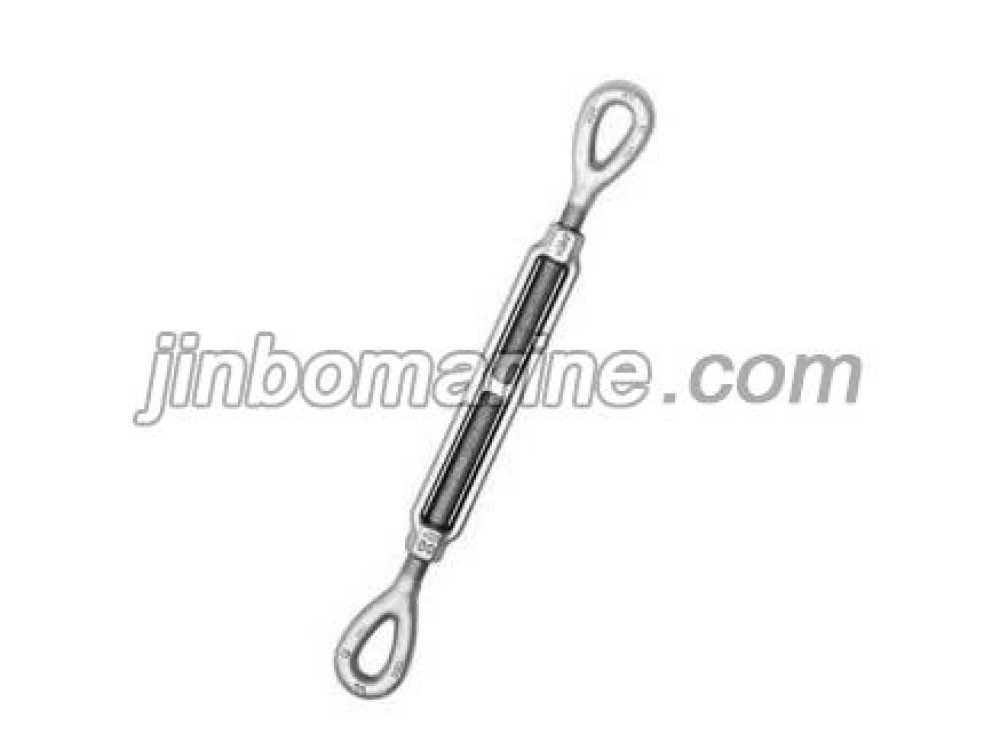

China Eye & Eye Turnbuckle HG-226, SS304 OR SS316:

THREAD
DIA.& 		WORKING
LOAD 		WEIGHT RATH DIMENSIONS(in.)
TAKE UP (in.) LIMIT (lbs)* (kg) A J
OPEN 		K
CLOSED 		M
OPEN 		N
CLOSED 		R S X
CLOSED 		BB
1/4x4 500 0.29 0.25 11.94 7.94 12.38 8.38 0.81 0.34 1.76 4.07
5/16x4-1/2 800 0.48 0.31 13.92 9.42 14.48 9.98 0.95 0.44 2.2 4.56
3/8x6 1200 0.75 0.38 17.56 11.56 18.24 12.24 1.13 0.53 2.48 6.1
1/2x6 2200 1.72 0.5 19.94 13.94 20.82 14.82 1.41 0.71 3.56 6.03
1/2x12 3500 2.63 0.5 32.23 20.23 33.11 21.11 1.41 0.71 3.54 12.36
5/8x6 3500 2.75 0.63 21.72 15.72 22.72 16.72 1.8 0.88 4.35 6.03
5/8x12 5200 4.12 0.63 34.06 22.06 35.06 23.06 1.8 0.88 4.34 12.39
3/4x6 5200 4.22 0.75 23.24 17.24 24.5 18.5 2.09 1 5.12 6.13
3/4x12 5200 6.12 0.75 35.64 23.64 36.9 24.9 2.09 1 5.09 12.59
3/4x18 7200 7.83 0.75 47.64 29.64 48.9 30.9 2.09 1 5.12 18.53
7/8x12 7200 8.83 0.88 36.7 24.7 38.2 26.2 2.38 1.25 5.79 12.16
7/8 x 18 10000 11.5 0.88 49.17 31.17 50.67 32.67 2.38 1.25 5.79 18.63
1x6 10000 9.62 1 26.24 20.24 28 22 3 1.43 6.5 6.18
1 x 12 10000 13 1 38.24 26.24 40 28 3 1.43 6.5 12.18
1 x 18 10000 16.3 1 50.24 32.24 52 34 3 1.43 6.5 18.18
1 x24 15200 20.2 1 62.84 38.84 64.6 40.6 3 1.43 6.47 24.84
1-1/4x12 15200 19.9 1.25 42.14 30.14 44.38 32.38 3.59 1.82 8.49 12.06
1-1/4x18 15200 23.8 1.25 54.14 36.14 56.38 38.38 3.59 1.82 8.49 18.06
1-1/4x24 21400 27.8 1.25 66.7 42.7 68.94 44.94 3.59 1.82 8.49 24.62
1-1/2x12 21400 28.7 1.5 44.24 32.24 46.74 34.74 4.09 2.12 9.46 12.32
1-1/2x18 21400 34.1 1.5 56.24 38.24 58.74 40.74 4.09 2.12 9.46 18.32
1-1/2x24 28000 39.6 1.5 68.86 44.86 71.36 47.36 4.09 2.12 9.46 24.94
1-3/4x18 28000 50.7 1.75 57.38 39.38 60.38 42.38 4.65 2.38 9.97 18.37
1 -3/4 x 24 28000 58.2 1.75 69.38 45.38 72.38 48.38 4.65 2.38 9.97 24.37
2x24 37000 83.5 2 75.68 51.68 79.18 55.18 5.81 2.69 13.03 27.48
2-1/2x24 60000 149 2.5 79.18 55.18 83.18 59.18 6.49 3.12 13.76 24.6
2-3/4x24 75000 174 2.75 81.34 57.34 85.84 61.84 7 3.25 15.09 24.65
