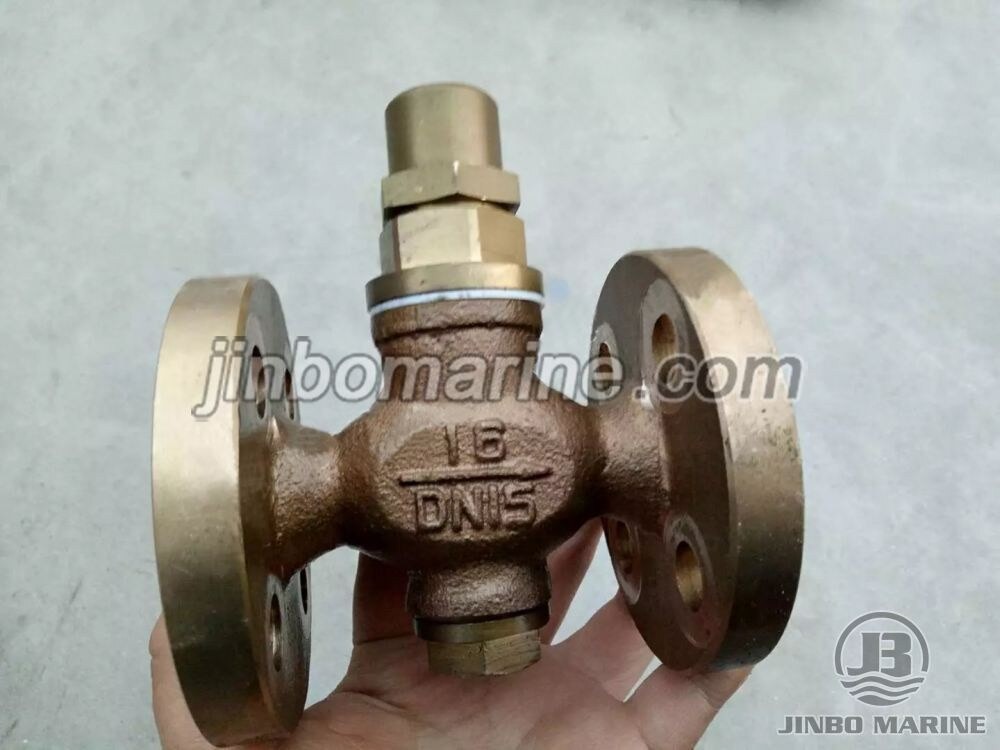

Thermostatic Steam Trap

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Thermostatic Steam Trap:

Marine steam trap is a kind of valve, also known as a trap, drainage valve, removes condensate water, air and carbon dioxide gas from the steam system as soon as possible, while maximize the automatic prevention of steam leakage.

Main Parts & Material:

1. Body---Bronze

2. Valve Bonnet---Brass

3. Seat/Disc---Brass

4. Spring/Filter Screen/Filter Cylinder---Stainless Steel

5. Seat Ring---PTFE

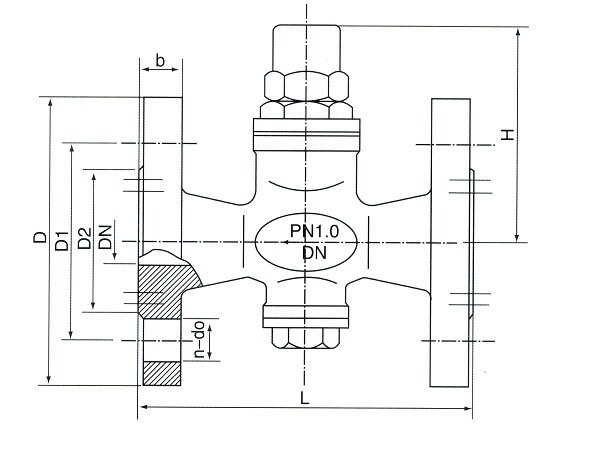

Main Size:

Nominal Size Model No L H D D1 D2 b d0 n Weight(kgs)
DN20 20F 115 75 95 68 48 14 13 4 2.3
DN25 25F 120 75 105 73 56 14 13 4 2.6
DN32 32F 130 100 115 83 64 15 15 6 3.7
DN40 40F 140 100 125 93 74 16 15 6 4.6
DN50 50F 150 100 135 103 84 16 15 6 6.3
DN15 15FS 110 75 95 65 47 14 14 4 2
DN20 20FS 115 75 105 75 58 16 14 4 2.8
DN25 25FS 120 75 115 85 68 16 14 4 3.3
DN32 32FS 130 100 140 100 78 16 18 4 5.8
DN40 40FS 140 100 150 110 88 16 18 4 6.9
DN50 50FS 150 100 165 125 102 18 18 4 9.7
