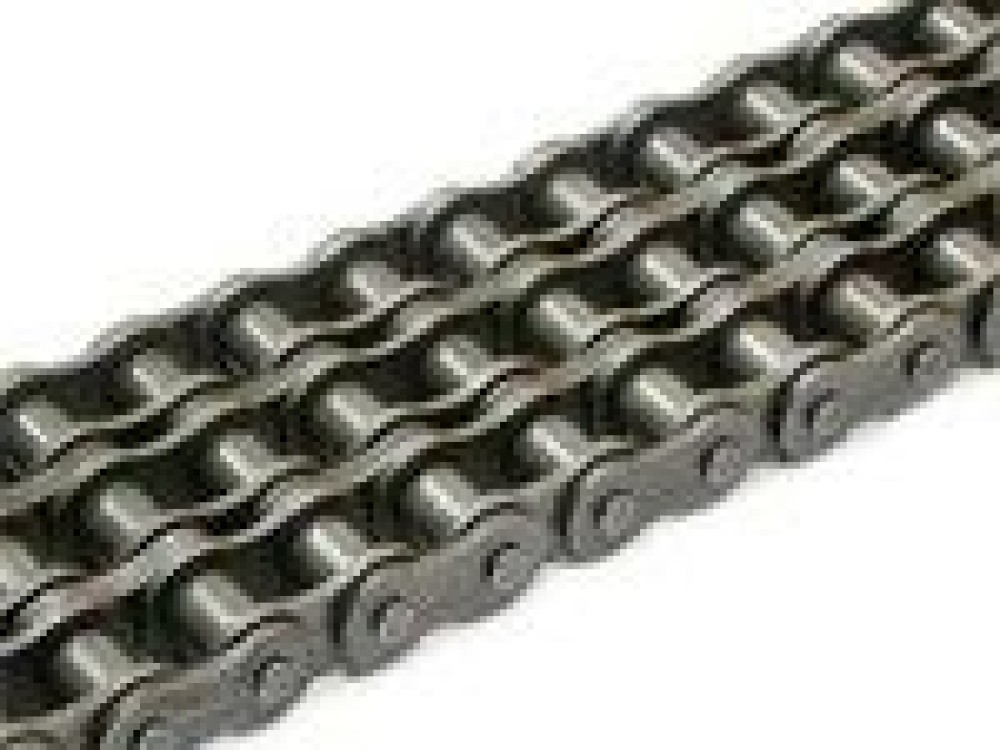

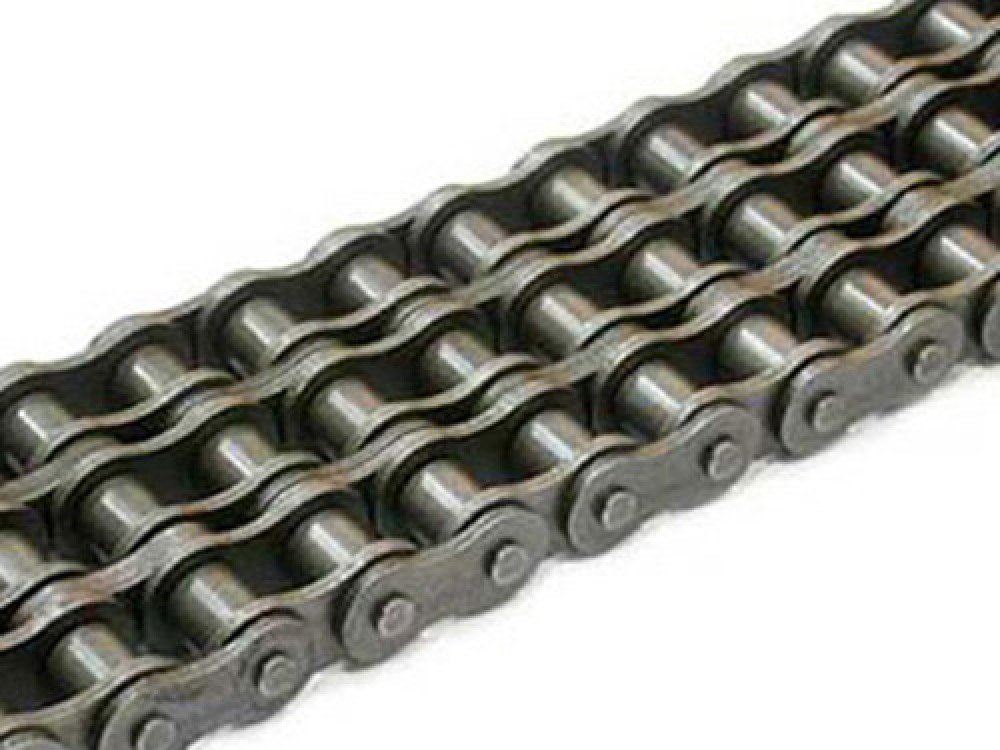

Triplex Roller Chain
- Category:A Series Short Pitch Precision Roller Chain
- Material:40Mn2
- Standards:DIN/ISO
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Maintenance For Roller Chain.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Main Specification

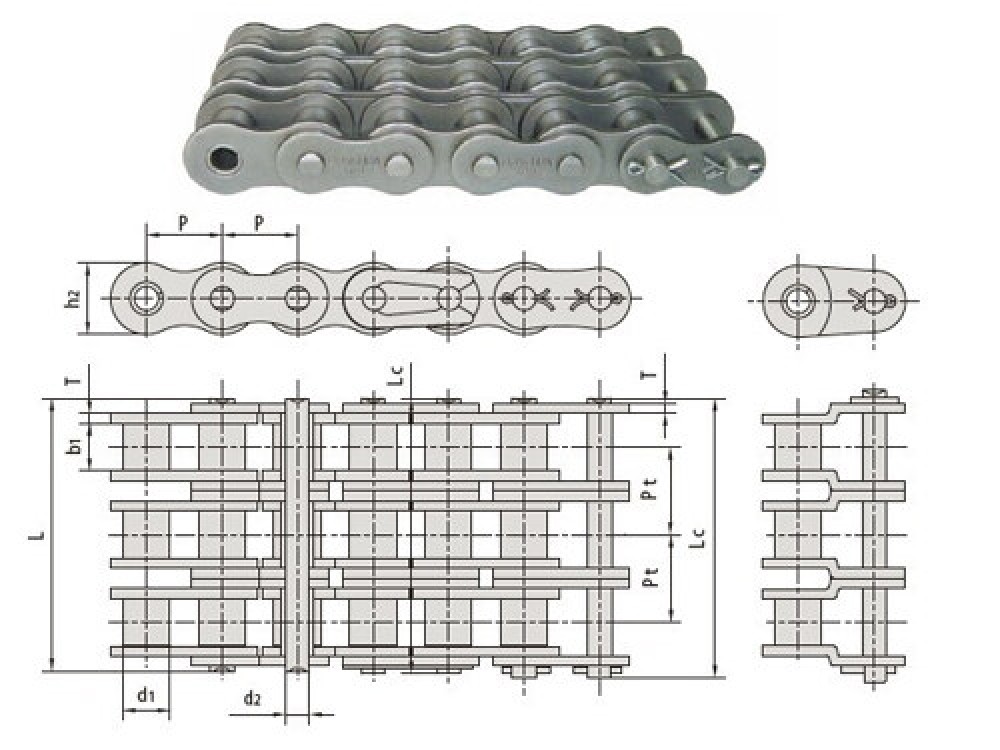

| DIN/ISO Chain No. | Pitch | Roller | Width | Pin Diameter | Pin Length | Inner plate depth | Plate Thickness | Ultimate tensile strength | Average tensile strength | weight Per Meter | |
| P | d1 | b1 | d2 | L | Lc | h2 | T | Q | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |
|
05B-3
|
8 | 5 | 3 | 2.31 | 19.5 | 20.2 | 7.1 | 0.8 | 11.1/2523 | 13.8 | 0.48 |
| *06B-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.5 | 34.6 | 8.2 | 1.3 | 24.9/5659 | 30.1 | 1.16 |
| 08B-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.8 | 1.6 | 47.5/10795 | 57.8 | 2.03 |
| 10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.7 | 1.7 | 66.7/15159 | 84.5 | 2.77 |
| 12B-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 63.1 | 16 | 1.85 | 86.7/19705 | 101.8 | 3.46 |
| 16B-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 101.2 | 21 | 4.15/3.1 | 160.0/36364 | 203.7 | 8.13 |
| 20B-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.4 | 4.5/3.5 | 250.0/56818 | 290 | 10.82 |
| 24B-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.1 | 154.6 | 33.2 | 6.0/4.8 | 425.0/96591 | 493 | 20.1 |
| 28B-3 | 44.45 | 30.99 | 30.99 | 15.9 | 184.2 | 188.7 | 36.7 | 7.5/6.0 | 530.0/120454 | 609.5 | 24.92 |
| 32B-3 | 50.8 | 30.99 | 30.99 | 17.81 | 183.2 | 188.2 | 42 | 7.0/6.0 | 670.0/152273 | 770.5 | 31.56 |
| 40B-3 | 63.5 | 38.1 | 38.1 | 22.89 | 226.8 | 233.8 | 52.96 | 8.5/8.0 | 950.0/215909 | 1092.5 | 48.1 |
| 48B-3 | 76.2 | 45.72 | 45.72 | 29.24 | 281.6 | 289.4 | 63.8 | 12月10日 | 1500.0/340909 | 1710 | 75 |
Packing:
Poly Bag/Carton/Wooden Box
