TS444-3 Fixed Suspend Hanger
- Category:Pipe Fitting
- Material:Special rubber
- Standards:China standard
- Packing Details:Export standard packaging.
- Delivery Time:7 to 15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

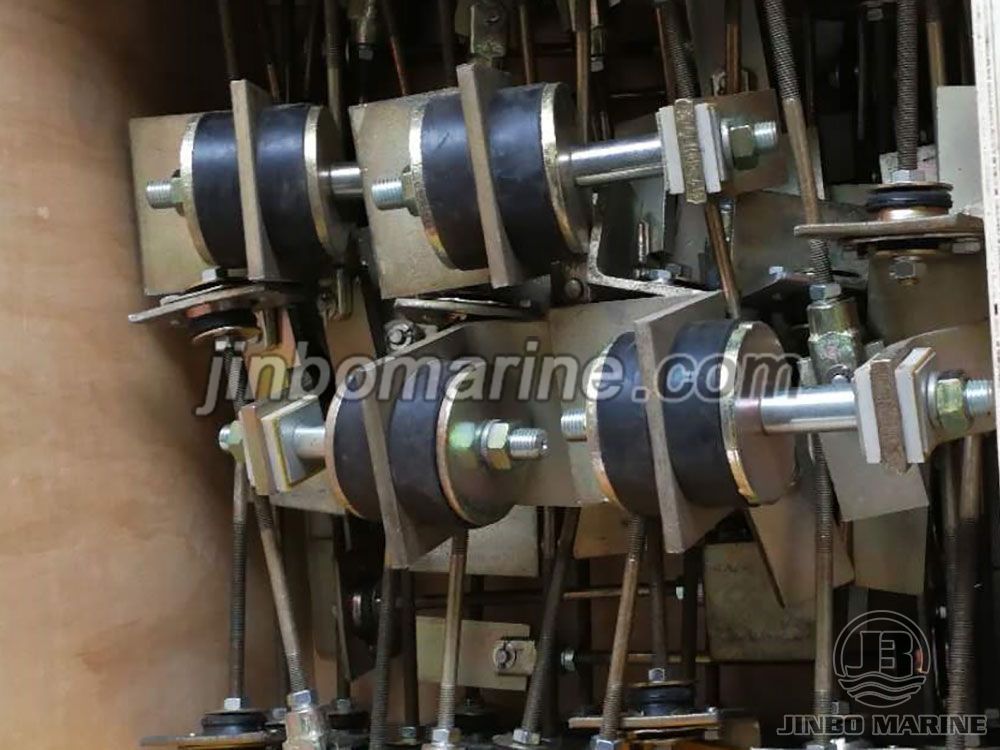

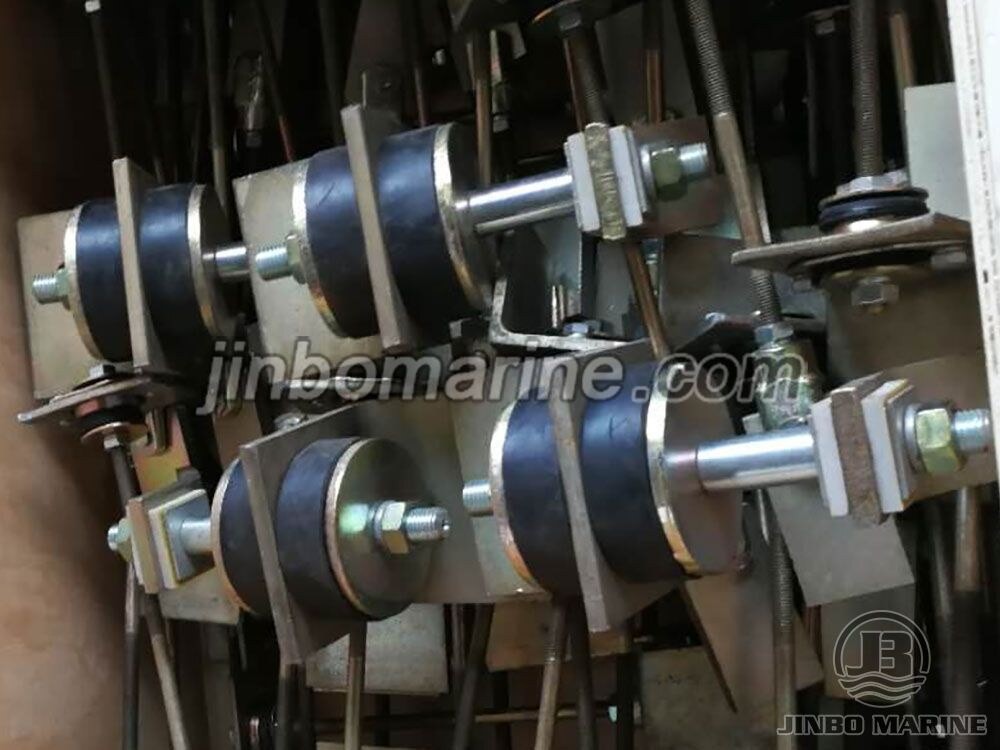

China TS444-3 Fixed Suspend Hanger:
The elastic elements is made by special type rubber,it has fine vibration resistance and impact resistance,and it has the following advantage,high temperature resistance,low temperature resistance,oil resistance and aging resistance.
The support adopts the insulation cushion, so it can afford high load and bear higher temperature.
Applicable range: suitable for vertical and horizontal exhaust pipe.

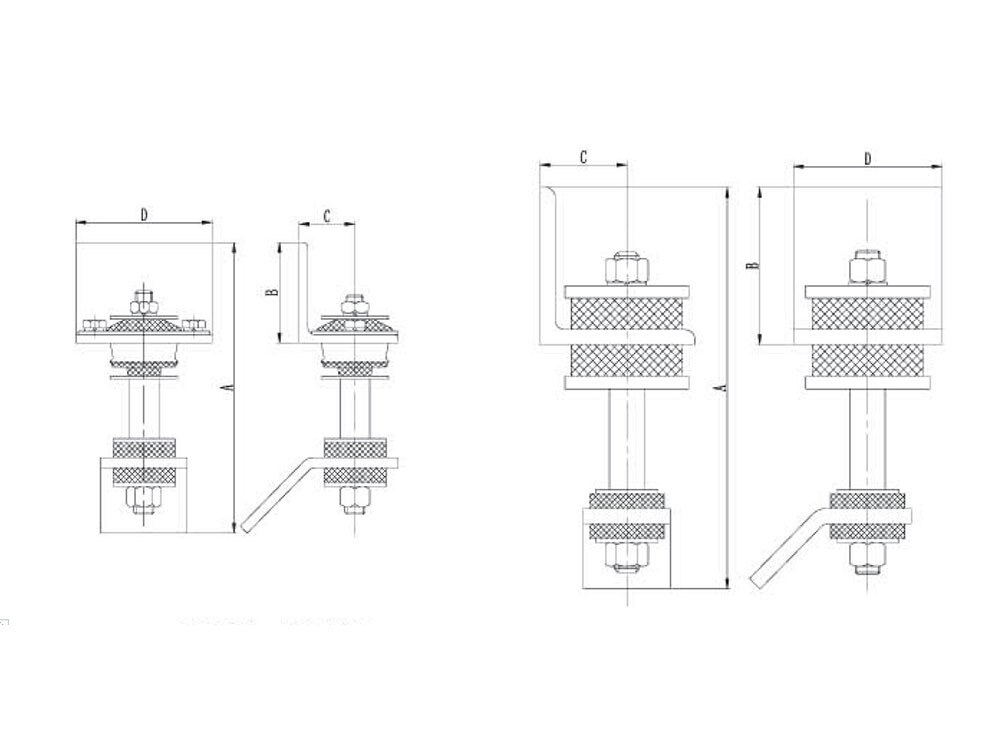

Outline Dimension And Performance Parameters:
| Type | Dimension | Maximum Load(KGF) | Maximum Working Load(KGF) | |||
| A(mm) | B(mm) | C(mm) | D(mm) | |||
| VOP-021 | 230 | 80 | 45 | 110 | 600 | 200 |
| VOP-025 | 255 | 100 | 60 | 120 | 700 | 230 |
| VOP-026 | 280 | 100 | 55 | 130 | 800 | 270 |
| VOP-027 | 310 | 125 | 75 | 130 | 1000 | 350 |
| TS444-3 | 320 | 125 | 70 | 120 | 1000 | 350 |
| TS472-3 | 360 | 160 | 90 | 160 | 2000 | 700 |
