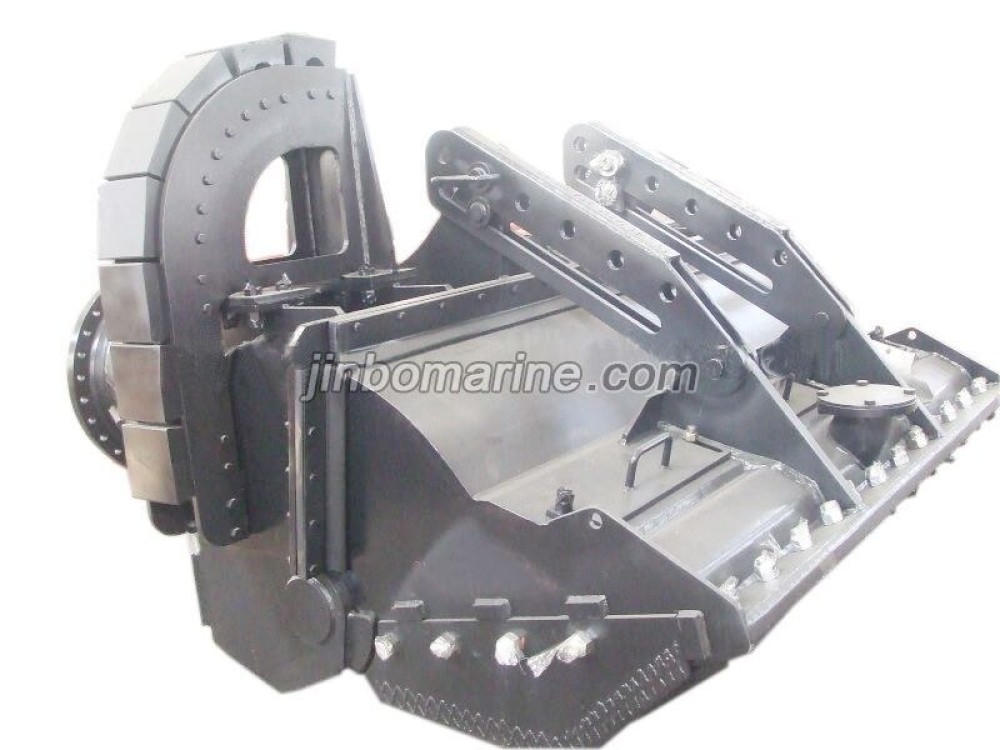

TSHD Pull Rod Drag Head

Request a Quote Not what you need, please send your RFQs via Email.

Details

China TSHD Pull Rod Drag Head:

Optimized Draghead-Bottom Touch

Good Bottom Loosening

Minimum flow resistance

Easy Maintenance

Fenders Protection for ship hull.

Jinbo Marine Dragheads provide a combination of high excavation capabilities for loosening the soil and optimised hydraulic properties for mixture transportation. High mixture concentrations are suitable in many kinds of soil.

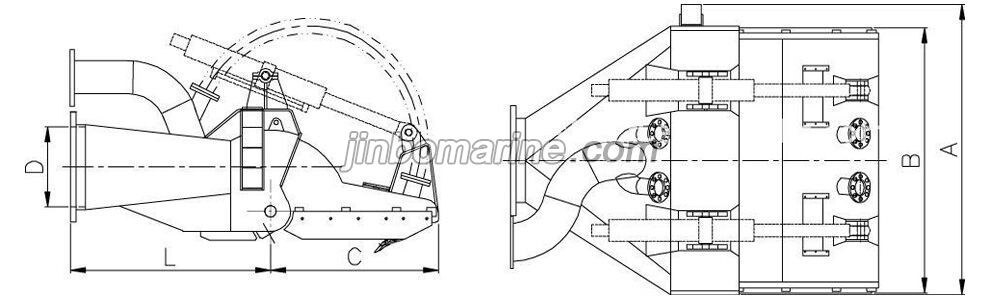

Technical Specification

Suction Pipe
Dia.(mm)
L(mm) C(mm) A(mm) B(mm)
420 1300 1000 1600 1340
550 1525 1100 1800 1560
600 1560 1190 1850 1560
700 1935 1255 2700 2600
800 2000 1550 2940 2750
900 2350 1650 3200 2850
1000 2850 1760 3700 3520
1200 3300 1850 4240 3700
Other sizes for rake head sereis can be customized.
