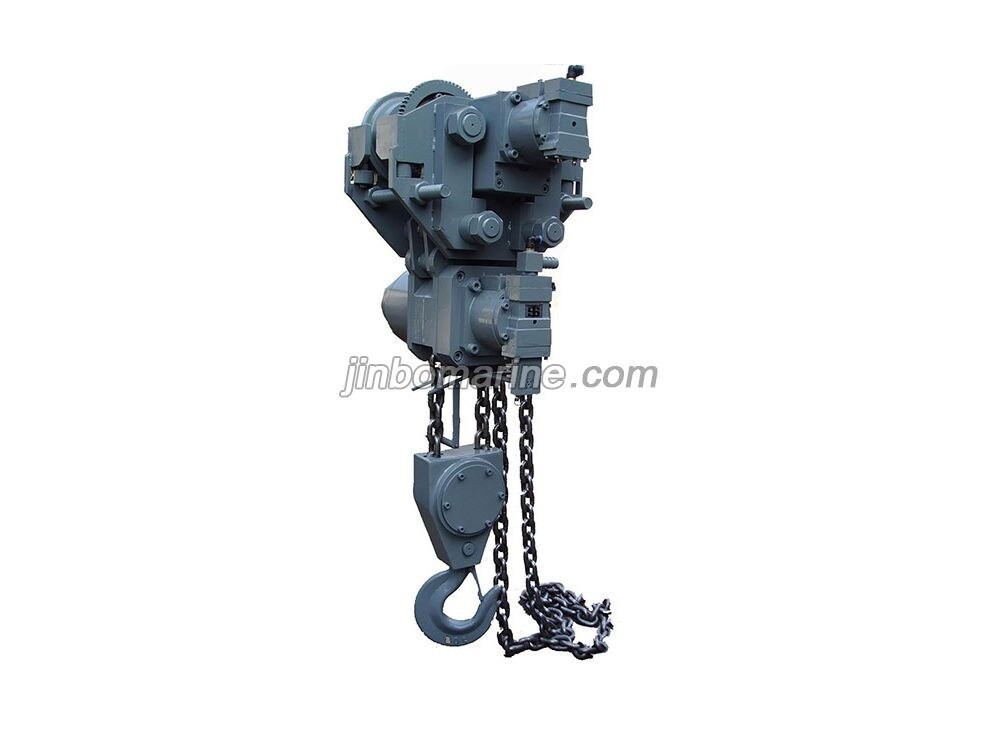

TSHQ Type Marine Pneumatic Hoist
- Category:Marine Hoist
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

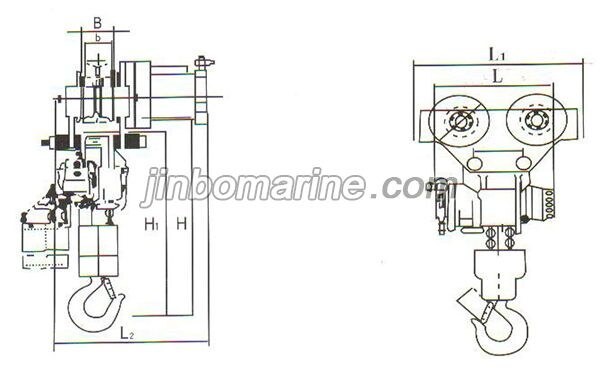

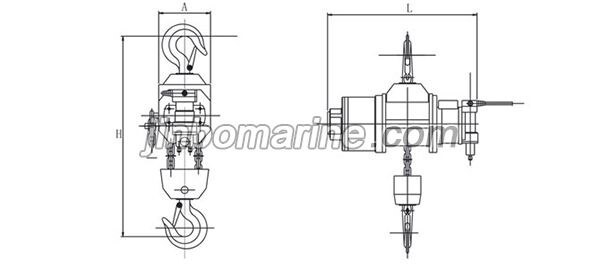

TSHQ Type Marine Pneumatic Hoist Structure
TSHQ Type Marine Pneumatic Hoist Technical Specifications
| Type | Lifting capacity(t) | Motor power(kw) | Working pressure(Mpa) | Lifting height(m) | Weight(kg) |
| TSHQ01 | 0.08 | 0.8 | ≥0.55 | 3 | 16 |
| TSHQ02 | 0.125 | 0.8 | ≥0.55 | 3 | 18 |
| TSHQ03 | 0.25 | 0.8 | ≥0.55 | 3 | 20 |
| TSHQ04 | 0.5 | 1 | ≥0.55 | 3 | 22 |
| TSHQ05 | 1 | 1.2 | ≥0.55 | 3 | 36 |
| TSHQ06 | 1.5 | 1.5 | ≥0.55 | 3 | 42 |
| TSHQ07 | 2 | 1.5 | ≥0.55 | 3 | 45 |
| TSHQ08 | 3 | 1.2 | ≥0.55 | 3 | 33 |
| TSHQ09 | 5 | 1.2 | ≥0.55 | 3 | 57 |
| TSHQ10 | 6 | 1.2 | ≥0.55 | 3 | 66 |
| TSHQ11 | 8 | 3.6 | ≥0.55 | 3 | 178 |
| TSHQ12 | 10 | 3.6 | ≥0.55 | 3 | 193 |
| TSHQ13 | 12.5 | 3.6 | ≥0.55 | 3 | 198 |
| TSHQ14 | 15 | 3.6 | ≥0.55 | 3 | 390 |
| TSHQ15 | 20 | 3.6 | ≥0.55 | 3 | 420 |
| TSHQ16 | 25 | 3.6 | ≥0.55 | 3 | 426 |
| TSHQ17 | 30 | 3.6 | ≥0.55 | 3 | 839 |
| TSHQ18 | 40 | 3.6 | ≥0.55 | 3 | 560 |
| TSHQ19 | 50 | 3.6 | ≥0.55 | 3 | 1390 |
| TSHQ20 | 60 | 3.6 | ≥0.55 | 3 | 1480 |
| TSHQ21 | 80 | 5.8 | ≥0.55 | 3 | 2150 |
| TSHQ22 | 100 | 5.8 | ≥0.55 | 3 | 2970 |
| TSHQ23 | 120 | 5.8 | ≥0.55 | 3 | 3540 |
| TSHQ24 | 160 | 5.8 | ≥0.55 | 3 | 4500 |
