Tug Boat Rubber Fender

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Tug Boat Rubber Fender:

It is mainly used all kinds of tug boat,installed in the tug boat.

Specification:

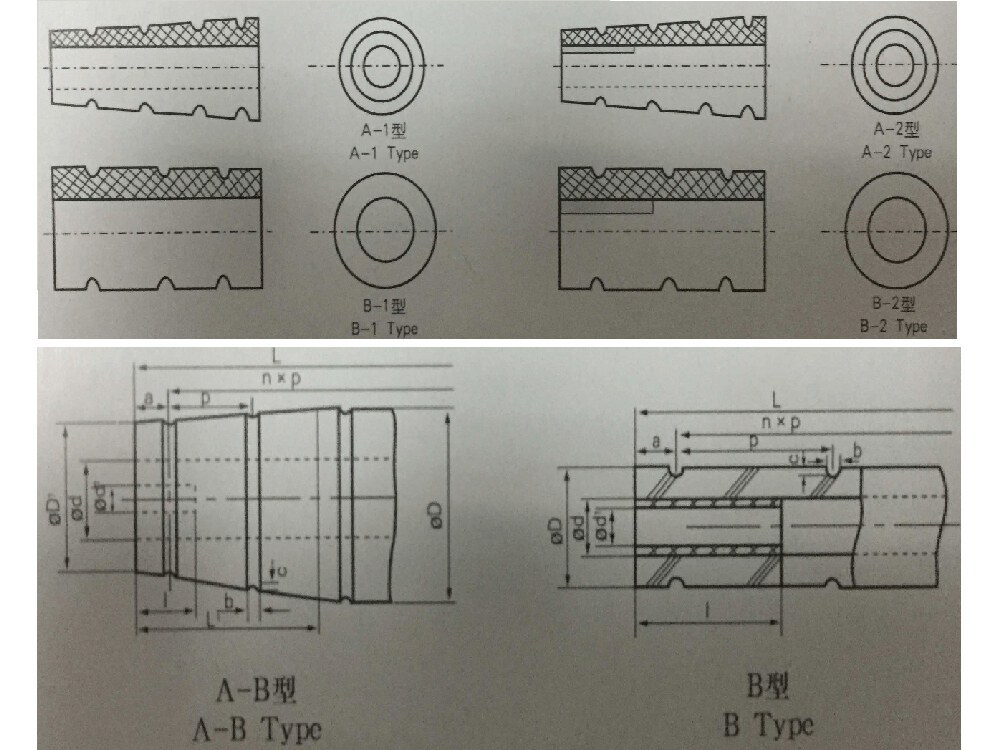

A-B Norms And Size a P n b C D
Φ500xΦ400xΦ250xΦ100x16000L 500 1000 15 60 40 500
Φ700xΦ600xΦ350xΦ100x14000L 370 780 17 60 40 700

A-B Norms And Size D' d d L I I
Φ500xΦ400xΦ250xΦ100x16000L 400 250 100 16000 450 1000
Φ700xΦ600xΦ350xΦ100x14000L 600 350 100 14000 450 1000

B Type Series Norms And Size:

Norms And Size b C ΦD Φd Φd' I
Φ300xΦ150xL 50 25 300 150 - -
Φ300xΦ100xL 50 25 300 100 - -
Φ400xΦ200xL 50 35 400 200 300 -
Φ400xΦ150xL 50 35 400 150 100 -
Φ400xΦ100xL 50 35 400 100 - -
Φ500xΦ250xL 60 40 500 250 350 -
Φ500xΦ220xL 60 40 500 220 100 350
Φ500xΦ200xL 60 40 500 200 100 350
Φ500xΦ150xL 60 40 500 150 100 -
Φ500xΦ100xL 60 40 500 100 - -
Φ600xΦ300xL 60 35 600 300 400 -
Φ600xΦ250xL 60 50 600 250 100 400
Φ600xΦ220xL 60 50 600 220 100 400
Φ600xΦ200xL 60 50 600 200 100 400
Φ600xΦ150xL 60 50 600 150 100 -
Φ600xΦ100xL 60 50 600 100 -
Φ700xΦ350xL 60 50 700 350 450 -
Φ700xΦ300xL 60 50 700 300 100 400
Φ700xΦ250xL 60 50 700 250 100 400
Φ700xΦ220xL 60 50 700 220 100 400
Φ700xΦ200xL 60 50 700 200 100 400
Φ700xΦ150xL 60 50 700 150 100 -
Φ800xΦ400xL 70 50 800 400 450 -
Φ800xΦ350xL 70 60 800 350 100 450
Φ800xΦ300xL 70 60 800 300 100 450
Φ800xΦ250xL 70 60 800 250 100 450
Φ800xΦ220xL 70 60 800 220 100 450
Φ800xΦ200xL 70 60 800 200 100 450
Φ800xΦ150xL 70 60 800 150 100 450
Φ900xΦ450xL 70 50 900 450 500 -
Φ900xΦ400xL 70 50 900 400 100 500
Φ900xΦ350xL 70 50 900 350 100 500
Φ900xΦ220xL 70 50 900 220 100 -
