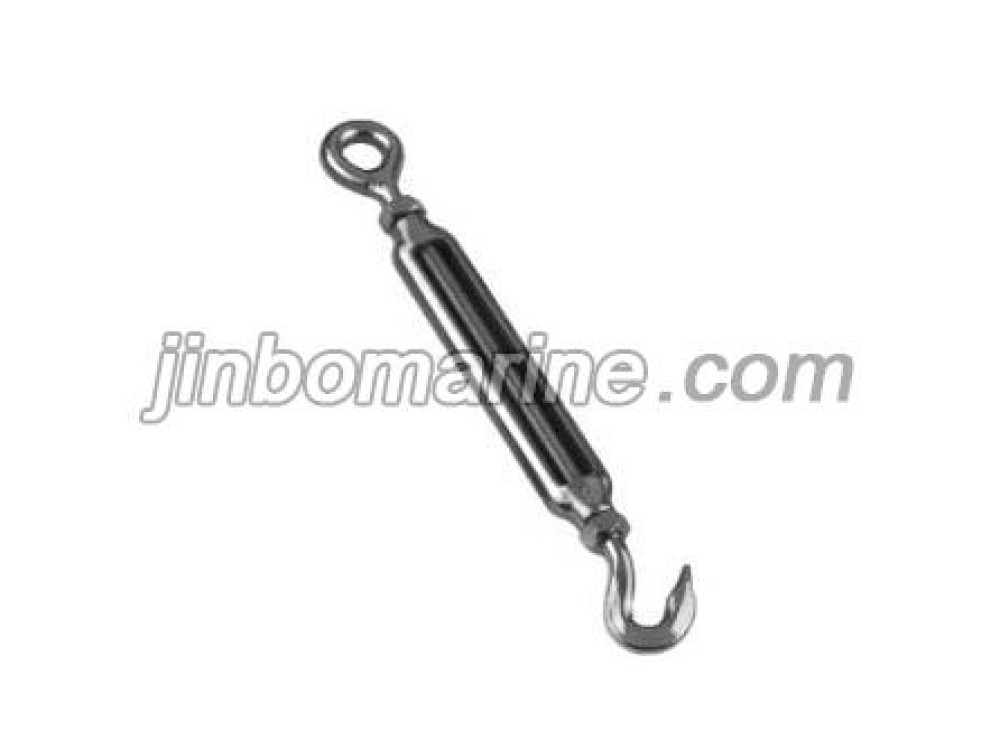

Turnbuckle Frame Type (Hook & Eye) SS304 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Turnbuckle Frame Type (Hook & Eye) SS304 OR SS316:

SIZE A
mm 		B
mm 		C
mm 		D
mm 		SWL
kgs 		BL
kgs
M4 105 61 9 M4 25 100
M5 125 71 10 M5 32 130
M6 165 91 11 M6 85 350
M8 212 121 11.5 M8 160 650
M10 269 151 12.5 M10 200 800
M12 314 201 17 M12 350 1400
M16 397 244 17.5 M16 600 2400
M20 475 295 20 M20 875 3500
