Two-chain Lifter Hydraulic Combined Windlass
- Category:Marine Windlass
- Material:Cast steel
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Packing Details:Nude Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

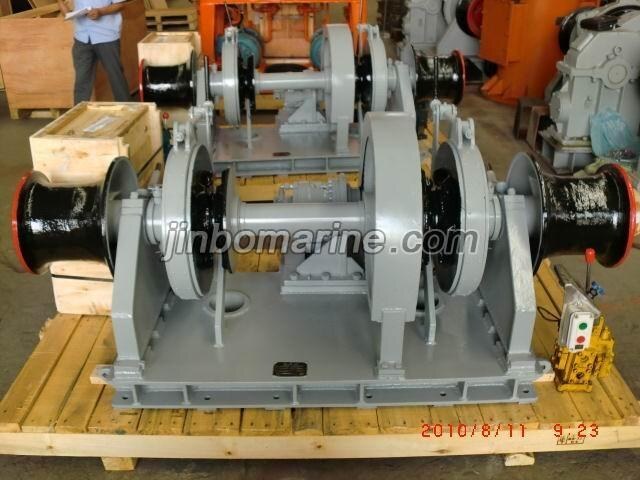

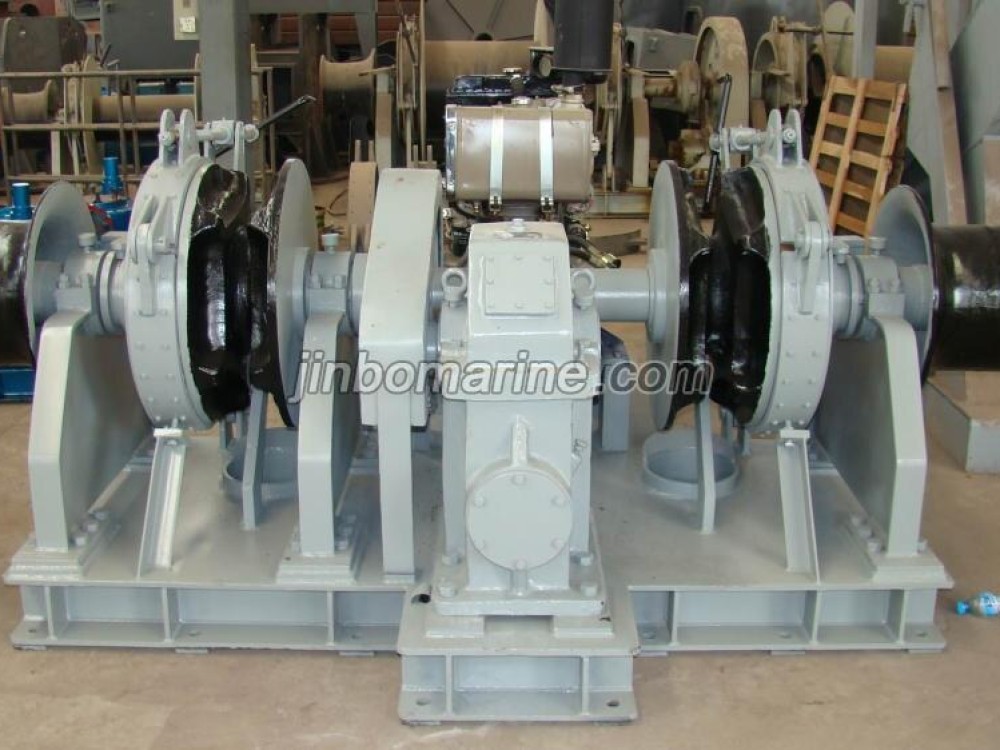

China Two-chain Lifter Hydraulic Combined Windlass:
Two-chain
Lifter Hydraulic Combined Windlass
General description
The combined and capstan are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>. They are driven by hand, electric, hydraulic and diesel engine. The structure types are divided into: systematic double-chain anchor winch (A type);single-chain anchor winch(B type) anchor capstan(E type).
Type illustration
The first letter: D-electric Y-hydraulic S-manual C-diesel engine
The letter M: anchor winch
The third letter: Type A,B,E
Main technical parameter
| Type | anchor chain diam | working load | over loading | loading support | nominal speed | Drum load | Nominal speed | Cable capacity | Mooring line load | ||||
| (mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | m/min | m | Kn | ||
| DMA-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 10 | 10 | Φ11x100 | 8 | |
| DMA-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 15 | 10 | Φ13x100 | 10 | |
| DMA-20 | 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 | 20 | 10 | Φ13x100 | 10 | |
| DMA-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 20 | 15 | Φ15x100 | 15 | |
| DMA-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 | 15 | Φ15x100 | 20 | |
| DMA-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 | 10 | Φ22x100 | 20 | |
| DMA-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 | 10 | Φ22x120 | 20 | |
| DMA-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 | 10 | Φ22x120 | 30 | |
| DMA-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 | 9 | Φ20x120 | 30 | |
| DMA-34 | 34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 40 | 9 | Φ20x120 | 30 | |
| DMA-36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 | 12 | Φ20x120 | 30 | |
| DMA-38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 | 15 | Φ22x150 | 40 | |
| DMA-40 | 40 | 68 | 76 | 102 | 114 | 402 | 576 | 9 | 40 | 9 | Φ22x150 | 40 | |
| DMA-42 | 42 | 75 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 40 | 15 | Φ22x150 | 50 | |
| DMA-44 | 44 | 82.3 | 92 | 123.5 | 138 | 483 | 691 | 9 | 50 | 15 | Φ26x200 | 50 | |
| DMA-46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 | 18 | Φ26x200 | 50 | |
| DMA-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 816 | 9 | 60 | 10 | Φ26x200 | 50 | |
| DMA-50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 80 | 15 | Φ26x200 | 50 | |
