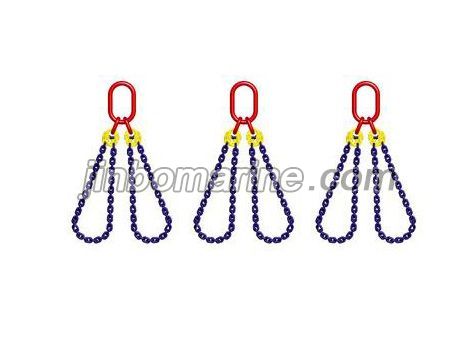

Two Legs Chocker Chain Sling
- Category:Chain Sling
- Material:High Quality Alloy Steel
- Certificate:CCS
- Packing Details:Standard Export Packaging
- Supply Ability:500 pcs/week
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Two Legs Chocker Chain Sling:
Model |
Diamerter of the
chain (mm) |
WLL (t) |
Master link |
Weight/m (kg/m) |
Chain weight (kg) |
|

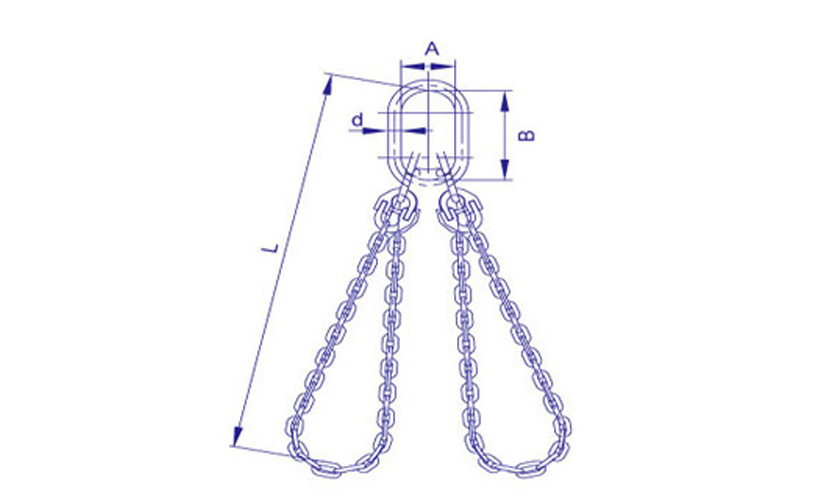

α≤45° | 45°<α≤45° | A×B×d(mm) | ||||
YHLS1-6 | 6 | 1.7 | 1.2 | 65×130×16 | 2.47 | 0.79 |
YHLS1-8 | 8 | 2.55 | 1.8 | 80×150×20 | 4.44 | 1.38 |
YHLS1-10 | 10 | 4.25 | 3 | 90×160×24 | 7.56 | 2.2 |
YHLS1-12 | 12 | 5.95 | 4.2 | 90×190×28 | 11.16 | 3.1 |
YHLS1-14 | 14 | 8.5 | 6 | 100×190×28 | 15.1 | 4.13 |
YHLS1-16 | 16 | 10.2 | 7.2 | 120×230×34 | 21.86 | 5.63 |
YHLS1-18 | 18 | 13.6 | 9.6 | 140×270×42 | 30.74 | 6.85 |
YHLS1-20 | 20 | 17 | 12 | 140×270×42 | 36.88 | 8.6 |
YHLS1-22 | 22 | 20.4 | 14.4 | 160×310×46 | 46.52 | 10.2 |
YHLS1-24 | 24 | 23.8 | 16.8 | 160×310×46 | 46.16 | 12.78 |
YHLS1-26 | 26 | 28.9 | 20.4 | 180×330×52 | 68.58 | 14.87 |
YHLS1-30 | 30 | 37.4 | 26.4 | 180×330×56 | 85.16 | 19.6 |
YHLS1-34 | 34 | 61.2 | 43.2 | 210×410×68 | 115.56 | 22.7 |
