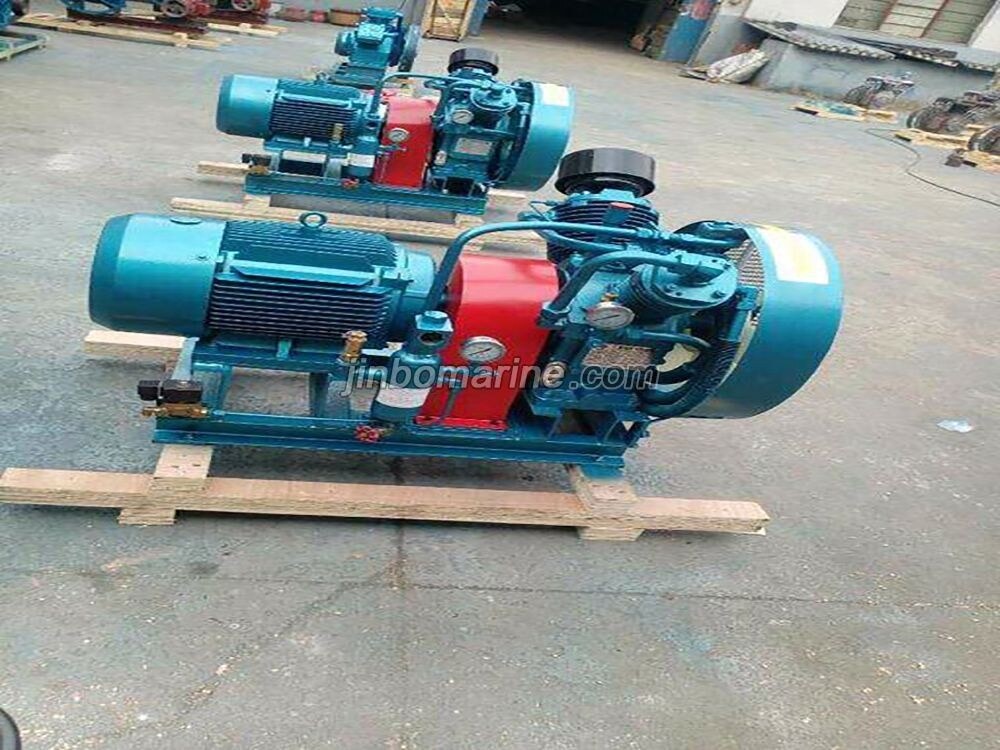

Two Stage Compressed Medium Pressure Tanabe Air Compressor VLH-53

VLH-53 type air compressor is mainly used in ships and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test.

1. VLH-53 air compressor is vertical air compressor, air cooled, two stage compression.
2. Compact structure, light weight, small size.
3. Using fan forced cooling copper fin cooler, cooling effect is good, reliable working in marine conditions.

1. The unit can be direct drive and belt drive, also can be used as diesel engine belt transmission, public base with oil-water separator, unloading electromagnetic valve, start-stop pressure controller, Export flange, the other with temperature control device, shock absorbers.

2. The unit can match wall-mountable electric cabinet, which can realize the automatic unloading and automatic starting, automatic parking; Motor overload and exhaust temperature alarm and stop.

Compressor Model	VLH-53
Type	90°Vertical Air-Cooled,2 stage Compression
Quantity of Air Supply　(m3/h)	45	50	60	74
Pressure Rating　(MPa)	3
Rotation Rating　(r/min)	900	1000	1200	1500
Lubricating System	Splash Lubrication
Suction filtration	Dry filter
Type of Unloader	Manual unloading or electromagnetic valve of unloading
Method of Driving	Direct Coupling,Belt Drive
Motor
Model	Y180L-8-H	Y180L-6-H	Y180L-6-H	Y180M-4-H
Power(kw)	11	15	15	18.5
Direct Coupling,Rotation (r/min)	880	970	1180	1470
Belt Drive，Rotation (r/min)	1460	1460	1460	1470
Voltage(V)	440	380	440	380
Frequency( HZ)	60	50	60	50
Shape size(mm)	1250×860×840,1450×700×920
Weight(kg)	450
