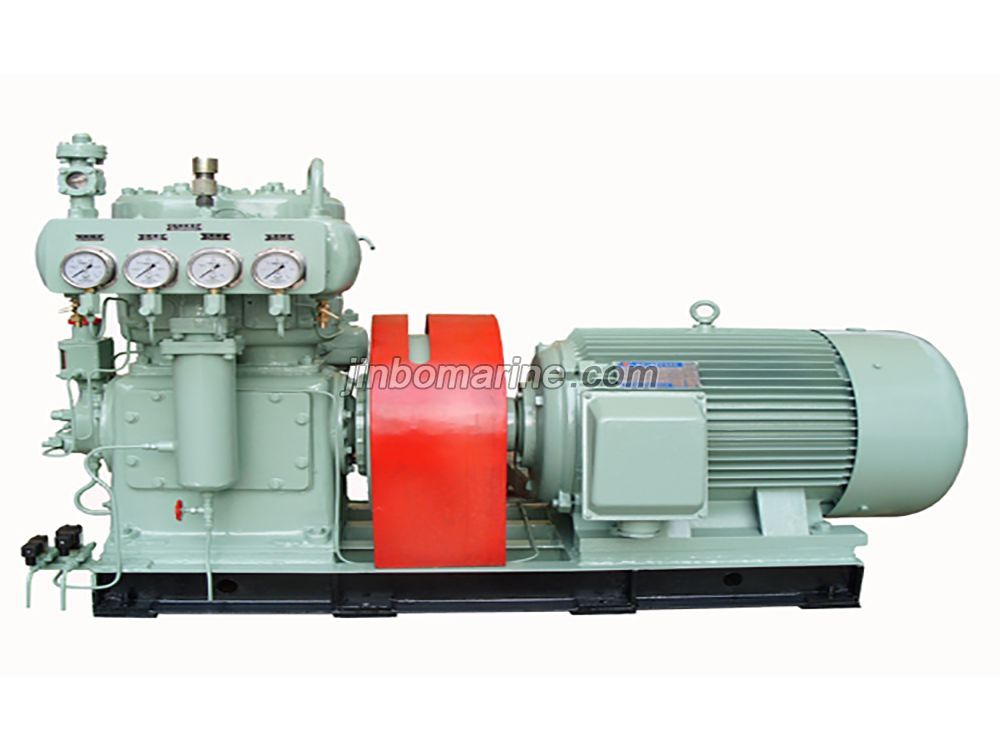

Two Stage Compressed Water-cooling Vertical Type Tanabe Air Compressor HC-264A
- Category:Medium Pressure Water Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Two Stage Compressed Water-cooling Vertical Type Tanabe Air Compressor HC-264A:
HC–264A air compressor is mainly used in large and medium-sized ship and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test.
Institutional characteristics
1. HC–264A air compressor is vertical, water cooling, and the secondary compression.
2. Cooling, pressure equalization, pump pressure can be adjusted.
3. Equipped with automatic control system according to the requirement of the customers.
4. Automatic control functions: automatic start, automatic stop, automatic unloading, low voltage alarm, oil discharge ultra-high alarm, and low pressure alarm.
Specification
| Compressor type | HC-264A | ||
| Type | Vertical,Water-Cooled,Two-stage Compression | ||
| Quantity of Air Supply (m3/h) | 110 | 130 | 145 |
| Pressure Rating (MPa) | 3.0 | ||
| Stalk Power (kw) | 26 | 29 | 33 |
| Rotation Rating (r/min) | 730 | 870 | 980 |
| Quantity of Cooling Water (m3/h) | 2.0-2.8 | ||
| Lubricating System | Forced Lubrication by Gear Pump | ||
| Type of Unloader | Manual,Electromagnetic valve of unloading | ||
| Method of Driving | Direct Coupling | ||
| Motor | |||
| Model | Y250L-8-H | Y250L-8-H | Y250M-6-H |
| Power (kw) | 30 | 30 | 37 |
| Rotation (r/min) | 730 | 870 | 960 |
| Voltage (V) | 380 | 440 | 380 |
| Frequency ( HZ) | 50 | 60 | 50 |
| Shape size (mm) | 1870×1080×1155 | ||
| Weight (kg) | 1200 | ||
