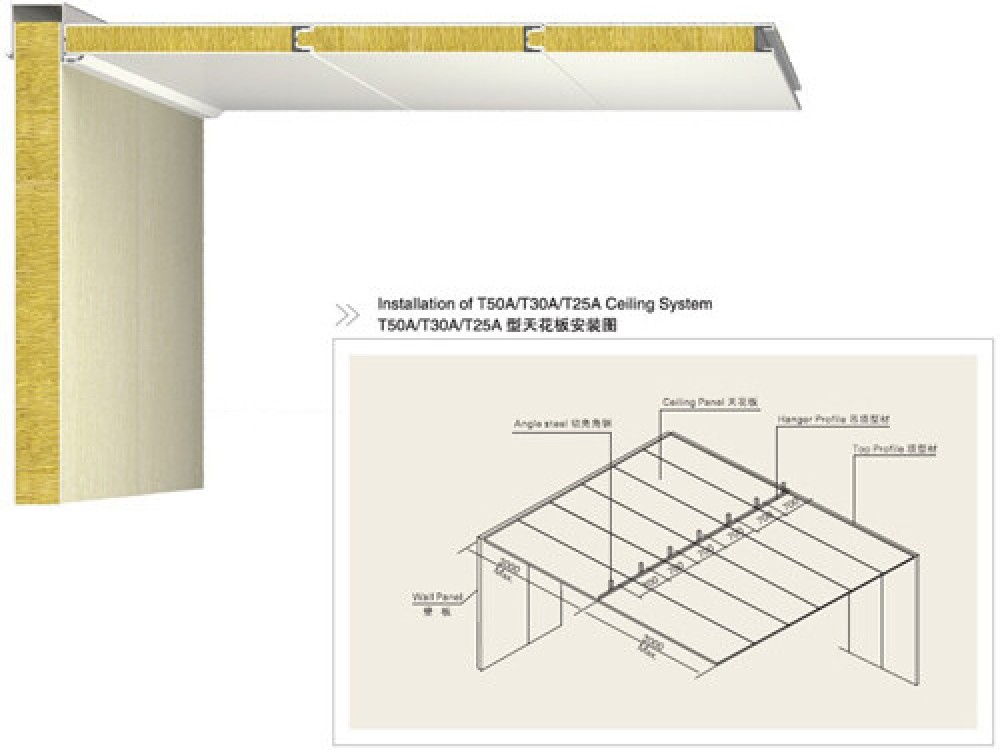

Type A Ceiling Panel
- Category:Ceiling Panel
- Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Ceiling Panel
| Model | Thickness | Fire class | Core material |
| T50A | 50MM | B-15 | rock wool |
| T30A | 30mm | B-15/B-0 | rock wool |
| T25A | 25mm | B-0 | rock wool |
| T25A | 25mm | B-0 | Aluminum honeycomb |
| T30A(Ⅱ) | 30mm | B-15 | rock wool |
| T30AXY | 30mm | B-15 | rock wool |
Type A Ceiling Panel
| Type | T50A | T30A | T25A |
| Fire class | B-15 | B-15/B-0 | B-0 |
| Weight | 16.0kg/m2 | 13.5kg/m2 | 12.9kg/m2 |
| Sound reduction | --dB | --dB | --dB |
| Thermal transmittance | 0.58Kcal/m2h°C | 1.10Kcal/m2h°C | 1.14Kcal/m2h°C |
| Core material | Rock wool 150kg/m3 | ||
| Surface finish | PVC film(150μ,low flame spread) or galvanized steel | ||
| Dimension | 25/30/50mm( t )×550mm( w )×length (max.3000mm) | ||
| Tolerances | Thickness0-1×Width0-1×Length±3 | ||
Advantages
Wide range of section
Convenient Installation
Excellent in fire resistance, heat and sound insulation
